34145 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

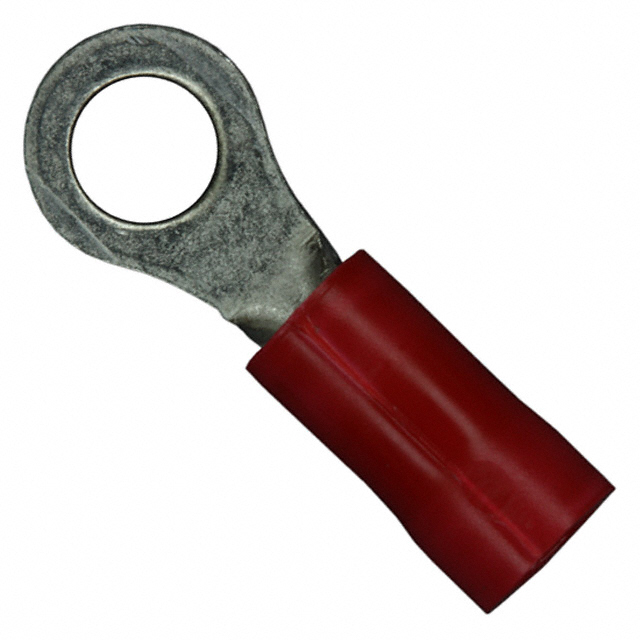

CONN RING CIRC 16-22AWG #8 CRIMP
| Part | Length - Overall [x] | Length - Overall [x] | Features | Thickness | Thickness | Termination | Wire Gauge [Max] | Wire Gauge [Min] | Contact Finish | Mounting Type | Stud/Tab Size | Insulation | Terminal Type | Width - Outer Edges [y] | Width - Outer Edges [y] | Contact Material | Material - Insulation | Color | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | 0.809 in | 20.55 mm | Serrated Termination | 0.031 in | 0.79 mm | Crimp | 22 AWG | 16 AWG | Tin | Free Hanging (In-Line) | 8 Stud | Insulated | Circular | 7.14 mm | 0.281 in | Copper | Poly-Vinyl Chloride (PVC) | Red | 0.14 in | 0.105 in | 3.56 mm | 2.67 mm |
