HUM-900 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RF TXRX MOD ISM<1GHZU.FL SMD

Part	Serial Interfaces	Antenna Type	Current - Transmitting [Max] [x]	Current - Transmitting [Min] [x]	Power - Output	Voltage - Supply [Max]	Voltage - Supply [Min]	Protocol	Modulation	Frequency	Current - Receiving	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Sensitivity	Mounting Type	Package / Case	Current - Transmitting [Max]	Current - Transmitting [Min]	Data Rate	Frequency [Min]	Frequency [Max]

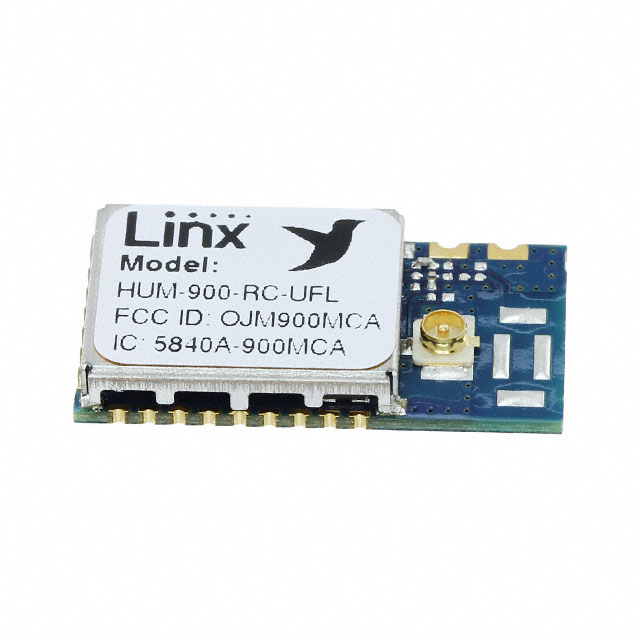

TE Connectivity AMP Connectors HUM-900-RC-UFL	Parallel UART	Antenna Not Included U.FL	36 mA	22 mA	9.5 dBm	3.6 V	2 V	Proprietary	FHSS FSK	900 MHz	25.5 mA	85 °C	-40 C	General ISM < 1GHz	-98 dBm	Surface Mount	27-SMD Module

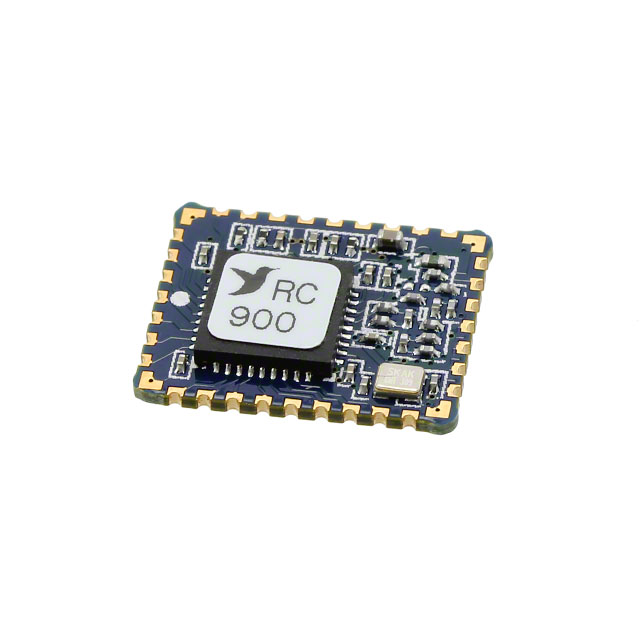

TE Connectivity AMP Connectors HUM-900-RC	Parallel UART	Antenna Not Included Castellation	36 mA	22 mA	9.5 dBm	3.6 V	2 V	Proprietary	FHSS FSK	900 MHz	25.5 mA	85 °C	-40 C	General ISM < 1GHz	-98 dBm	Surface Mount	32-SMD Module

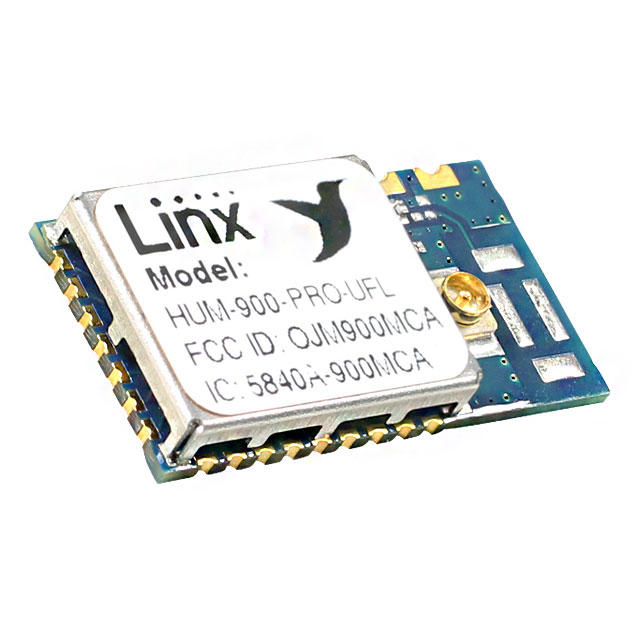

TE Connectivity AMP Connectors HUM-900-PRO-UFL	UART	Antenna Not Included U.FL			9.5 dBm	3.6 V	2 V	Proprietary	FHSS FSK MSK	915 MHz	23.5 mA	85 °C	-40 C	General ISM < 1GHz	-101 dBm	Surface Mount	27-SMD Module	40.5 mA	22 mA	115.2 kbps

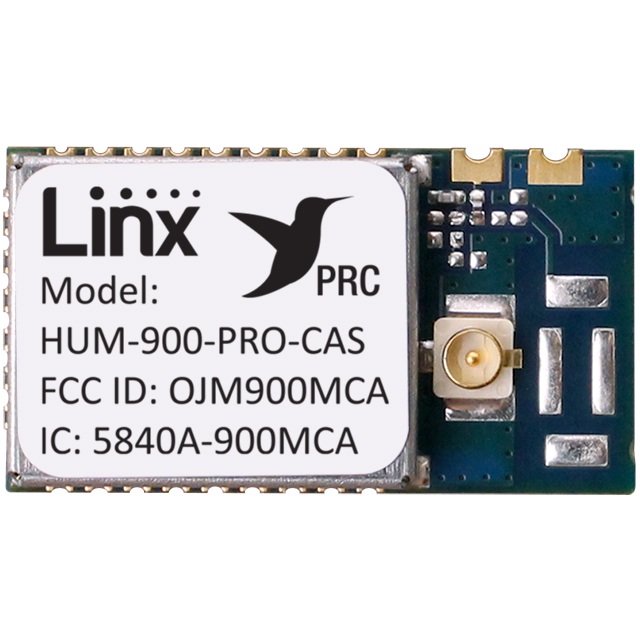

TE Connectivity AMP Connectors HUM-900-PRC-CAS	UART	Antenna Not Included Castellation			9.5 dBm	3.6 V	2 V		FHSS FSK		23.5 mA	85 °C	-40 C	General ISM < 1GHz	-101 dBm	Surface Mount	32-SMD Module	40.5 mA	22 mA	115.2 kbps	902 MHz	928 MHz
TE Connectivity AMP Connectors HUM-900-DT	UART	Antenna Not Included Castellation			9.5 dBm	3.6 V	2 V	Proprietary	FHSS MSK	900 MHz	22 mA	85 °C	-40 C	General ISM < 1GHz	-101 dBm	Surface Mount	32-SMD Module	38 mA	20.5 mA	115.2 kbps

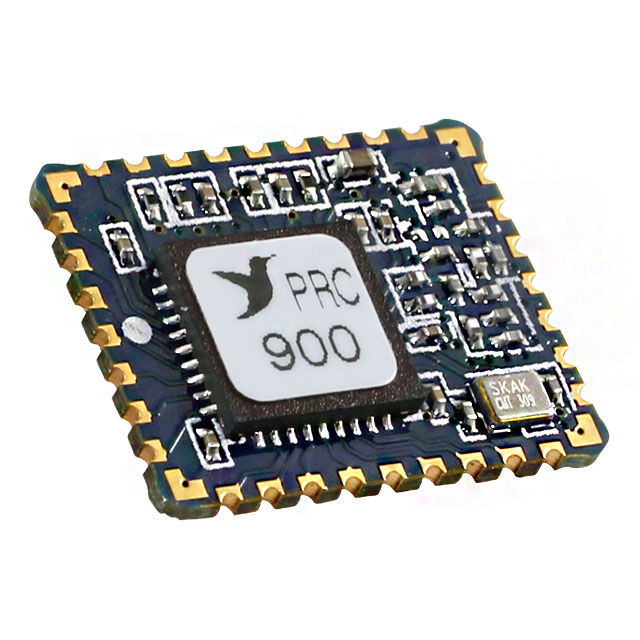

TE Connectivity AMP Connectors HUM-900-PRC	UART	Antenna Not Included Castellation			9.5 dBm	3.6 V	2 V		FHSS FSK		23.5 mA	85 °C	-40 C	General ISM < 1GHz	-101 dBm	Surface Mount	32-SMD Module	40.5 mA	22 mA	115.2 kbps	902 MHz	928 MHz
TE Connectivity AMP Connectors HUM-900-PRO	UART	Antenna Not Included Castellation			9.5 dBm	3.6 V	2 V	Proprietary	FHSS FSK MSK		23.5 mA	85 °C	-40 C	General ISM < 1GHz	-101 dBm	Surface Mount	32-SMD Module	40.5 mA	22 mA	115.2 kbps	902 MHz	928 MHz

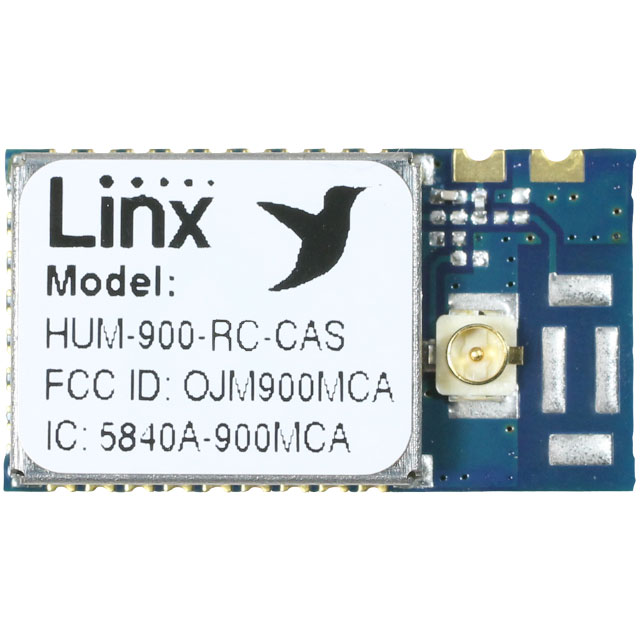

TE Connectivity AMP Connectors HUM-900-RC-CAS	Parallel UART	Antenna Not Included Castellation	36 mA	22 mA	9.5 dBm	3.6 V	2 V	Proprietary	FHSS FSK	900 MHz	25.5 mA	85 °C	-40 C	General ISM < 1GHz	-98 dBm	Surface Mount	27-SMD Module

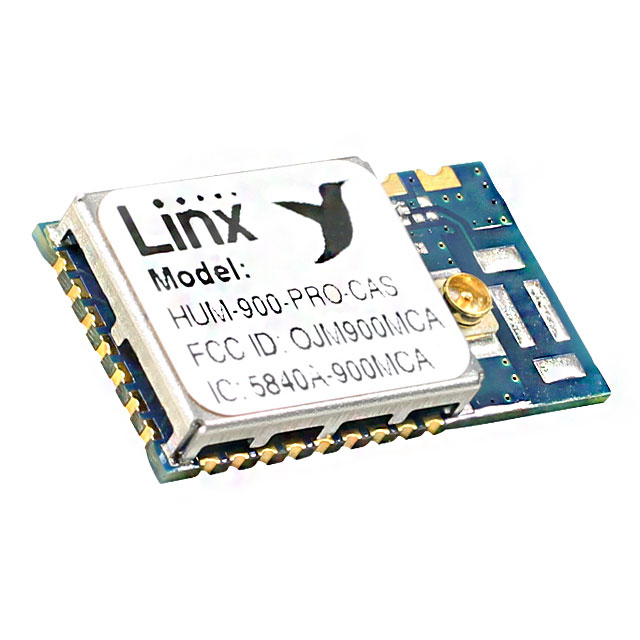

TE Connectivity AMP Connectors HUM-900-PRO-CAS	UART	Antenna Not Included Castellation			9.5 dBm	3.6 V	2 V	Proprietary	FHSS FSK MSK	915 MHz	23.5 mA	85 °C	-40 C	General ISM < 1GHz	-101 dBm	Surface Mount	27-SMD Module	40.5 mA	22 mA	115.2 kbps

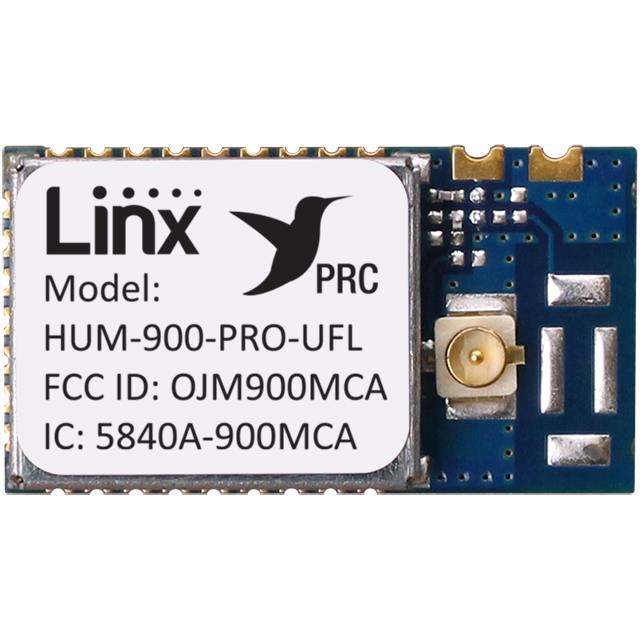

TE Connectivity AMP Connectors HUM-900-PRC-UFL	UART	Antenna Not Included U.FL			9.5 dBm	3.6 V	2 V		FHSS FSK		23.5 mA	85 °C	-40 C	General ISM < 1GHz	-101 dBm	Surface Mount	32-SMD Module	40.5 mA	22 mA	115.2 kbps	902 MHz	928 MHz
