LS352 Series

Catalog

TIGHTLY MATCHED, MONOLITHIC DUAL

Part	Vce Saturation (Max) @ Ib, Ic	Package / Case	Package / Case	Package / Case	Power - Max [Max]	Current - Collector Cutoff (Max) [Max]	Supplier Device Package	Current - Collector (Ic) (Max) [Max]	DC Current Gain (hFE) (Min) @ Ic, Vce [Min]	Frequency - Transition	Transistor Type	Voltage - Collector Emitter Breakdown (Max) [Max]	Operating Temperature	Mounting Type	Current Rating (Amps)	Applications	Voltage - Rated
Linear Integrated Systems, Inc. LS352 SOIC 8L ROHS	500 mV	0.154 in	8-SOIC	3.9 mm	500 mW	200 pA	8-SOIC	10 mA	200	200 MHz	2 PNP (Dual)	60 V	150 °C	Surface Mount
Linear Integrated Systems, Inc. LS352 TO-78 6L	500 mV		TO-78-6 Metal Can		500 mW	200 pA	TO-78-6	10 mA	200	200 MHz	2 PNP (Dual)	60 V	150 °C	Through Hole
Linear Integrated Systems, Inc. LS352SOIC8LTB ROHS		0.154 in	8-SOIC	3.9 mm			8-SOIC				2 PNP (Dual)			Surface Mount	10 mA	General Purpose	60 VDC

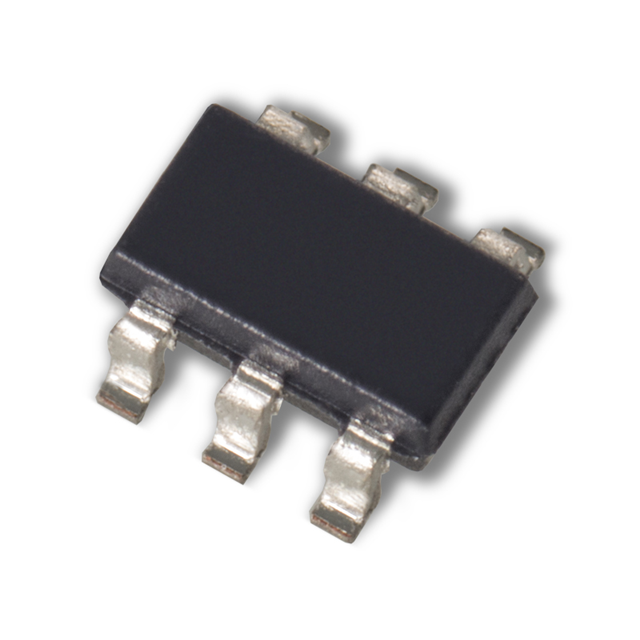

Linear Integrated Systems, Inc. LS352 SOT-23 6L	500 mV		SOT-23-6		500 mW	200 pA	SOT-23-6	10 mA	200	200 MHz	2 PNP (Dual)	60 V	150 °C	Surface Mount
