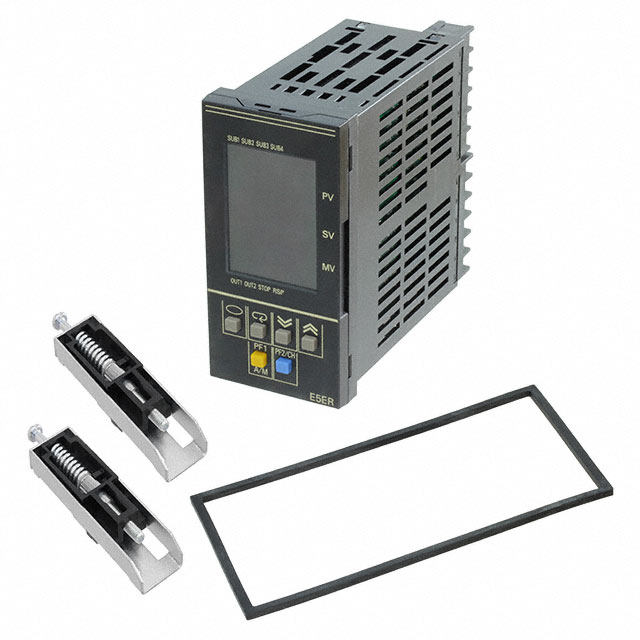

E5ER-C4 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
CONTROL TEMP/PROCESS 100-240V
| Part | Output Type | Panel Cutout Dimensions [x] | Panel Cutout Dimensions [y] | Termination Style | Input Range [Min] | Input Range [Max] | Features | Ingress Protection | Display Characters - Height | Display Characters - Height | Display Type | Control Method | Number of Characters Per Row [custom] | Number of Characters Per Row [custom] | Number of Characters Per Row [custom] | Weight | Weight | Type | Operating Temperature [Max] [custom] | Operating Temperature [Min] [custom] | Voltage - Supply [Min] | Voltage - Supply [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | Analog (2) Relay (4) | 92 mm | 45 mm | Screw Terminal | -328 °F 0 V 0 A | 10 V 20 mA 2300 °C | Event Input | IP66 | 7.2 mm 9.5 mm | 0.283 in 0.374 in | LCD - Tri Color Characters Backlight | On/Off Proportional (PID) | 5 | 3 | 5 | 330.22 g | 0.728 lb | Process Temperature Controller (RTD Type B E J K L N R S T U W) | 55 °C | -10 °C | 100 VAC | 240 VAC |
