A3U-TMW Series

Catalog

SWITCH PUSHBUTTON DPDT 0.1A 30V

Part	Electrical Life	Mechanical Life	Actuator Type	Panel Cutout Dimensions [diameter]	Color - Actuator/Cap	Voltage Rating - DC	Operating Temperature [Min]	Operating Temperature [Max]	Type	Mounting Type	Termination Style	Current Rating (Amps)	Actuator Marking	Circuit	Ingress Protection	Switch Function

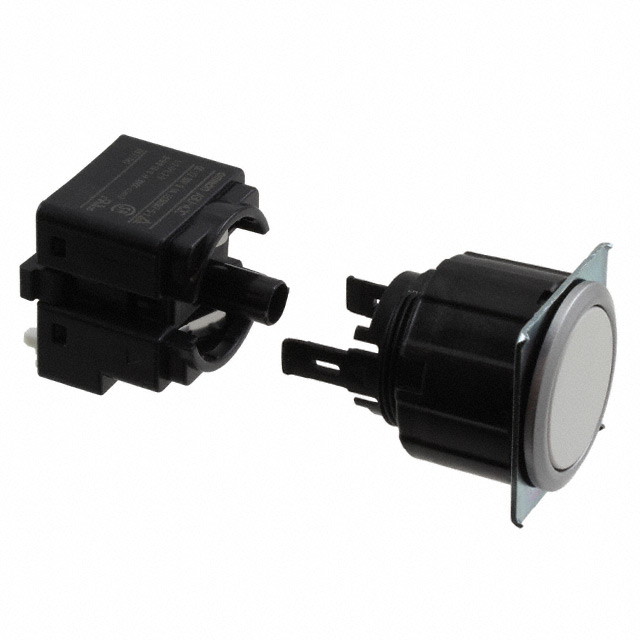

Omron Automation and Safety A3U-TMW-A2C-5M	200000 Cycles	1000000 Cycles	Button Flush Round	25.2 mm	White	30 V	-20 ░C	70 °C	Standard	Panel Mount Front	Connector	100 mA	No Marking	DPDT	IP65	On-Mom
Omron Automation and Safety A3U-TMW-A1C-5M	200000 Cycles	1000000 Cycles	Button Flush Round	25.2 mm	White	30 V	-20 ░C	70 °C	Standard	Panel Mount Front	Connector	100 mA	No Marking	SPDT	IP65	On-Mom

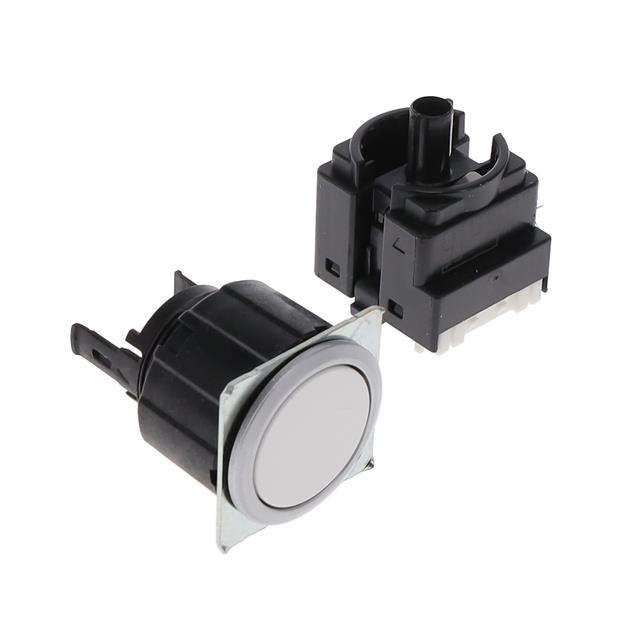

Omron Automation and Safety A3U-TMW-A1C-M	200000 Cycles	1000000 Cycles	Button Flush Round	25.2 mm	White	30 V	-20 ░C	70 °C	Standard	Panel Mount Front	Connector	100 mA	No Marking	SPDT	IP40	On-Mom
