15DYS824 Series
Manufacturer: Ideal Power Ltd.
Beta
⌘K

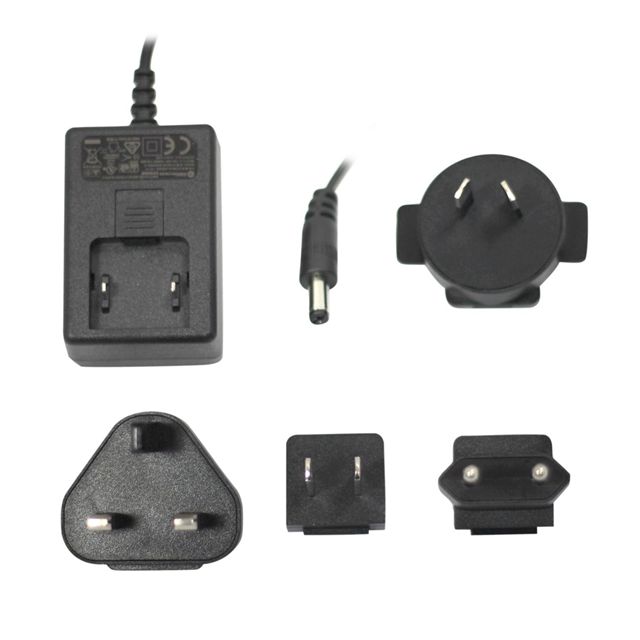

ADAPTER, AC-DC, 30V 0.8A ROHS COMPLIANT: YES
| Part | Input Connector | Applications | Approval Agency | Polarization | Size / Dimension Length | Size / Dimension Width | Size / Dimension Height | Standard Number | Operating Temperature (Max) | Operating Temperature (Min) | Input Type | Output Connector O.D. | Output Connector | Output Connector Length | Output Connector I.D. | Voltage - Output | Voltage - Input (AC) Minimum | Voltage - Input (AC) Maximum | No Load Power Consumption (Max) | Efficiency | Power (Watts) | Form | Region Utilized | Current - Output (Max) | Cord Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Ideal Power Ltd. | Multi-Blade (Included) | ITE (Commercial) | CE GS SAA UL | Positive Center | 3.02 in | 1.87 in | 1.38 in | 60950-1 | 40 °C | 0 °C | Multi-Blade (Included) | 5.5 mm | Barrel Plug | 12 mm | 2.1 mm | 30 V | 90 V | 264 V | 100 mW | 86.2 % | 24 W | Wall Mount (Class II) | International | 800 mA | 59 in |
Ideal Power Ltd. | Multi-Blade (Included) | ITE (Commercial) | CE GS SAA UL | Positive Center | 3.02 in | 1.87 in | 1.38 in | 60950-1 | 40 °C | 0 °C | Multi-Blade (Included) | 5.5 mm | Barrel Plug | 12 mm | 2.1 mm | 24 V | 90 V | 264 V | 100 mW | 86.2 % | 24 W | Wall Mount (Class II) | International | 1 A | 59 in |
