HMC514 Series

VCO SMT with Fo/2 & Divide-by-4, 11.17 - 12.02 GHz

Manufacturer: Analog Devices Inc./Maxim Integrated

Catalog

VCO SMT with Fo/2 & Divide-by-4, 11.17 - 12.02 GHz

Part	Voltage - Supply	Tuning Voltage (VDC) [Max]	Tuning Voltage (VDC) [Min]	Height	Height	Phase Noise Typ (dBc/Hz)	Icc Max [Max]	Power (dBm)	2nd Harmonic, Typ (dBc)	Frequency - Center	Package / Case	Frequency Range [Max]	Frequency Range [Min]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Operating Temperature [Max]	Operating Temperature [Min]	Pushing (MHz/V)	For Use With/Related Products	Supplied Contents	Type	Contents	Utilized IC / Part	Frequency [Min]	Frequency [Max]
Analog Devices Inc./Maxim Integrated HMC514LP5E	3 V	13 V	2 V	1 mm	0.039 in	-110 dBc/Hz	290 mA	-7 dBm 7.5 dBm 8 dBm	17 dBc	5.7975 GHz 11.595 GHz	32-VFQFN Exposed Pad	6.01 GHz 12.02 GHz	5.585 GHz 11.17 GHz	0.197 in	0.197 "	5 mm	5 mm	85 °C	-40 C	18 MHz/V
Analog Devices Inc./Maxim Integrated HMC514LP5ETR	3 V	13 V	2 V	1 mm	0.039 in	-110 dBc/Hz	290 mA	-7 dBm 7.5 dBm 8 dBm	17 dBc	5.7975 GHz 11.595 GHz	32-VFQFN Exposed Pad	6.01 GHz 12.02 GHz	5.585 GHz 11.17 GHz	0.197 in	0.197 "	5 mm	5 mm	85 °C	-40 C	18 MHz/V

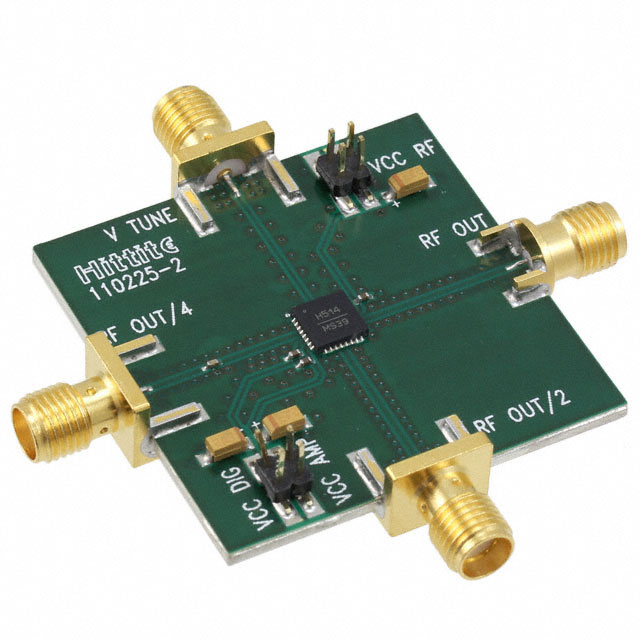

Analog Devices Inc./Maxim Integrated 110227-HMC514LP5																					HMC514LP5	Board(s)	Voltage Controlled Oscillator (VCO)	Board(s)	HMC514LP5	11.17 GHz	12.02 GHz

Catalog

VCO SMT with Fo/2 & Divide-by-4, 11.17 - 12.02 GHz

Description

The HMC514LP5(E) is a GaAs InGaP Heterojunction Bipolar Transistor (HBT) MMIC VCO. The HMC514LP5(E) integrates resonators, negative resistance devices, varactor diodes and feature half frequency and divide-by-4 outputs. The VCO’s phase noise performance is excellent over temperature, shock, and process due to the oscillator’s monolithic structure. Power output is +7 dBm typical from a +3V supply voltage. The prescaler function can be disabled to conserve current if not required. The voltage controlled oscillator is packaged in a leadless QFN 5x5 mm surface mount package, and requires no external matching components.APPLICATIONSVSAT RadioPoint-to-Point/Multi-Point RadioTest Equipment & Industrial ControlsMilitary End-Use
