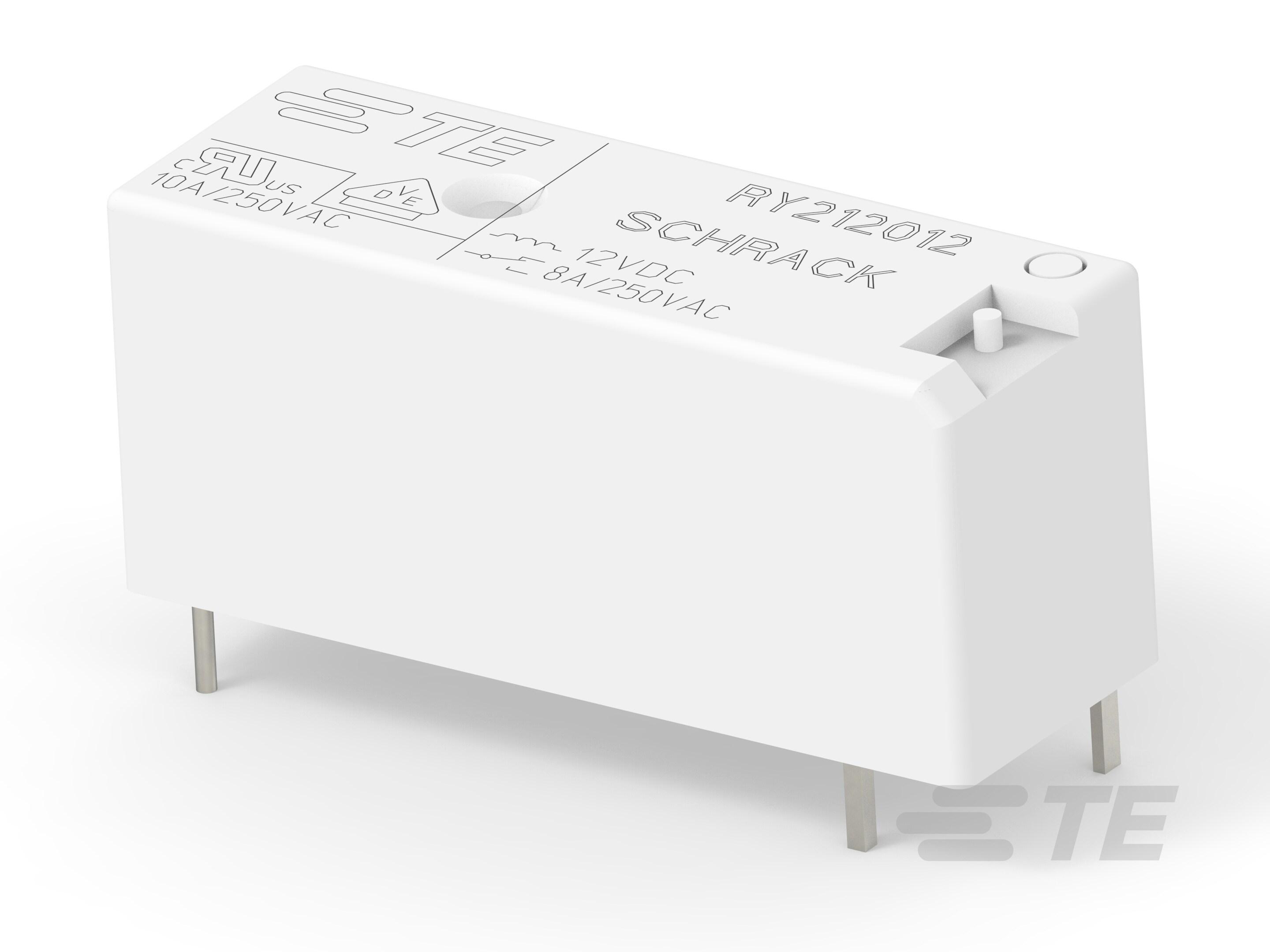

RY2120 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
RELAY GEN PURPOSE SPDT 8A 12V
| Part | Coil Resistance | Relay Type | Contact Rating (Current) | Must Release Voltage | Coil Current | Must Operate Voltage | Termination Style | Coil Voltage | Operate Time | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Contact Material | Coil Type | Load - Max Switching | Contact Form | Release Time | Switching Voltage [Max] | Approval Agency | Seal Rating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 627 Ohms | General Purpose | 8 A | 1.2 VDC | 19.2 mA | 8.4 VDC | PC Pin | 12 VDC | 9 ms | Through Hole | 70 °C | -40 C | Silver Nickel (AgNi) | Non Latching | 3200 VA | SPDT (1 Form C) | 5 ms | 400 VAC | cURus VDE | Sealed - Flux Protection |
 TE Connectivity AMP Connectors | General Purpose | 8 A | 1.5 VDC | 10.5 VDC | PC Pin | 15 VDC | 9 ms | Through Hole | 70 °C | -40 C | Silver Nickel (AgNi) | Non Latching | 3200 VA | SPDT (1 Form C) | 5 ms | 400 VAC | cURus VDE | Sealed - Flux Protection |
