TBL004 Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
TERMINAL BLOCK, SCREWLESS, 5.08,
| Part | Contact Material - Plating | Operating Temperature [Min] | Operating Temperature [Max] | Mating Orientation | Mounting Type | Features | Positions Per Level | Voltage | Wire Termination | Number of Levels | Pitch | Pitch | Wire Gauge [Max] | Wire Gauge [Min] | Color | Current |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

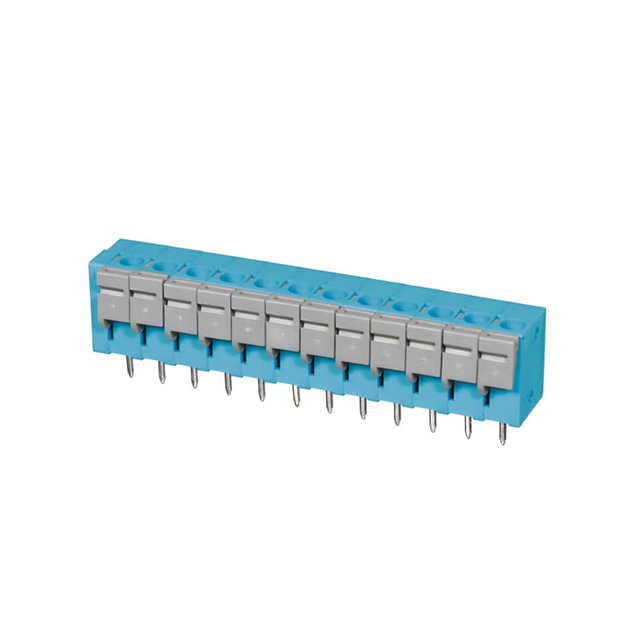

 Same Sky (Formerly CUI Devices) | Copper Alloy - Tin Plated | -40 C | 105 ░C | Vertical with Board | Through Hole | Interlocking (Side) Push Button Actuated | 12 | 300 VDC | Screwless - Push Button Clamp | 1 | 5.08 mm | 0.2 in | 24 AWG | 14 AWG | Blue | 10 A |

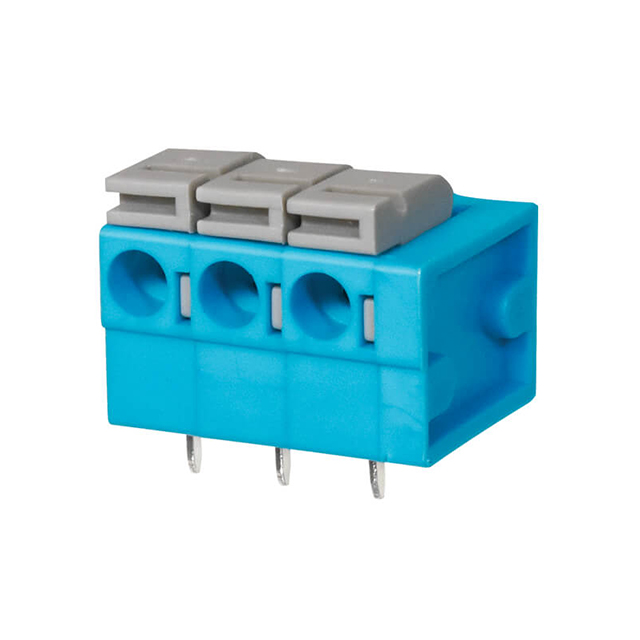

 Same Sky (Formerly CUI Devices) | Copper Alloy - Tin Plated | -40 C | 105 ░C | Horizontal with Board | Through Hole | Interlocking (Side) Push Button Actuated | 3 | 300 VDC | Screwless - Push Button Clamp | 1 | 5.08 mm | 0.2 in | 24 AWG | 14 AWG | Blue | 10 A |
 Same Sky (Formerly CUI Devices) | Copper Alloy - Tin Plated | -40 C | 105 ░C | Vertical with Board | Through Hole | Interlocking (Side) Push Button Actuated | 13 | 300 VDC | Screwless - Push Button Clamp | 1 | 5.08 mm | 0.2 in | 24 AWG | 14 AWG | Blue | 10 A |
