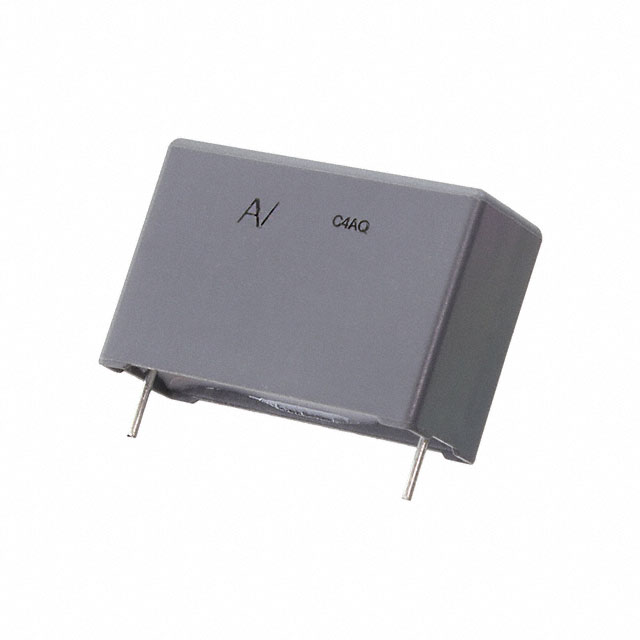

C4AQIL Series

Manufacturer: KEMET

Catalog

CAP FILM 7.5UF 5% 800VDC RADIAL

Part	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Package / Case	Termination	Tolerance	Operating Temperature [Min]	Operating Temperature [Max]	Applications	Features	Capacitance	Voltage Rating - DC	Lead Spacing	Lead Spacing	ESR (Equivalent Series Resistance)	Mounting Type	Dielectric Material	Ratings	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET C4AQILU4750M19J	19.2 mm	0.756 in	Radial	PC Pins	5 %	-55 C	105 ░C	Automotive DC Filtering DC Link	Low ESL	7.5 µF	800 V	27.5 mm	1.083 in	7.3 mOhms	Through Hole	Polypropylene (PP) Metallized	AEC-Q200
KEMET C4AQILW5220A38J	25.2 mm	0.992 in	Radial - 4 Leads	PC Pins	5 %	-55 C	105 ░C	Automotive DC Filtering DC Link		22 µF	800 V	37.5 mm	1.476 in	4.3 mOhm	Through Hole	Polypropylene (PP) Metallized	AEC-Q200	43 mm	1.693 "	42 mm	1.654 in
KEMET C4AQILU4270M11J			Radial	PC Pins	5 %	-55 C	105 ░C	Automotive DC Filtering DC Link	Low ESL	2.7 µF	800 V	27.5 mm	1.083 in	18 mOhms	Through Hole	Polypropylene (PP) Metallized	AEC-Q200	21 mm	0.827 in	32 mm	1.26 in	0.5 in	12.7 mm
KEMET C4AQILW5220M38J	25.2 mm	0.992 in	Radial - 4 Leads	PC Pins	5 %	-55 C	105 ░C	Automotive DC Filtering DC Link	Low ESL	22 µF	800 V	37.5 mm	1.476 in	4.3 mOhm	Through Hole	Polypropylene (PP) Metallized	AEC-Q200	43 mm	1.693 "	42 mm	1.654 in
KEMET C4AQILW5160M36J			Radial - 4 Leads	PC Pins	5 %	-55 C	105 ░C	Automotive DC Filtering DC Link	Low ESL	16 µF	800 V	37.5 mm	1.476 in	5.8 mOhms	Through Hole	Polypropylene (PP) Metallized	AEC-Q200	35 mm	1.378 in	42 mm	1.654 in	0.953 in		24.2 mm
KEMET C4AQILW4600M34J			Radial - 4 Leads	PC Pins	5 %	-55 C	105 ░C	Automotive DC Filtering DC Link	Low ESL	6 µF	800 V	37.5 mm	1.476 in	15.1 mOhms	Through Hole	Polypropylene (PP) Metallized	AEC-Q200		0.945 " 24 mm		1.634 in 41.5 mm	0.598 in	15.2 mm
KEMET C4AQILW4800A33J	19.2 mm	0.756 in	Radial - 4 Leads	PC Pins	5 %	-55 C	105 ░C	Automotive DC Filtering DC Link		8 µF	800 V	37.5 mm	1.476 in	11.4 mOhms	Through Hole	Polypropylene (PP) Metallized	AEC-Q200		0.945 " 24 mm		1.634 in 41.5 mm
KEMET C4AQILU4380A12J			Radial	PC Pins	5 %	-55 C	105 ░C	Automotive DC Filtering DC Link		3.8 µF	800 V	27.5 mm	1.083 in	13.2 mOhms	Through Hole	Polypropylene (PP) Metallized	AEC-Q200	24 mm	0.945 "	32 mm	1.26 in	0.598 in	15.2 mm
KEMET C4AQILW4800M33J	19.2 mm	0.756 in	Radial - 4 Leads	PC Pins	5 %	-55 C	105 ░C	Automotive DC Filtering DC Link	Low ESL	8 µF	800 V	37.5 mm	1.476 in	11.4 mOhms	Through Hole	Polypropylene (PP) Metallized	AEC-Q200		0.945 " 24 mm		1.634 in 41.5 mm
KEMET C4AQILU4380M12J			Radial	PC Pins	5 %	-55 C	105 ░C	Automotive DC Filtering DC Link	Low ESL	3.8 µF	800 V	27.5 mm	1.083 in	13.2 mOhms	Through Hole	Polypropylene (PP) Metallized	AEC-Q200	24 mm	0.945 "	32 mm	1.26 in	0.598 in	15.2 mm
