MS3106A28 Series

Manufacturer: Amphenol Aerospace Operations

Catalog

MIL-5015 MS/AC THREADED PLUG

Part	Applications	Primary Material	Fastening Type	Mounting Type	Color	Insert Material	Contact Material	Shell Size - Insert Length	Shell Size - Insert Width	Shell Material	Connector Type	Orientation	Shielding	Qualification	Voltage Rating (DC)	Voltage Rating (AC)	Features	Current Rating Options	Ingress Protection	Termination	Operating Temperature (Max)	Operating Temperature (Min)	Number of Positions	Contact Finish - Mating	Grade	Shell Finish	Current Rating	Backshell Material	Plating
Amphenol Aerospace Operations MS3106A28-2S	Marine Military	Metal	Threaded	Free Hanging (In-Line)	Olive Drab	Neoprene	Copper Alloy	28 mm	2 mm	Aluminum Alloy	Female Sockets Plug	N (Normal)	Unshielded	MIL-DTL-5015	1250 VDC	900 VAC	Backshell Coupling Nut	13A 23A	Environment Resistant	Solder Cup	125 °C	-55 °C	14	Silver	Military	Cadmium Olive Drab Chromate
Amphenol Aerospace Operations MS3106A28-7S
Amphenol Aerospace Operations MS3106A28-11S-RES
Amphenol Aerospace Operations MS3106A28-16SX
Amphenol Aerospace Operations MS3106A28-18P	Marine Military	Metal	Threaded	Free Hanging (In-Line)	Olive Drab	Neoprene	Copper Alloy	28 mm	18 mm	Aluminum Alloy	Male Pins Plug	N (Normal)	Unshielded	MIL-DTL-5015			Backshell Coupling Nut		Environment Resistant	Solder Cup	125 °C	-55 °C	12	Silver	Military	Cadmium Olive Drab Chromate	13 A
Amphenol Aerospace Operations MS3106A28-16P	Marine Military	Metal	Threaded	Free Hanging (In-Line)	Olive Drab	Neoprene	Copper Alloy	28 mm	16 mm	Aluminum Alloy	Male Pins Plug	N (Normal)	Unshielded	MIL-DTL-5015			Backshell Coupling Nut			Solder Cup	125 °C	-55 °C	20	Silver		Cadmium Olive Drab Chromate		Aluminum Alloy	Olive Drab Chromate over Cadmium
Amphenol Aerospace Operations MS3106A28-22P	Marine Military	Metal	Threaded	Free Hanging (In-Line)	Olive Drab	Neoprene	Copper Alloy	28 mm	22 mm	Aluminum Alloy	Male Pins Plug	N (Normal)	Unshielded	MIL-DTL-5015	1250 VDC	900 VAC	Backshell Coupling Nut	13A 80A	Environment Resistant	Solder Cup	125 °C	-55 °C	6	Silver	Military	Cadmium Olive Drab Chromate

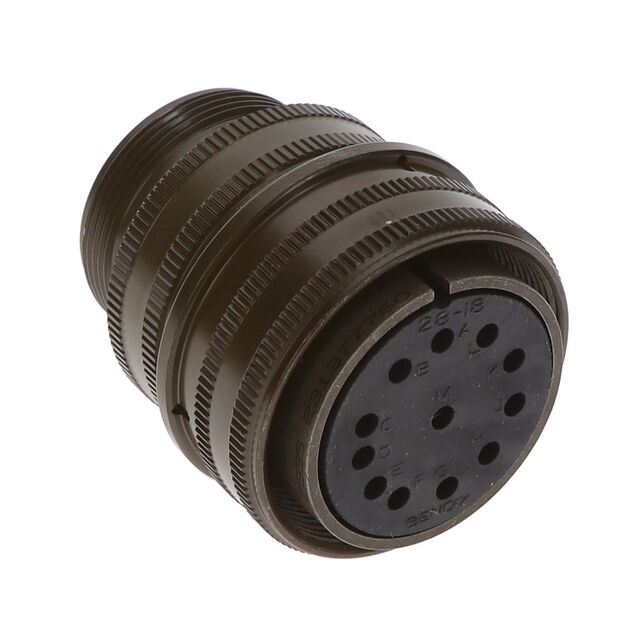

Amphenol Aerospace Operations MS3106A28-18S	Marine Military	Metal	Threaded	Free Hanging (In-Line)	Olive Drab	Neoprene	Copper Alloy	28 mm	18 mm	Aluminum Alloy	Female Sockets Plug	N (Normal)	Unshielded	MIL-DTL-5015			Backshell Coupling Nut		Environment Resistant	Solder Cup	125 °C	-55 °C	12	Silver	Military	Cadmium Olive Drab Chromate	13 A
Amphenol Aerospace Operations MS3106A28-22S
Amphenol Aerospace Operations MS3106A28-9S	Marine Military	Metal	Threaded	Free Hanging (In-Line)	Olive Drab	Neoprene	Copper Alloy	28 mm	9 mm	Aluminum Alloy	Female Sockets Plug	N (Normal)	Unshielded	MIL-DTL-5015	1250 VDC	900 VAC	Backshell Coupling Nut	13A 23A	Environment Resistant	Solder Cup	125 °C	-55 °C	12	Silver	Military	Cadmium Olive Drab Chromate
