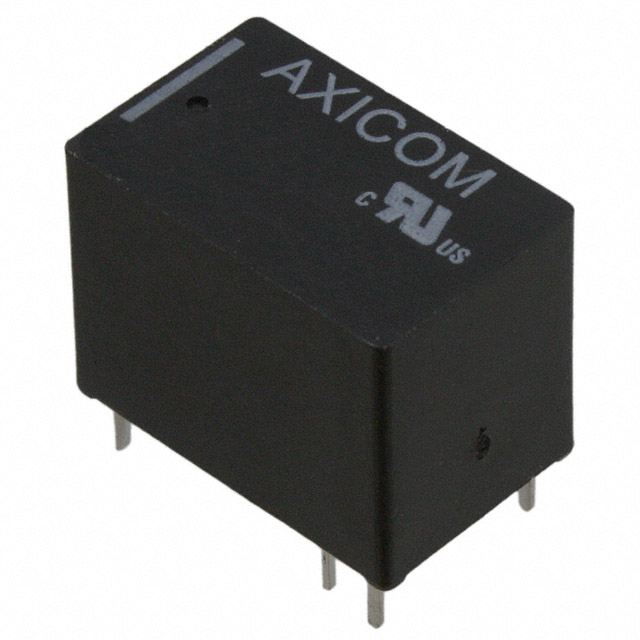

V23101 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

RELAY GEN PURP SPDT 1.25A 1.5V

Part	Coil Resistance	Coil Type	Must Operate Voltage	Contact Rating (Current)	Coil Voltage	Operating Temperature [Max]	Operating Temperature [Min]	Operate Time	Coil Current	Load - Max Switching	Switching Voltage	Mounting Type	Must Release Voltage	Relay Type	Release Time	Termination Style	Contact Form	Contact Material
TE Connectivity AMP Connectors V23101D 1A201	6 Ohms	Non Latching	1.3 VDC	1.25 A	1.5 VDC	85 °C	-40 C	7 ms	250 mA	30 W 62.5 VA	120 VDC 125 VAC	Through Hole	0.15 VDC	General Purpose	5 ms	PC Pin	SPDT (1 Form C)	Gold (Au) Silver Palladium (AgPd)
TE Connectivity AMP Connectors V23101D 4B201	80 Ohms	Non Latching	4.2 VDC	1.25 A		85 °C	-40 C	7 ms	0.075 A	30 W 62.5 VA	120 VDC 125 VAC	Through Hole	0.6 VDC	General Purpose	5 ms	PC Pin	SPDT (1 Form C)	Gold (Au) Silver Palladium (AgPd)
TE Connectivity AMP Connectors V23101D 3B301	56 Ohms	Non Latching	3.5 VDC	3 A	5 VDC	85 °C	-40 C	7 ms	89.2 mA	360 W 375 VA	120 VDC 125 VAC	Through Hole	0.5 VDC	General Purpose	5 ms	PC Pin	SPDT (1 Form C)	Silver Nickel (AgNi)
TE Connectivity AMP Connectors V23101D 106B301	700 Ohms	Non Latching	9 VDC	3 A	12 VDC	85 °C	-40 C	7 ms	17.2 mA	360 W 375 VA	120 VDC 125 VAC	Through Hole	1.2 VDC	General Purpose	5 ms	PC Pin	SPDT (1 Form C)	Silver Nickel (AgNi)
TE Connectivity AMP Connectors V23101D 6A201	320 Ohms	Non Latching	8.4 VDC	1.25 A	12 VDC	85 °C	-40 C	7 ms	0.0375 A	30 W 62.5 VA	120 VDC 125 VAC	Through Hole	1.2 VDC	General Purpose	5 ms	PC Pin	SPDT (1 Form C)	Gold (Au) Silver Palladium (AgPd)
TE Connectivity AMP Connectors V23101D 102B201	45 Ohms	Non Latching	2.3 VDC	1.25 A		85 °C	-40 C	7 ms	66.7 mA	30 W 62.5 VA	120 VDC 125 VAC	Through Hole	0.3 VDC	General Purpose	5 ms	PC Pin	SPDT (1 Form C)	Gold (Au) Silver Palladium (AgPd)
TE Connectivity AMP Connectors V23101D 6B201	320 Ohms	Non Latching	8.4 VDC	1.25 A	12 VDC	85 °C	-40 C	7 ms	0.0375 A	30 W 62.5 VA	120 VDC 125 VAC	Through Hole	1.2 VDC	General Purpose	5 ms	PC Pin	SPDT (1 Form C)	Gold (Au) Silver Palladium (AgPd)
TE Connectivity AMP Connectors V23101D 103B201	120 Ohms	Non Latching	3.8 VDC	1.25 A	5 VDC	85 °C	-40 C	7 ms	41.6 mA	30 W 62.5 VA	120 VDC 125 VAC	Through Hole	0.5 VDC	General Purpose	5 ms	PC Pin	SPDT (1 Form C)	Gold (Au) Silver Palladium (AgPd)
TE Connectivity AMP Connectors V23101D 104A201	180 Ohms	Non Latching	4.5 VDC	1.25 A		85 °C	-40 C	7 ms	33.3 mA	30 W 62.5 VA	120 VDC 125 VAC	Through Hole	0.6 VDC	General Purpose	5 ms	PC Pin	SPDT (1 Form C)	Gold (Au) Silver Palladium (AgPd)
TE Connectivity AMP Connectors V23101D1107A201		Non Latching	18 VDC	1.25 A	24 VDC	85 °C	-40 C	7 ms	8.6 mA	30 W 62.5 VA	120 VDC 125 VAC	Through Hole	2.4 VDC	General Purpose	5 ms	PC Pin	SPDT (1 Form C)	Gold (Au) Silver Palladium (AgPd)
