PCA9698 Series
Manufacturer: Freescale Semiconductor - NXP
Beta
⌘K
PCA9698 - 40-BIT FM+ I2C-BUS ADVANCED I/O PORT WITH RESET, OE AND INT TSSOP 56-PIN
| Part | Number of I/O | Supplier Device Package | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Features | Package / Case | Package / Case | Package / Case | Interrupt Output | Interface | Current - Output Source/Sink [custom] | Current - Output Source/Sink [custom] | Voltage - Supply [Min] | Voltage - Supply [Max] | Output Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

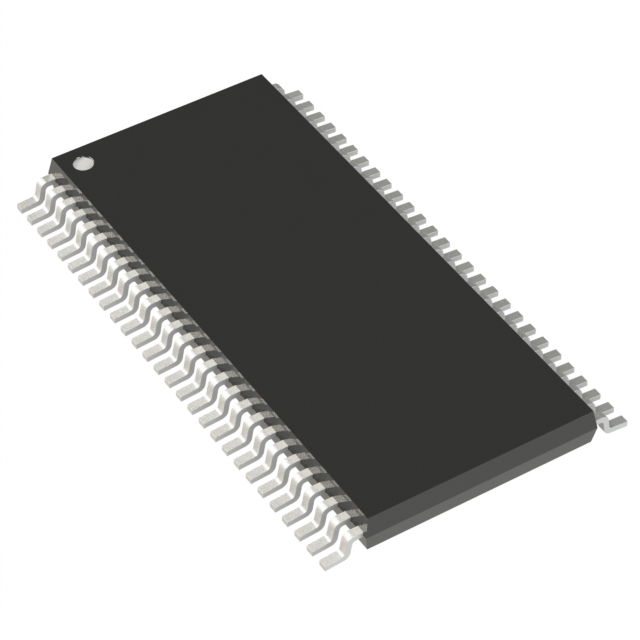

 Freescale Semiconductor - NXP | 40 | 56-TSSOP | 85 °C | -40 °C | Surface Mount | POR | 6.1 mm | 0.24 in | 56-TFSOP | I2C | 10 mA | 25 mA | 2.3 V | 5.5 V | Open Drain | |

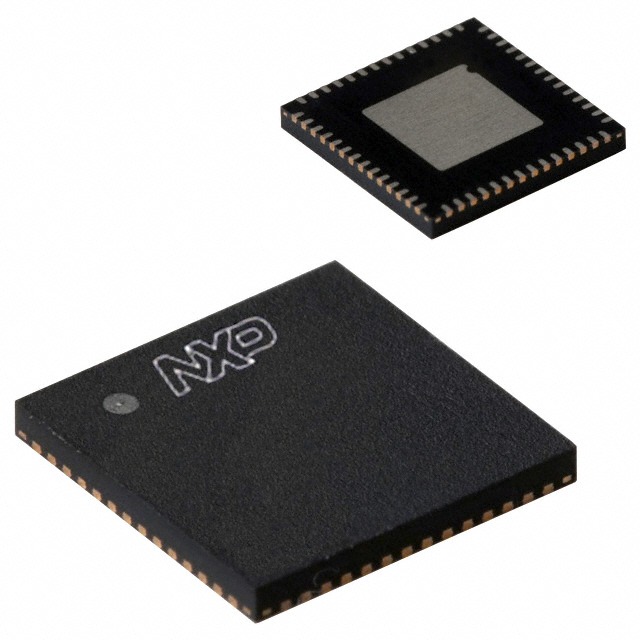

 Freescale Semiconductor - NXP | 40 | 56-HVQFN (8x8) | 85 °C | -40 °C | Surface Mount | POR | 56-VFQFN Exposed Pad | I2C | 10 mA | 25 mA | 2.3 V | 5.5 V | Open Drain |
