PBC03 Series

Manufacturer: Sullins Connector Solutions

Catalog

CONN HEADER VERT 3POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Style	Overall Contact Length	Overall Contact Length	Contact Type	Fastening Type	Contact Length - Post	Contact Length - Post	Material Flammability Rating	Insulation Color	Contact Length - Mating	Contact Length - Mating	Insulation Height	Insulation Height	Number of Rows	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Shrouding	Mounting Type	Contact Finish - Post	Contact Material	Contact Finish - Mating	Termination	Contact Shape	Current Rating (Amps)	Pitch - Mating	Pitch - Mating	Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Positions	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height [z]	Insulation Height [z]

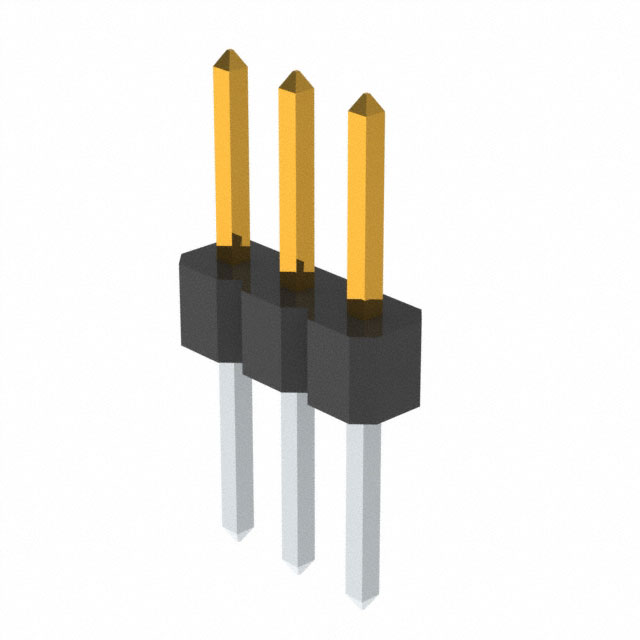

Sullins Connector Solutions PBC03SABN	2.54 µm	100 µin	Board to Board Cable	0.56 in	14.22 mm	Male Pin	Push-Pull	5.84 mm	0.23 "	UL94 V-0	Black	0.23 in	5.84 mm	0.1 in	2.54 mm	1	0.25 µm	10 µin	Header Breakaway	Unshrouded	Through Hole	Tin	Phosphor Bronze	Gold	Solder	Square	3 A	0.1 "	2.54 mm	All	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)

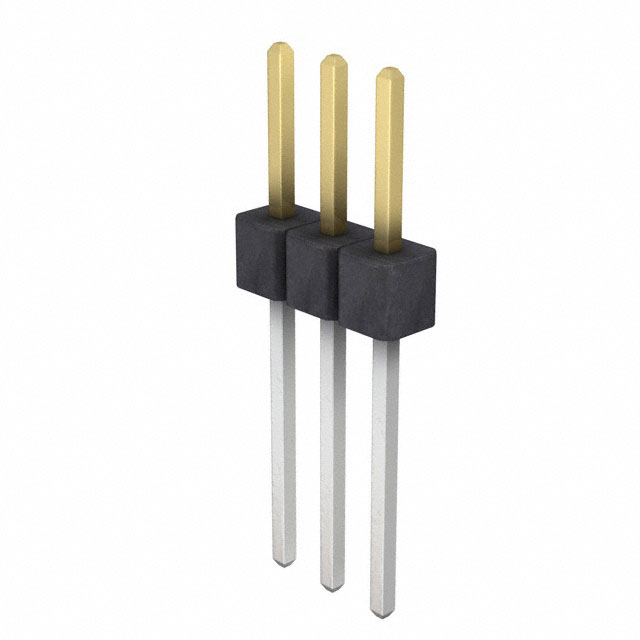

Sullins Connector Solutions PBC03SACN	2.54 µm	100 µin	Board to Board Cable	0.65 in	16.51 mm	Male Pin	Push-Pull	8.13 mm	0.32 in	UL94 V-0	Black	0.23 in	5.84 mm	0.1 in	2.54 mm	1	0.25 µm	10 µin	Header Breakaway	Unshrouded	Through Hole	Tin	Phosphor Bronze	Gold	Solder	Square	3 A	0.1 "	2.54 mm	All	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)

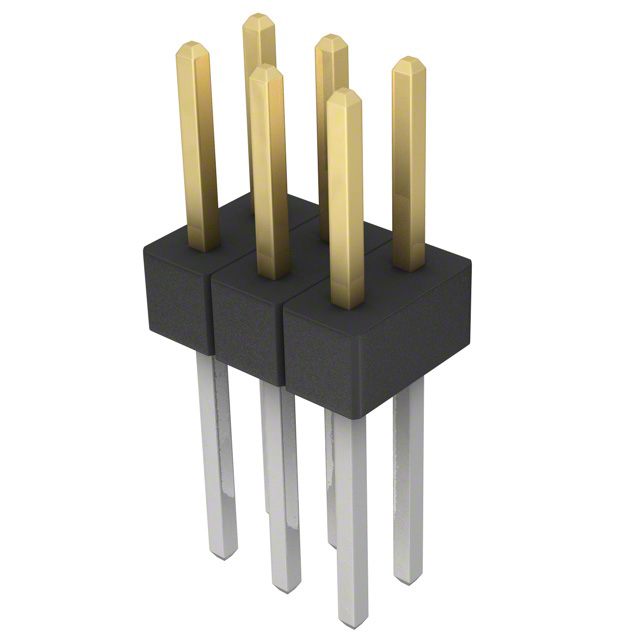

Sullins Connector Solutions PBC03DACN	2.54 µm	100 µin	Board to Board Cable	0.65 in	16.51 mm	Male Pin	Push-Pull	8.13 mm	0.32 in	UL94 V-0	Black	0.23 in	5.84 mm	0.1 in	2.54 mm		0.25 µm	10 µin	Header Breakaway	Unshrouded	Through Hole	Tin	Phosphor Bronze	Gold	Solder	Square	3 A	0.1 "	2.54 mm	All	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	6	0.1 in	2.54 mm	2

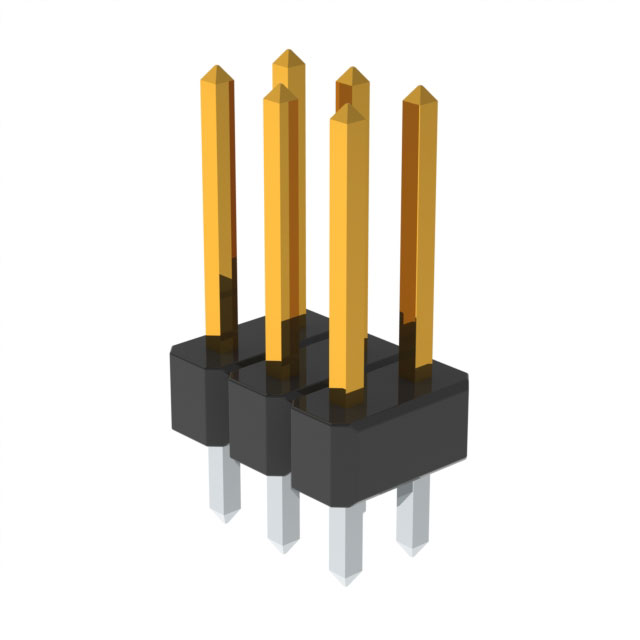

Sullins Connector Solutions PBC03DFAN	2.54 µm	100 µin	Board to Board Cable			Male Pin	Push-Pull	3.05 mm	0.12 in	UL94 V-0	Black	0.318 in	8.08 mm	0.1 in	2.54 mm		0.25 µm	10 µin	Header Breakaway	Unshrouded	Through Hole	Tin	Phosphor Bronze	Gold	Solder	Square	3 A	0.1 "	2.54 mm	All	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	6	0.1 in	2.54 mm	2	13.67 mm	0.538 in

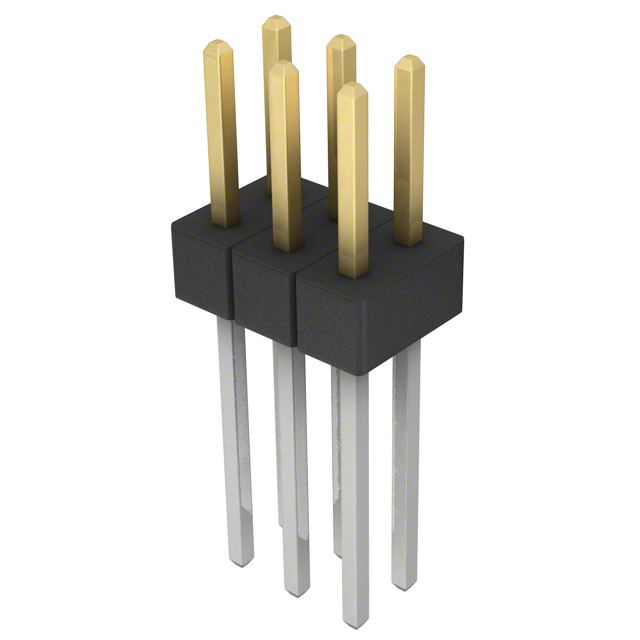

Sullins Connector Solutions PBC03DADN	2.54 µm	100 µin	Board to Board Cable			Male Pin	Push-Pull	10.67 mm	0.42 in	UL94 V-0	Black	0.23 in	5.84 mm	0.1 in	2.54 mm		0.25 µm	10 µin	Header Breakaway	Unshrouded	Through Hole	Tin	Phosphor Bronze	Gold	Solder	Square	3 A	0.1 "	2.54 mm	All	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	6	0.1 in	2.54 mm	2	19.05 mm	0.75 in

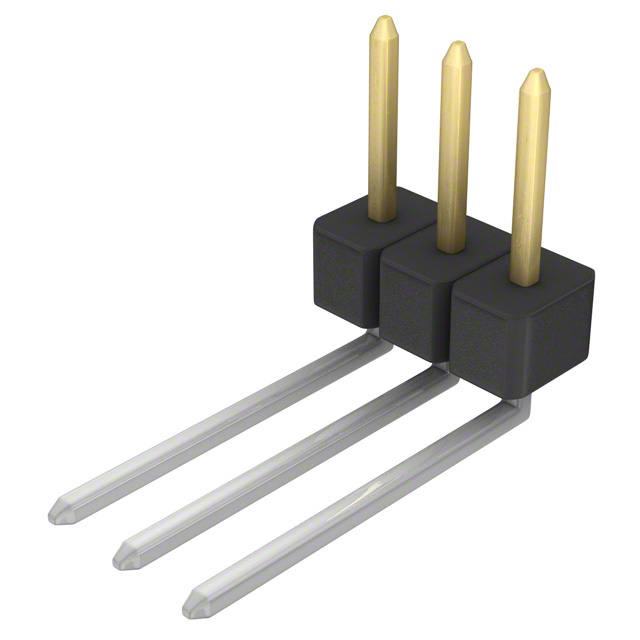

Sullins Connector Solutions PBC03SBDN	2.54 µm	100 µin	Board to Board Cable			Male Pin	Push-Pull	10.16 mm	0.4 in	UL94 V-0	Black	0.23 in	5.84 mm	0.14 in	3.56 mm	1	0.25 µm	10 µin	Header Breakaway	Unshrouded	Right Angle Through Hole	Tin	Phosphor Bronze	Gold	Solder	Square	3 A	0.1 "	2.54 mm	All	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)

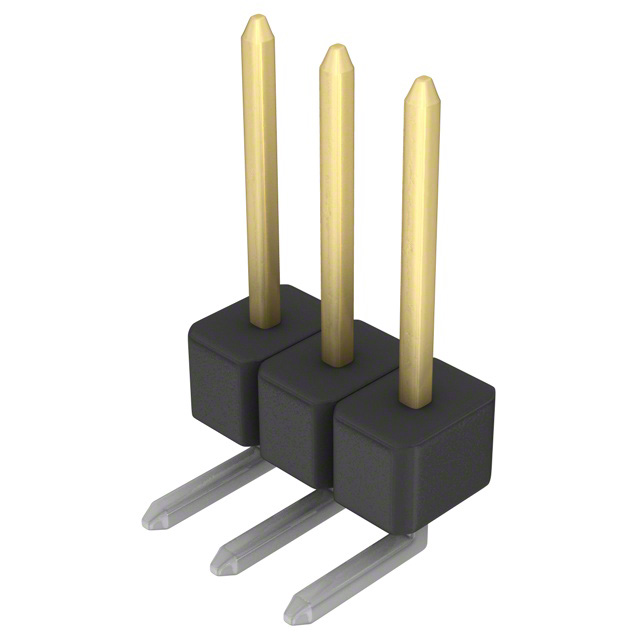

Sullins Connector Solutions PBC03SGAN	2.54 µm	100 µin	Board to Board Cable			Male Pin	Push-Pull	2.54 mm	0.1 in	UL94 V-0	Black	0.318 in	8.08 mm	0.14 in	3.56 mm	1	0.25 µm	10 µin	Header Breakaway	Unshrouded	Right Angle Through Hole	Tin	Phosphor Bronze	Gold	Solder	Square	3 A	0.1 "	2.54 mm	All	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)
Sullins Connector Solutions PBC03SADN	2.54 µm	100 µin	Board to Board Cable			Male Pin	Push-Pull	10.67 mm	0.42 in	UL94 V-0	Black	0.23 in	5.84 mm	0.1 in	2.54 mm	1	0.25 µm	10 µin	Header Breakaway	Unshrouded	Through Hole	Tin	Phosphor Bronze	Gold	Solder	Square	3 A	0.1 "	2.54 mm	All	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)					19.05 mm	0.75 in

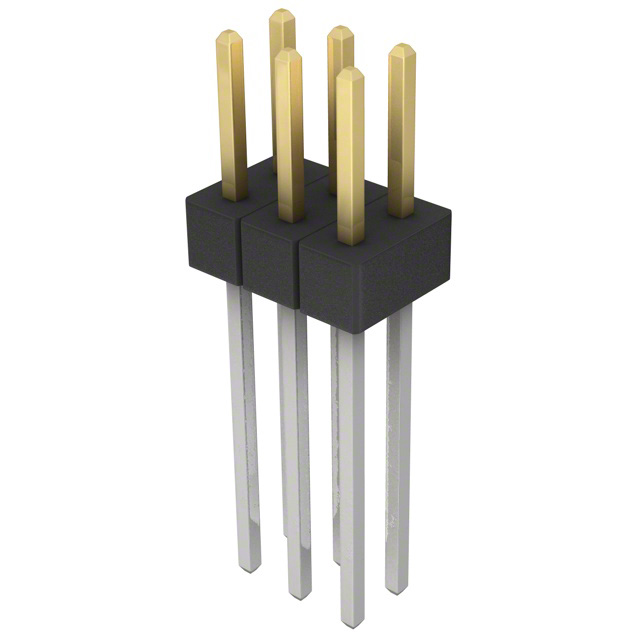

Sullins Connector Solutions PBC03DAEN	2.54 µm	100 µin	Board to Board Cable	0.85 in	21.59 mm	Male Pin	Push-Pull	13.21 mm	0.52 in	UL94 V-0	Black	0.23 in	5.84 mm	0.1 in	2.54 mm		0.25 µm	10 µin	Header Breakaway	Unshrouded	Through Hole	Tin	Phosphor Bronze	Gold	Solder	Square	3 A	0.1 "	2.54 mm	All	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	6	0.1 in	2.54 mm	2

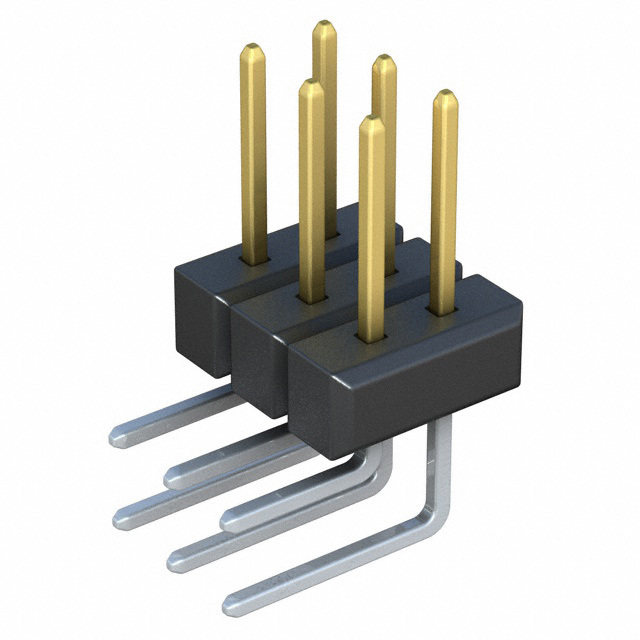

Sullins Connector Solutions PBC03DBAN	2.54 µm	100 µin	Board to Board Cable			Male Pin	Push-Pull	2.54 mm	0.1 in	UL94 V-0	Black	0.23 in	5.84 mm				0.25 µm	10 µin	Header Breakaway	Unshrouded	Right Angle Through Hole	Tin	Phosphor Bronze	Gold	Solder	Square	3 A	0.1 "	2.54 mm	All	-65 ░C	125 °C	Polybutylene Terephthalate (PBT)	6	0.1 in	2.54 mm	2			6.1 mm	0.24 in
