EL03M Series
Manufacturer: WITHWAVE CO LTD
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

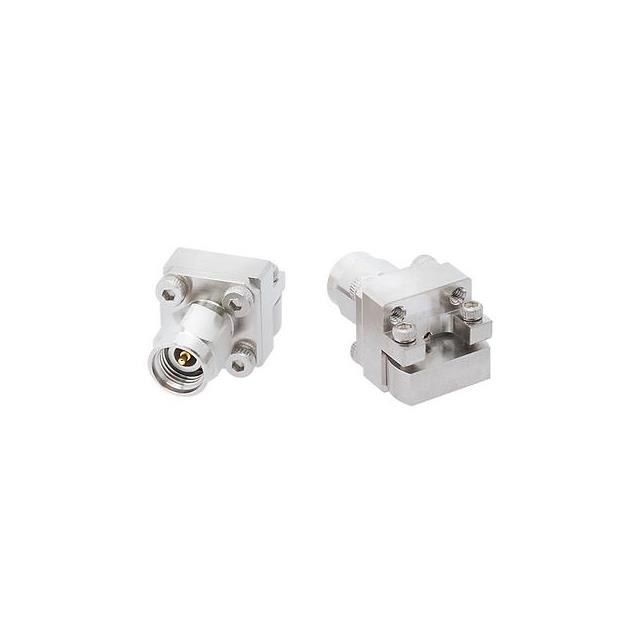

END LAUNCH 2.92 MM CONNECTOR(DC
| Part | Body Material | Center Contact Plating | Mounting Type | Contact Termination | Connector Type | Center Contact Material | Number of Ports | Shield Termination | Impedance | Frequency - Max | Connector Plug Diameter | Fastening Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WITHWAVE CO LTD | Stainless Steel | Gold | Board Edge End Launch | Compression | Male Pin Plug | Beryllium Copper | 1 | Screw | 50 Ohm | 40 Gbps | 2.92 mm | Threaded |
 WITHWAVE CO LTD | Stainless Steel | Gold | Board Edge End Launch | Compression | Male Pin Plug | Beryllium Copper | 1 | Screw | 50 Ohm | 40 Gbps | 2.92 mm | Threaded |
