09300101 Series

Manufacturer: HARTING

Catalog

HAN B BASE SURFACE LC 1 LEVERS 2 ENTRIES ROHS COMPLIANT: NA

Part	Housing Finish	Features	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Housing Color	Lock Location	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Style	Housing Material	Connector Type	Size	Thread Size	Includes	Frame Type	Gender	Material
HARTING 09300101291	Powder Coated	Feed Through	53.8 mm	3.701 in	2.118 in	52 mm	2.047 in	94 mm	Gray	Locking Clip (1) on Base Bottom	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	Base - Box Mount	10B	PG16

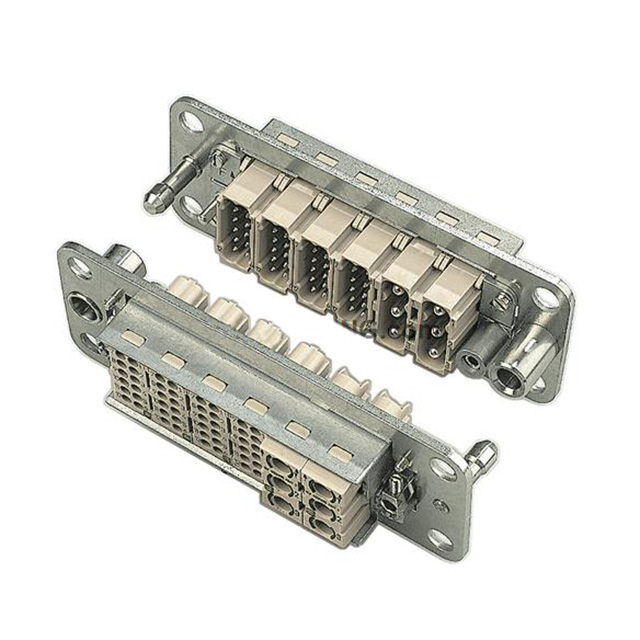

HARTING 09300101701																	10B		1 Frame 4 Screws	Fixed Frame	Non-Gendered	Stainless Steel

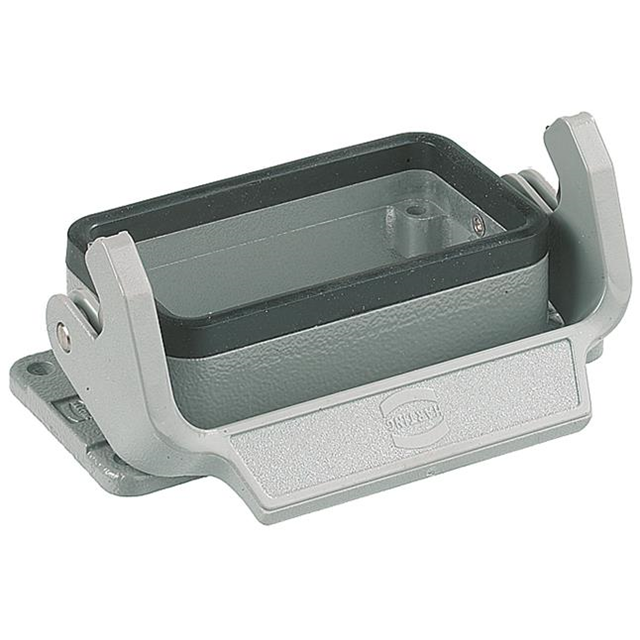

HARTING 09300101305	Powder Coated		1.189 " 30.2 mm			1.906 " 48.4 mm		3.858 " 98 mm	Gray	Locking Clip (1) on Base Bottom	125 °C	-40 C	IP65 IP67	Bottom Entry	Aluminum Die Cast	Base - Panel Mount	10B
HARTING 09300101542			55 mm	2.874 "	2.165 "	43 mm	1.693 "	73 mm		Locking Clip (1) on Base Bottom				Side Entry		Hood	10B	PG21

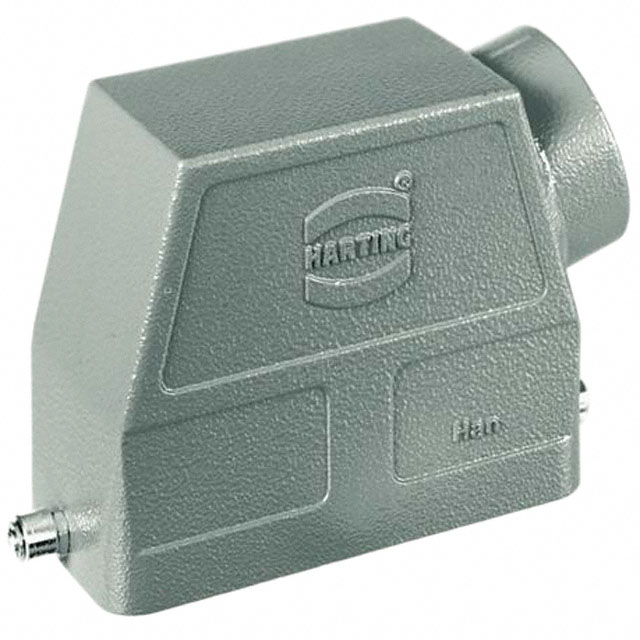

HARTING 09300101421	Powder Coated		58.5 mm	2.858 in	2.303 "	43 mm	1.693 "	72.6 mm	Gray	Locking Clip (2) on Base Bottom	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Top Entry	Aluminum Die Cast	Hood	10B	PG16
HARTING 09300101261	Powder Coated		53.8 mm	3.701 in	2.118 in	52 mm	2.047 in	94 mm	Gray	Locking Clip (2) on Hood	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	Base - Box Mount	10B	PG16

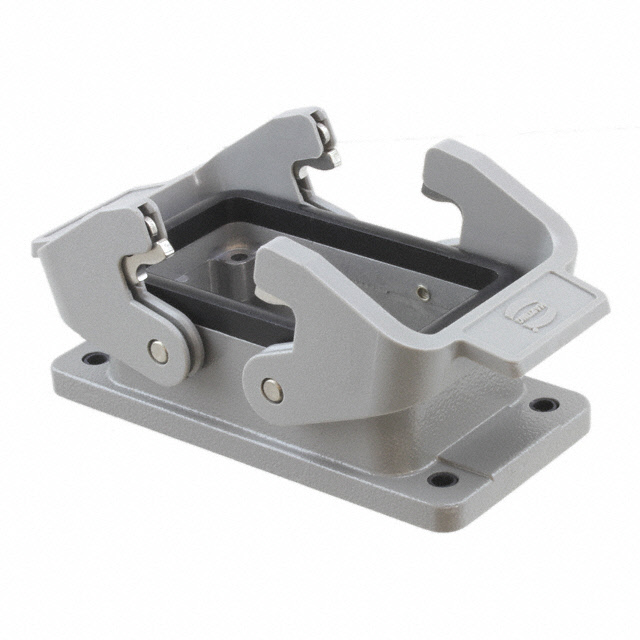

HARTING 09300101301	Powder Coated								Gray	Locking Clip (2) on Base Bottom	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Bottom Entry	Aluminum Die Cast	Base - Panel Mount	10B

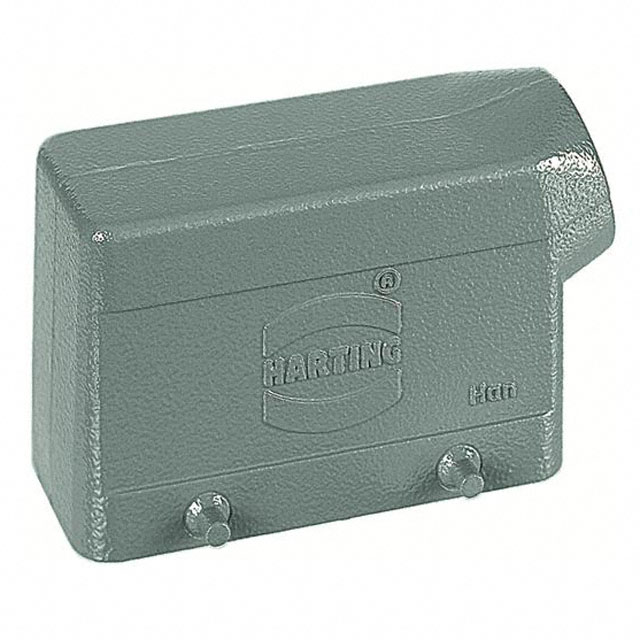

HARTING 09300101521	Powder Coated		57 mm	2.858 in	2.244 "	43 mm	1.693 "	72.6 mm	Gray	Locking Clip (2) on Base Bottom	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	Hood	10B	PG16
HARTING 09300101541	Powder Coated		57 mm	2.858 in	2.244 "	43 mm	1.693 "	72.6 mm	Gray	Locking Clip (1) on Base Bottom	125 °C	-40 C	IP65 - Dust Tight Water Resistant	Side Entry	Aluminum Die Cast	Hood	10B	PG16
HARTING 09300101308	Powder Coated		31.3 mm	3.858 "	1.232 in	48.4 mm	1.906 "	98 mm	Gray	Locking Clip (1) on Base Bottom	125 °C	-40 C	IP65 IP67	Bottom Entry	Aluminum Die Cast	Base - Panel Mount	10B
