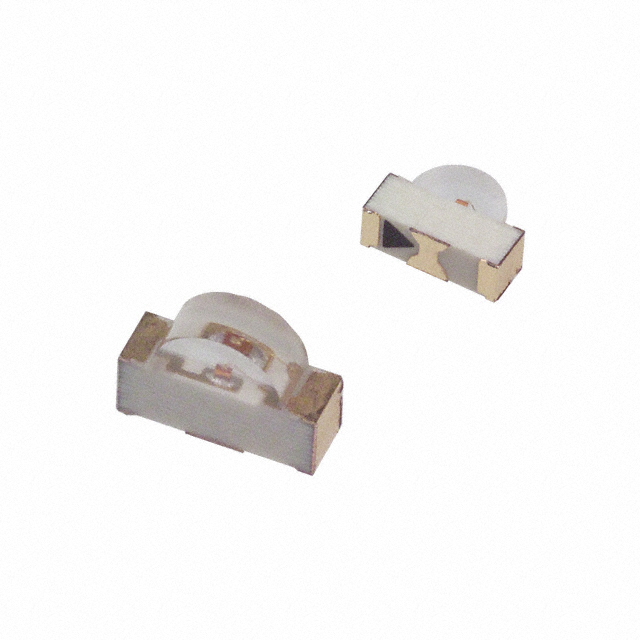

CMD12-21 Series

Catalog

LED YELLOW CLEAR SMD R/A

Part	Wavelength - Peak	Millicandela Rating	Lens Size [y]	Lens Size [x]	Package / Case	Voltage - Forward (Vf) (Typ)	Lens Style	Size / Dimension [x]	Size / Dimension [y]	Lens Transparency	Height (Max) [z]	Lens Color	Configuration	Color	Mounting Type	Supplier Device Package	Viewing Angle

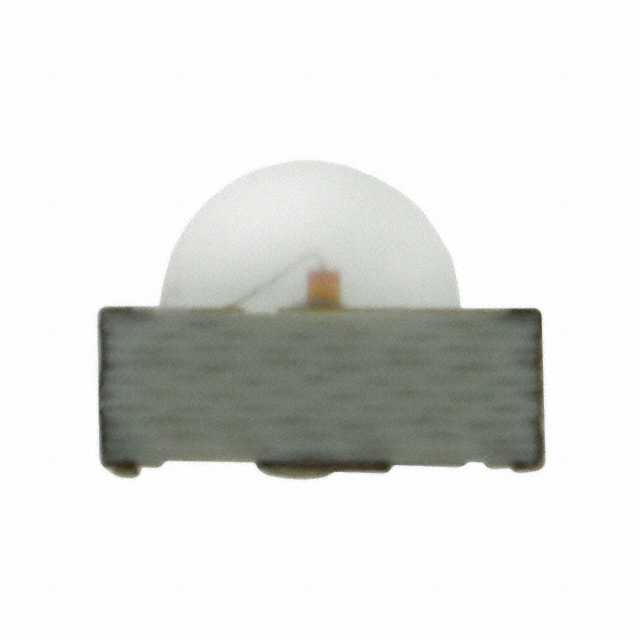

Visual Communications Company - VCC CMD12-21VYC/TR8	585 nm 591 nm	3 mcd 48 mcd	1 mm	2 mm	2-SMD No Lead	2 V	Rectangle with Domed Top	3 mm	2 mm	Clear	1 mm	Colorless	Standard	Yellow	Right Angle Surface Mount	SMD	120 °
Visual Communications Company - VCC CMD12-21UGC/TR8	570 nm	14.9 mcd	1 mm	2 mm	2-SMD No Lead	2.1 V	Rectangle with Domed Top	3 mm	2 mm	Clear	1 mm	Colorless	Standard	Green	Right Angle Surface Mount	SMD	120 °
Visual Communications Company - VCC CMD12-21SRC/TR8	660 nm	24 mcd	1 mm	2 mm	2-SMD No Lead	1.7 V	Rectangle with Domed Top	3 mm	2 mm	Clear	1 mm	Colorless	Standard	Red	Right Angle Surface Mount	SMD	120 °
Visual Communications Company - VCC CMD12-21VGC/TR8	570 nm	8.8 mcd	1 mm	2 mm	2-SMD No Lead	2.1 V	Rectangle with Domed Top	3 mm	2 mm	Clear	1 mm	Colorless	Standard	Green	Right Angle Surface Mount	SMD	120 °
