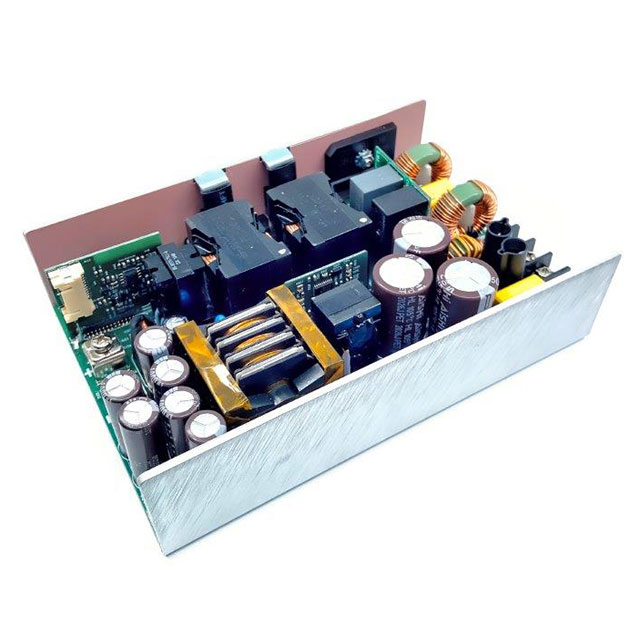

NGB660 Series
Manufacturer: SL POWER / Advanced Energy
Beta
⌘K
SWITCHING POWER SUPPLIES NGB660S15K
| Part | Minimum Load Required | Efficiency | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Power (Watts) | Number of Outputs | Voltage - Isolation | Voltage - Output 1 | Operating Temperature [Max] | Operating Temperature [Min] | Type | Approval Agency | Applications | Features | Current - Output 1 | Standard Number | Voltage - Input [Min] | Voltage - Input [Max] | Mounting Type | Power (Watts) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 SL POWER / Advanced Energy | 90 % | 1.55 " | 39.4 mm | 101.6 mm | 6 " | 4 " | 152.4 mm | 368 W 555 W | 1 | 4500 V | 15 V | 80 ¯C | -20 °C | Open Frame | CE cURus | ITE (Commercial) Medical | Adjustable Output Standby Output Universal Input | 24.5 A | 60601-1; 62368-1 | 80 VAC | 264 VAC | Chassis Mount | ||
 SL POWER / Advanced Energy | 90 % | 1.55 " | 39.4 mm | 101.6 mm | 6 " | 4 " | 152.4 mm | 450 W | 1 | 4500 V | 48 V | 80 ¯C | -20 °C | Open Frame | CE CSA cURus UL | ITE (Commercial) Medical | Adjustable Output Standby Output Universal Input | 9.38 A | 60601-1; 62368-1 | 80 VAC | 264 VAC | Chassis Mount | 662 W | |
SL POWER / Advanced Energy | 90 % | 1.55 " | 39.4 mm | 101.6 mm | 6 " | 4 " | 152.4 mm | 368 W 555 W | 1 | 4500 V | 15 V | 80 ¯C | -20 °C | Open Frame | CE cURus | ITE (Commercial) Medical | Adjustable Output Standby Output Universal Input | 24.5 A | 60601-1; 62368-1 | 80 VAC | 264 VAC | Chassis Mount | ||
SL POWER / Advanced Energy | 90 % | 1.55 " | 39.4 mm | 101.6 mm | 6 " | 4 " | 152.4 mm | 450 W | 1 | 4500 V | 48 V | 80 ¯C | -20 °C | Open Frame | CE CSA cURus UL | ITE (Commercial) Medical | Adjustable Output Standby Output Universal Input | 9.38 A | 60601-1; 62368-1 | 80 VAC | 264 VAC | Chassis Mount | 662 W | |
SL POWER / Advanced Energy | 90 % | 1.55 " | 39.4 mm | 101.6 mm | 6 " | 4 " | 152.4 mm | 451 W | 1 | 4500 V | 24 V | 80 ¯C | -20 °C | Open Frame | CE CSA cURus UL | ITE (Commercial) Medical | Adjustable Output Standby Output Universal Input | 18.8 A | 60601-1; 62368-1 | 80 VAC | 264 VAC | Chassis Mount | 660 W |
