55932 Series

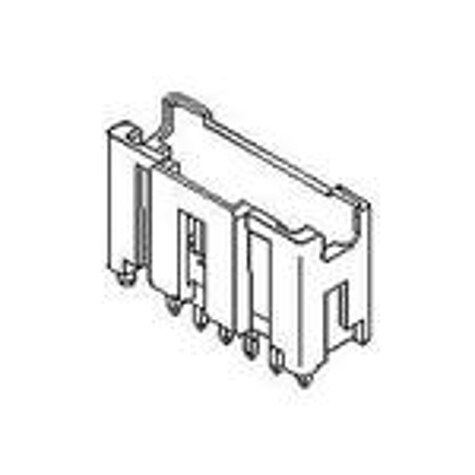

2.00mm Pitch MicroClasp Wire-to-Board Header, Single Row, Vertical, 12 Circuits, with PCB Locator
Manufacturer: Molex
Catalog
2.00mm Pitch MicroClasp Wire-to-Board Header, Single Row, Vertical, 12 Circuits, with PCB Locator
Beta
⌘K
2.00mm Pitch MicroClasp Wire-to-Board Header, Single Row, Vertical, 12 Circuits, with PCB Locator
2.00mm Pitch MicroClasp Wire-to-Board Header, Single Row, Vertical, 12 Circuits, with PCB Locator
2.00mm Pitch MicroClasp Wire-to-Board Header, Single Row, Vertical, 12 Circuits, with PCB Locator
| Part | Contact Length - Post [x] | Contact Length - Post [x] | Mounting Type | Termination | Number of Positions | Insulation Color | Fastening Type | Contact Type | Number of Rows | Contact Length - Mating | Contact Length - Mating | Pitch - Mating | Pitch - Mating | Number of Positions Loaded | Contact Finish - Post | Insulation Material | Contact Shape | Shrouding | Style | Insulation Height | Insulation Height | Connector Type | Overall Contact Length [x] | Overall Contact Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | 0.126 " | 3.2 mm | Through Hole | Kinked Pin Solder | 4 | Natural | Latch Holder | Male Pin | 1 | 3.66 mm | 0.144 in | 0.079 " | 2 mm | All | Tin | Polybutylene Terephthalate (PBT) | Square | Shrouded - 4 Wall | Board to Cable/Wire | 0.384 in | 9.75 mm | Header | 0.36 in | 9.15 mm |
