3414 Series

Catalog

CONN RING CIRC 16-22AWG #6 CRIMP

Part	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Finish	Length - Overall	Length - Overall [x]	Contact Material	Insulation	Mounting Type	Wire Gauge [Max]	Wire Gauge [Min]	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Material - Insulation	Stud/Tab Size	Thickness	Thickness	Termination	Terminal Type	Color	Length - Overall [x]	Width - Outer Edges [x]	Width - Outer Edges [x]
TE Connectivity Raychem Cable Protection 34147	0.14 in	0.105 in	3.56 mm	2.67 mm	Tin	21.74 mm	0.856 "	Copper	Insulated	Free Hanging (In-Line)	22 AWG	16 AWG	Serrated Termination	7.92 mm	0.312 in	Poly-Vinyl Chloride (PVC)	6 Stud	0.031 in	0.79 mm	Crimp	Circular	Red

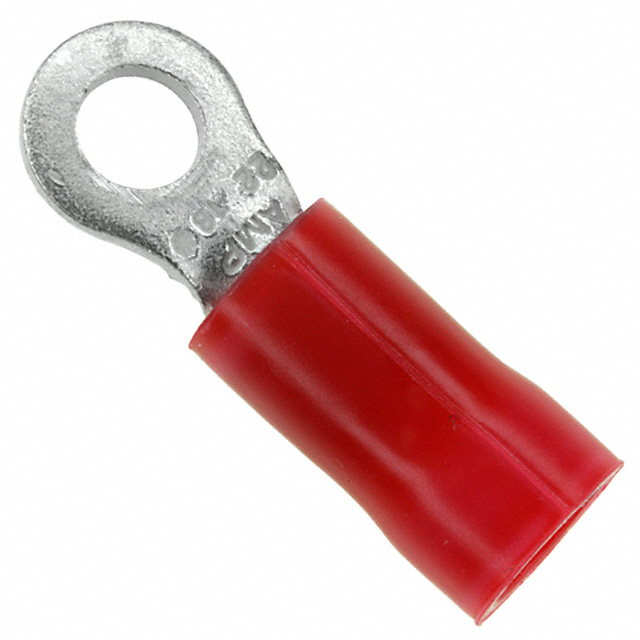

TE Connectivity Raychem Cable Protection 34141	0.14 in	0.105 in	3.56 mm	2.67 mm	Tin		0.684 in	Copper	Insulated	Free Hanging (In-Line)	22 AWG	16 AWG	Serrated Termination			Poly-Vinyl Chloride (PVC)	4 Stud	0.031 in	0.79 mm	Crimp	Circular	Red	17.37 mm	5.54 mm	0.218 in

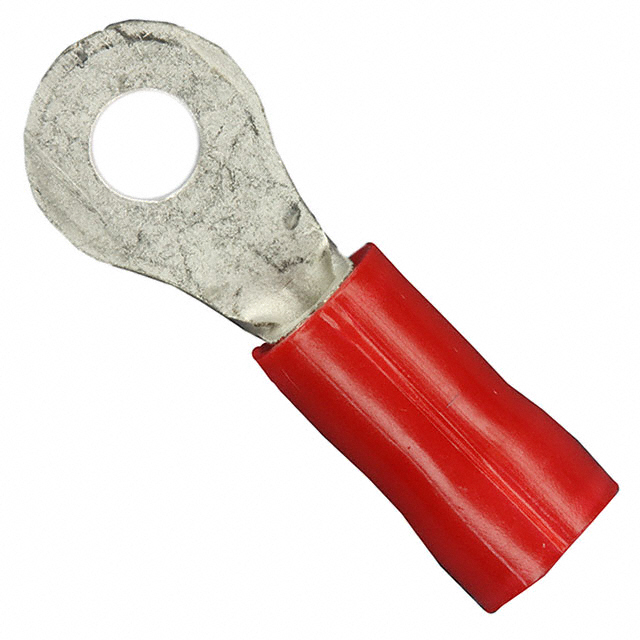

TE Connectivity Raychem Cable Protection 34143	0.14 in	0.105 in	3.56 mm	2.67 mm	Tin		0.809 in	Copper	Insulated	Free Hanging (In-Line)	22 AWG	16 AWG	Serrated Termination	7.14 mm	0.281 in	Poly-Vinyl Chloride (PVC)	4 Stud	0.031 in	0.79 mm	Crimp	Circular	Red	20.55 mm
