89882 Series

Catalog

CONN RCPT 35POS 0.1 GOLD PCB R/A

Part	Insulation Height	Insulation Height	Number of Positions	Contact Shape	Number of Positions Loaded	Contact Material	Termination	Number of Rows	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Material Flammability Rating	Insulation Color	Contact Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Applications	Contact Finish - Mating	Contact Length - Post	Contact Length - Post	Mounting Type
Amphenol ICC (FCI) 89882-335LF	0.13 in	3.3 mm	35	Square	All	Phosphor Bronze	Solder	1	0.1 in	2.54 mm	Tin	UL94 V-0	Blue	Female Socket	Push-Pull	30 Áin	0.76 Ám	2 çm	78.7 çin	Receptacle	Automotive General Purpose Industrial Telecommunications	Gold	0.114 in	2.9 mm	Through Hole Right Angle
Amphenol ICC (FCI) 89882-438LF	0.13 in	3.3 mm	38	Square	All	Phosphor Bronze	Solder	1	0.1 in	2.54 mm	Tin	UL94 V-0	Blue	Female Socket	Push-Pull	78.7 µin	2 µm	2 çm	78.7 çin	Receptacle	Automotive General Purpose Industrial Telecommunications		0.114 in	2.9 mm	Through Hole Right Angle
Amphenol ICC (FCI) 89882-409LF	0.13 in	3.3 mm	9	Square	All	Phosphor Bronze	Solder	1	0.1 in	2.54 mm	Tin	UL94 V-0	Blue	Female Socket	Push-Pull	78.7 µin	2 µm	2 çm	78.7 çin	Receptacle	Automotive General Purpose Industrial Telecommunications		0.114 in	2.9 mm	Through Hole Right Angle
Amphenol ICC (FCI) 89882-320	0.13 in	3.3 mm	20	Square	All	Phosphor Bronze	Solder	1	0.1 in	2.54 mm	Tin	UL94 V-0	Blue	Female Socket	Push-Pull	30 Áin	0.76 Ám	2 çm	78.7 çin	Receptacle	Automotive General Purpose Industrial Telecommunications	Gold	0.114 in	2.9 mm	Through Hole Right Angle
Amphenol ICC (FCI) 89882-435LF	0.13 in	3.3 mm	35	Square	All	Phosphor Bronze	Solder	1	0.1 in	2.54 mm	Tin	UL94 V-0	Blue	Female Socket	Push-Pull	78.7 µin	2 µm	2 çm	78.7 çin	Receptacle	Automotive General Purpose Industrial Telecommunications		0.114 in	2.9 mm	Through Hole Right Angle
Amphenol ICC (FCI) 89882-325LF	0.13 in	3.3 mm		Square	All	Phosphor Bronze	Solder	1	0.1 in	2.54 mm	Tin	UL94 V-0	Blue	Female Socket	Push-Pull	30 Áin	0.76 Ám	2 çm	78.7 çin	Receptacle	Automotive General Purpose Industrial Telecommunications	Gold	0.114 in	2.9 mm	Through Hole Right Angle
Amphenol ICC (FCI) 89882-434LF	0.13 in	3.3 mm	34	Square	All	Phosphor Bronze	Solder	1	0.1 in	2.54 mm	Tin	UL94 V-0	Blue	Female Socket	Push-Pull	78.7 µin	2 µm	2 çm	78.7 çin	Receptacle	Automotive General Purpose Industrial Telecommunications		0.114 in	2.9 mm	Through Hole Right Angle
Amphenol ICC (FCI) 89882-423LF	0.13 in	3.3 mm	23	Square	All	Phosphor Bronze	Solder	1	0.1 in	2.54 mm	Tin	UL94 V-0	Blue	Female Socket	Push-Pull	78.7 µin	2 µm	2 çm	78.7 çin	Receptacle	Automotive General Purpose Industrial Telecommunications		0.114 in	2.9 mm	Through Hole Right Angle

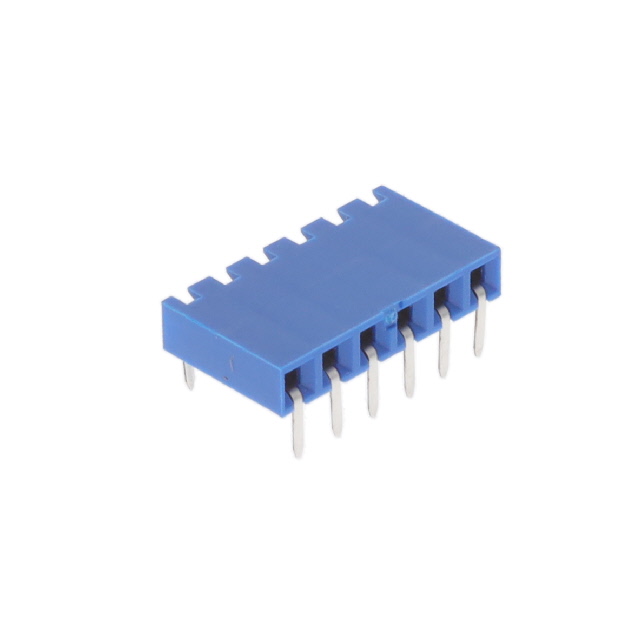

Amphenol ICC (FCI) 89882-306LF	0.13 in	3.3 mm	6	Square	All	Phosphor Bronze	Solder	1	0.1 in	2.54 mm	Tin	UL94 V-0	Blue	Female Socket	Push-Pull	30 Áin	0.76 Ám	2 çm	78.7 çin	Receptacle	Automotive General Purpose Industrial Telecommunications	Gold	0.114 in	2.9 mm	Through Hole Right Angle
Amphenol ICC (FCI) 89882-330	0.13 in	3.3 mm	30	Square	All	Phosphor Bronze	Solder	1	0.1 in	2.54 mm	Tin	UL94 V-0	Blue	Female Socket	Push-Pull	30 Áin	0.76 Ám	2 çm	78.7 çin	Receptacle	Automotive General Purpose Industrial Telecommunications	Gold	0.114 in	2.9 mm	Through Hole Right Angle
