X1005244 Series

Catalog

ANTENNA GNSS / LTE / WIFI

Part	Frequency Group	RF Family/Standard	Mounting Type	Ingress Protection	Height (Max) [Max] [z]	Height (Max) [z]	VSWR	Applications	Frequency Range [Max]	Frequency Range [Min]	Features	Number of Bands	Antenna Type	Gain	Frequency (Center/Band)	Termination

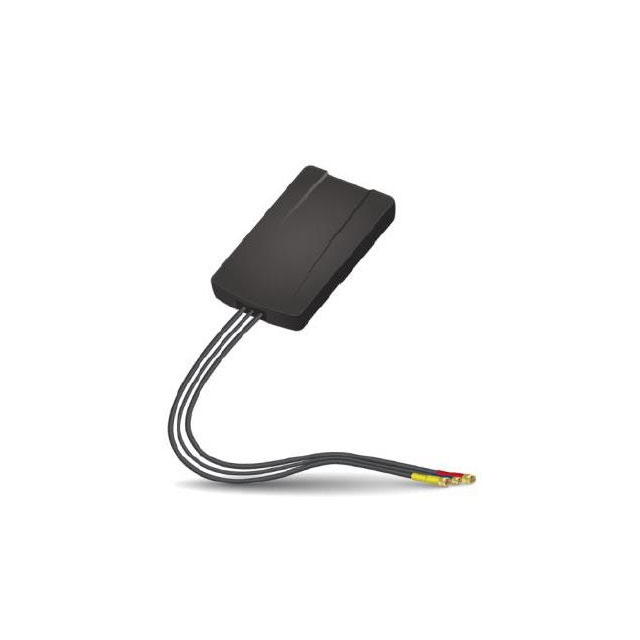

KYOCERA AVX X1005244-LWA3SX10A2	Wide Band	Cellular Navigation WiFi	Adhesive	IPX7	0.5 in	12.7 mm	2 2.5 3	GLONASS GNSS GPS LTE Wi-Fi	2.17 GHz 2.5 GHz 2.69 GHz 5.85 GHz 960 MHz	1.71 GHz 2.3 GHz 2.4 GHz 5.15 GHz 698 MHz	Cable - 1m LNA	8	Module	1.1 dBi 2.1 dBi 2.3 dBi 3.4 dBi 3.5 dBi 3.7 dBi 4.5 dBic 4.6 dBi	1.561 GHz 1.575 GHz 1.602 GHz 1.94 GHz 2.45 GHz 2.495 GHz 5.5 GHz 829 MHz	RP-SMA Male (1) SMA Male (2)
