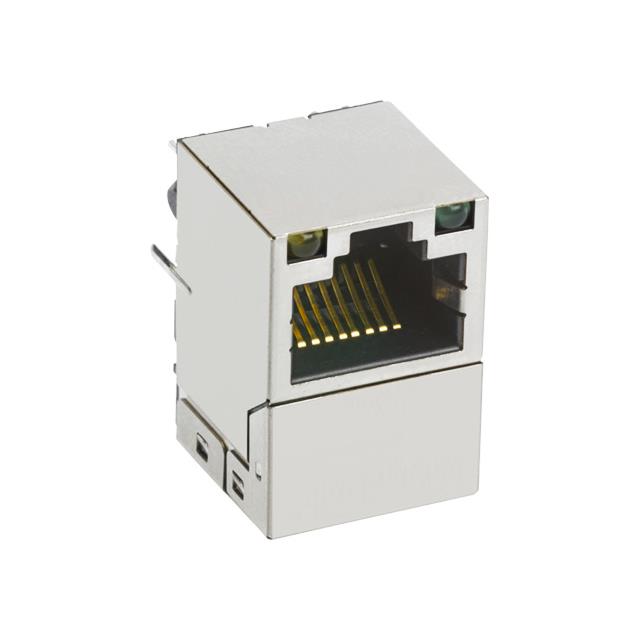

1840420 Series
Manufacturer: Bel Fuse Inc.
Beta
⌘K
CONN JACK 1PORT 100 BASE-T
| Part | Shielding | Termination | Connector Type | Shield Material | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Height Above Board [z] | Height Above Board [z] | Number of Ports | Number of Rows | LED Color | Features | Housing Material | Orientation | Tab Direction | Applications |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bel Fuse Inc. | Shielded | Solder | RJ45 | Brass | Phosphor Bronze | 70 °C | 0 °C | Through Hole | Gold | 50 µin | 1.27 µm | 0.65 in | 16.51 mm | 1 | 1 | Does Not Contain LED | Board Guide | Thermoplastic | Vertical | User Selectable | 10/100 Base-T AutoMDIX |
Bel Fuse Inc. | Shielded | Solder | RJ45 | Phosphor Bronze | 70 °C | 0 °C | Through Hole | Gold | 0.65 in | 16.51 mm | 1 | 1 | Does Not Contain LED | Board Guide | Vertical | User Selectable | 10/100 Base-T AutoMDIX |
