PFC1248 Series
Manufacturer: Delta Electronics
Beta
⌘K

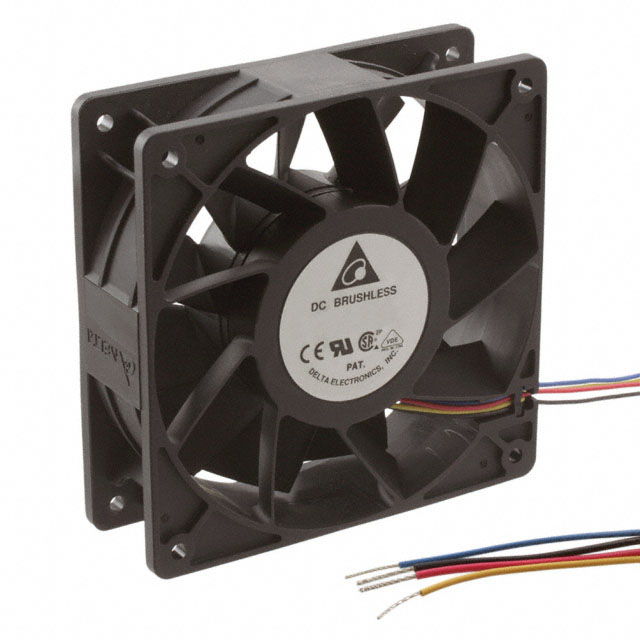

FAN AXIAL 120X38MM 48VDC WIRE
| Part | Material - Blade | Voltage Range [Max] | Voltage Range [Min] | Material - Frame | Current Rating (Amps) | Lifetime @ Temp. | Static Pressure | Static Pressure | Bearing Type | Operating Temperature [Min] | Operating Temperature [Max] | Fan Type | Power (Watts) | Noise | Voltage - Rated | Features | Approval Agency | Air Flow | Air Flow | Weight | Weight | RPM | Termination | Width [y] | Size / Dimension [z] | Size / Dimension [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | Plastic | 56 VDC | 30 VDC | Plastic | 1 A | 70000 Hrs | 1.412 in H2O | 351.7 Pa | Ball | -10 °C | 60 °C | Tubeaxial | 48 W | 66.5 dB(A) | 48 VDC | Locked Rotor Protection PWM Control Speed Sensor (Tach) | CE CSA UL VDE | 7.08 mł/min | 252.9 CFM | 0.838 lb | 380.11 g | 5500 RPM | 4 Wire Leads | 38 mm | 120 mm | 120 mm |
