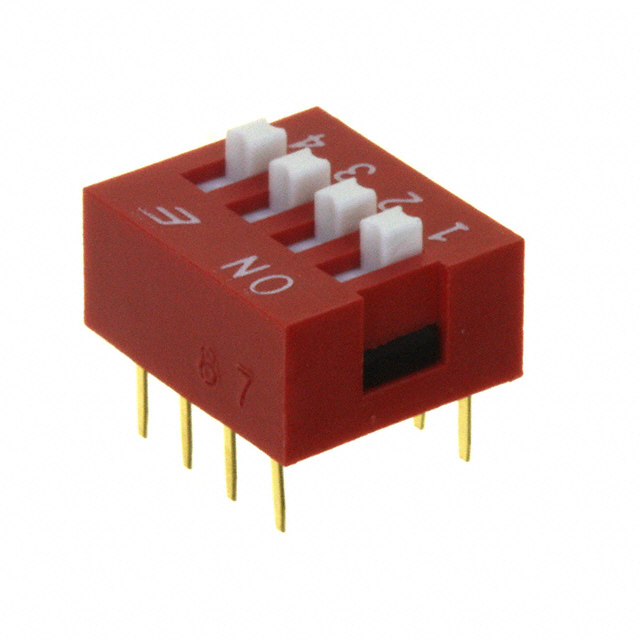

KAS1104 Series
Manufacturer: E-Switch
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Length [x] | Length [x] | Body Material | Mechanical Life | Electrical Life | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Circuit | Voltage Rating | Pitch | Pitch | Actuator Level | Contact Material | Termination Style | Mounting Type | Current Rating (Amps) | Height Above Board [z] | Height Above Board [z] | Washable | Number of Positions | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 0.454 in | 11.52 mm | Polybutylene Terephthalate (PBT) Glass Filled | 2000 Cycles | 2000 Steps | Slide (Standard) | 85 °C | -40 C | SPST | 24 VDC | 2.54 mm | 0.1 " | Raised | Phosphor Bronze | PC Pin | Through Hole | 25 mA | 6.99 mm | 0.275 in | 4 | Gold |
