D38999/20WE Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

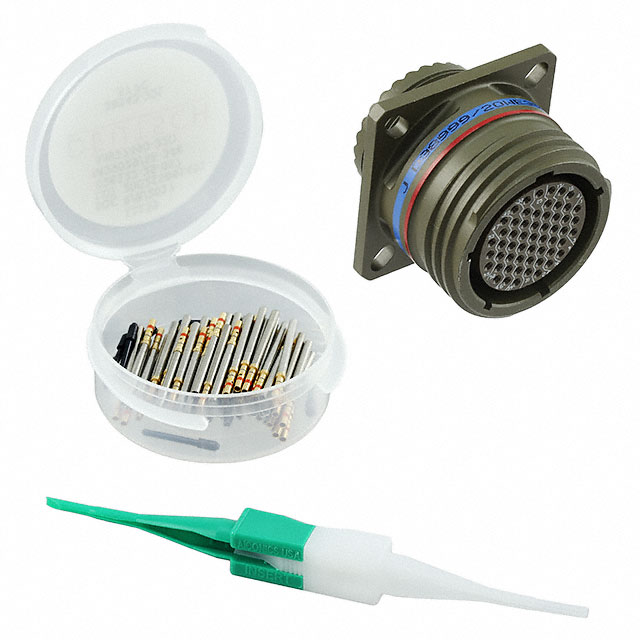

CONN CIRCULAR PIN 55 POS CRIMP ST FLANGE MOUNT 55 TERMINAL 1 PORT
| Part | Housing Color | Mounting Feature | Orientation | Shell Size, MIL | Mounting Type | Number of Positions | Connector Type | Contact Shape | Type | Shell Size - Insert [Max] | Shell Size - Insert [Min] | Grade | Ingress Protection | Contact Size | Contact Type | Insert Material | Shielding | Primary Material | Note | Operating Temperature [Min] | Operating Temperature [Max] | Shell Material | Fastening Type | Qualification | Shell Finish | Termination | Applications | Contact Finish - Mating | Color | Contact Material | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Olive Drab | Flange | A | E | Panel Mount | 55 | Receptacle Housing | Circular | For Male Pins | 35 | 17 | Military | Environment Resistant | 22D | Crimp | Plastic | Shielded | Metal | Contacts Not Included | -65 ░C | 175 °C | Aluminum Alloy | Threaded | MIL-DTL-38999 Series III | Chromate over Cadmium | |||||||||
 TE Connectivity AMP Connectors | Flange | N (Normal) | E | Panel Mount | 55 | Receptacle Female Sockets | 35 | 17 | Military | Environment Resistant | Thermoplastic | Shielded | Metal | -65 ░C | 175 °C | Aluminum | Threaded | MIL-DTL-38999 Series III | Olive Drab Cadmium | Crimp | Aviation Communication Systems Industrial Military | Gold | Olive Drab | Copper Alloy | 5 A | 50 µin | 1.27 µm | Self Locking |
