3399 Series

Catalog

HEADER CONNECTOR,CABLE MOUNT,PLUG,26 CONTACTS,SKT,0.1 PITCH,IDC TERMINAL

Part	Number of Rows [custom]	Contact Finish Thickness	Contact Finish Thickness	Number of Positions	Cable Termination	Row Spacing	Row Spacing	Wire Gauge [Max]	Wire Gauge	Wire Gauge [Min]	Wire Type	Pitch	Pitch	Mounting Type	Connector Type	Contact Finish	Features	Color	Contact Type
3M Electronic Specialty 3399-H600	2	30 Áin	0.76 Ám	26	IDC	2.54 mm	0.1 "	28 AWG	Stranded or Solid	26 AWG	Ribbon Cable	0.1 "	2.54 mm	Free Hanging (In-Line)	Receptacle	Gold	Feed Through Polarizing Key	Gray	Female Socket

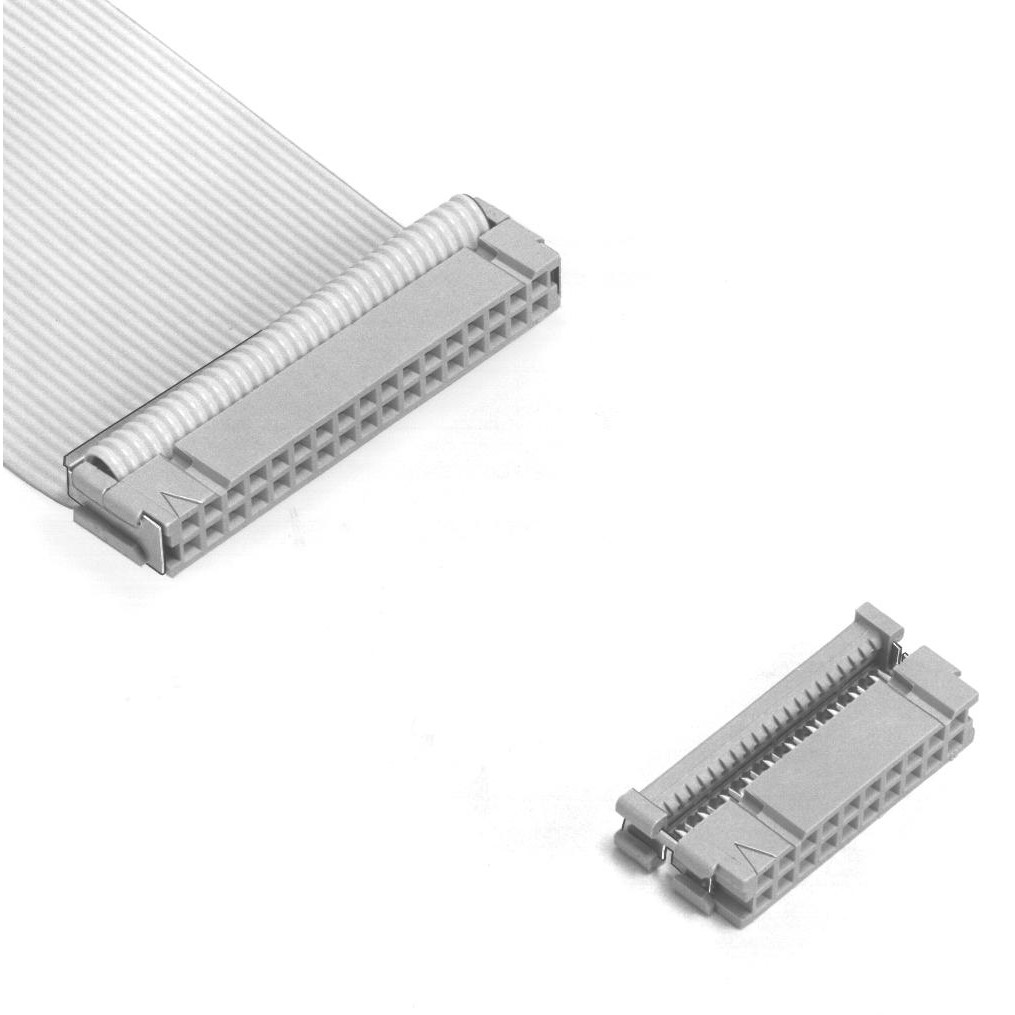

3M Electronic Specialty 3399-J000	2	30 Áin	0.76 Ám	26	IDC	2.54 mm	0.1 "	28 AWG	Stranded or Solid	26 AWG	Ribbon Cable	0.1 "	2.54 mm	Free Hanging (In-Line)	Receptacle	Gold	Closed End	Gray	Female Socket
3M Electronic Specialty 3399-6026	2	30 Áin	0.76 Ám	26	IDC	2.54 mm	0.1 "				Ribbon Cable	0.1 "	2.54 mm	Free Hanging (In-Line)	Receptacle	Gold	Feed Through Strain Relief	Gray	Female Socket
3M Electronic Specialty 3399-6626	2	30 Áin	0.76 Ám	26	IDC	2.54 mm	0.1 "				Ribbon Cable	0.1 "	2.54 mm	Free Hanging (In-Line)	Receptacle	Gold	Feed Through Polarizing Key Strain Relief	Gray	Female Socket
3M Electronic Specialty 3399-7026	2	30 Áin	0.76 Ám	26	IDC	2.54 mm	0.1 "				Ribbon Cable	0.1 "	2.54 mm	Free Hanging (In-Line)	Receptacle	Gold	Closed End Strain Relief	Gray	Female Socket
3M Electronic Specialty 3399-G626	2			26	IDC	2.54 mm	0.1 "	28 AWG	Stranded or Solid	26 AWG	Ribbon Cable	0.1 "	2.54 mm	Free Hanging (In-Line)	Receptacle			Gray	Female Socket

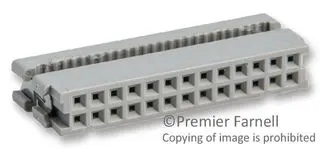

3M Electronic Specialty 3399-6000	2	30 Áin	0.76 Ám	26	IDC	2.54 mm	0.1 "				Ribbon Cable	0.1 "	2.54 mm	Free Hanging (In-Line)	Receptacle	Gold	Feed Through	Gray	Female Socket
