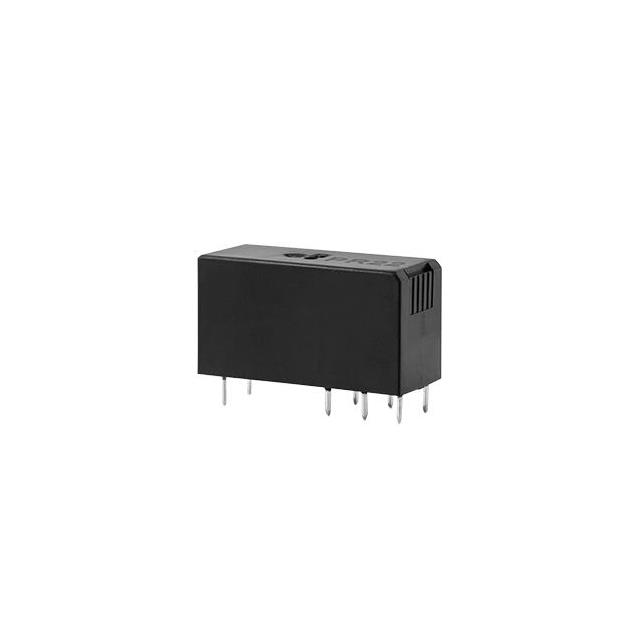

PR22-12V Series
Manufacturer: Same Sky (Formerly CUI Devices)
Beta
⌘K
RELAY GEN PURPOSE SPDT 16A 12V
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Release Time | Relay Type | Contact Form | Termination Style | Coil Voltage | Contact Material | Must Operate Voltage | Contact Rating (Current) | Coil Current | Load - Max Switching | Mounting Type | Must Release Voltage | Operate Time | Coil Type | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Same Sky (Formerly CUI Devices) | 85 °C | -40 C | 5 ms | General Purpose | SPDT (1 Form C) | PC Pin | 12 VDC | Silver Alloy | 8.4 VDC | 16 A | 33.3 mA | 1920 W 7040 VA | Through Hole | 1.2 VDC | 10 ms | Non Latching | |
Same Sky (Formerly CUI Devices) | 85 °C | -40 C | 5 ms | General Purpose | SPDT (1 Form C) | PC Pin | 12 VDC | Silver Alloy | 8.4 VDC | 16 A | 33.3 mA | 1920 W 7040 VA | Through Hole | 1.2 VDC | 10 ms | Non Latching | 360 Ohms |
 Same Sky (Formerly CUI Devices) | 85 °C | -40 C | 5 ms | General Purpose | SPST-NO (1 Form A) | PC Pin | 12 VDC | Silver Alloy | 8.4 VDC | 16 A | 33.3 mA | 1920 W 7040 VA | Through Hole | 1.2 VDC | 10 ms | Non Latching | 360 Ohms |
Same Sky (Formerly CUI Devices) | 85 °C | -40 C | 5 ms | General Purpose | SPST-NO (1 Form A) | PC Pin | 12 VDC | Silver Alloy | 8.4 VDC | 16 A | 33.3 mA | 1920 W 7040 VA | Through Hole | 1.2 VDC | 10 ms | Non Latching |
