325-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

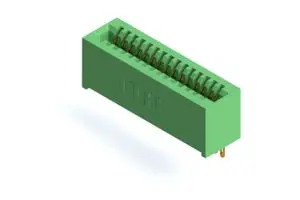

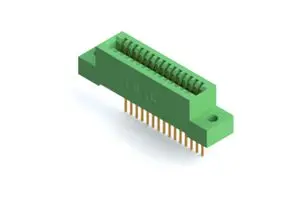

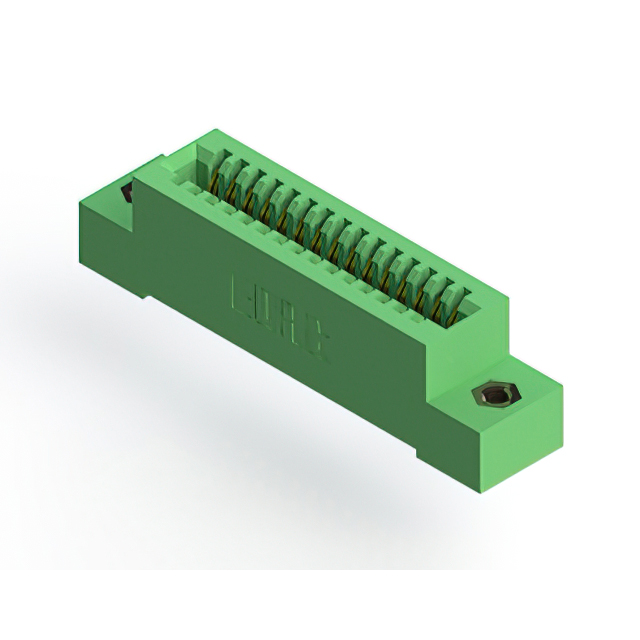

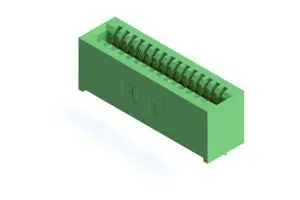

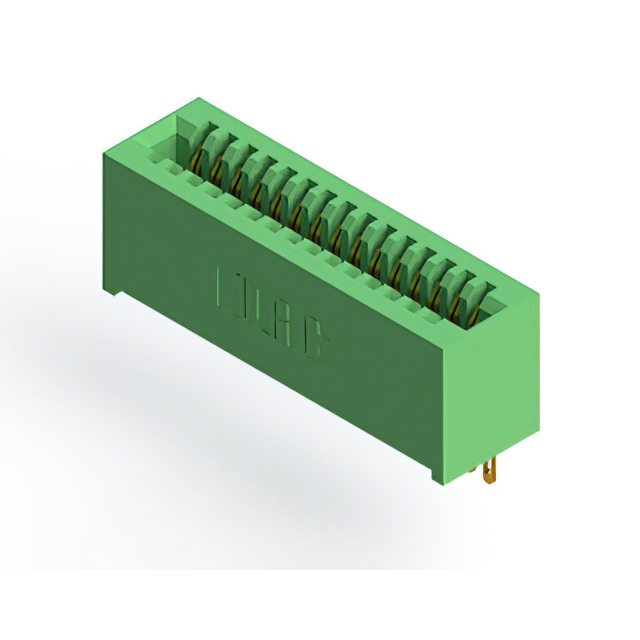

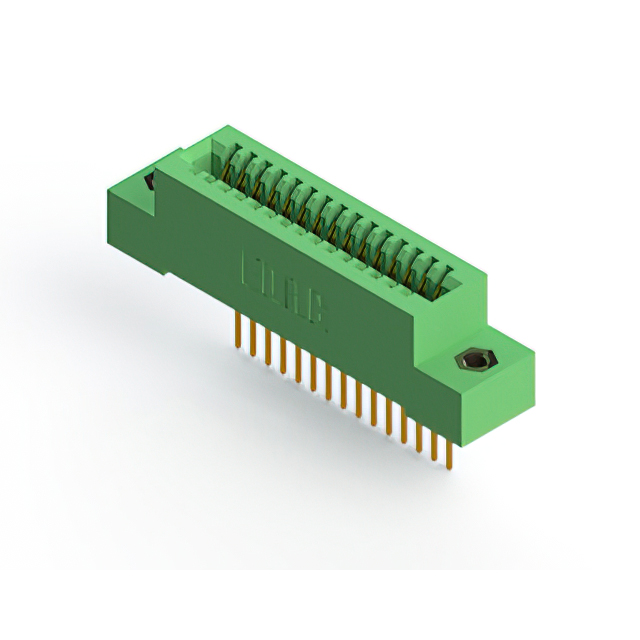

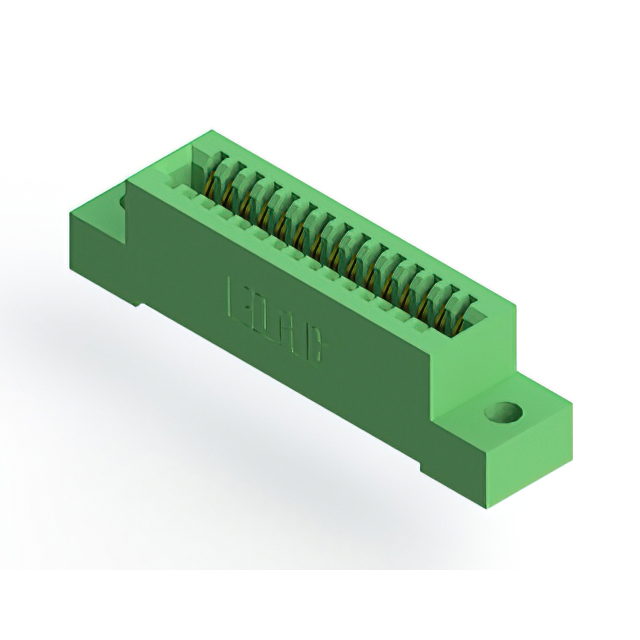

CARD EDGE CONNECTOR, SINGLE SIDE, 3.18 MM, 15 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
| Part | Termination Rows | Material - Insulation | Color | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Card Type | Termination | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Contact Type | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions | Pitch | Pitch | Card Thickness | Card Thickness | Contact Finish | Gender | Contact Material | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | -65 ░C | 125 °C | 1 | Non Specified - Single Edge | Wire Wrap | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 15 | Cantilever | 0.25 Ám | 10 Áin | Single | 15 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Gold | Female | Copper Alloy | Through Hole |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | -65 ░C | 125 °C | 1 | Non Specified - Single Edge | Solder | 15 | Cantilever | 0.25 Ám | 10 Áin | Single | 15 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Gold | Female | Copper Alloy | Through Hole | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | -65 ░C | 125 °C | 1 | Non Specified - Single Edge | Solder Eyelet(s) | Flush Mount M3 Threaded Insert Top Opening | 15 | Cantilever | 0.25 Ám | 10 Áin | Single | 15 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Gold | Female | Copper Alloy | Through Hole | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | -65 ░C | 125 °C | 1 | Non Specified - Single Edge | Solder Eyelet(s) | 15 | Cantilever | 0.25 Ám | 10 Áin | Single | 15 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Gold | Female | Copper Alloy | Through Hole | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | -65 ░C | 125 °C | 1 | Non Specified - Single Edge | Wire Wrap | Flush Mount M3 Threaded Insert Top Opening | 15 | Cantilever | 0.25 Ám | 10 Áin | Single | 15 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Gold | Female | Copper Alloy | Through Hole | ||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | -65 ░C | 125 °C | 1 | Non Specified - Single Edge | Solder | Flush Mount Top Opening Unthreaded | 0.16 " | 4.06 mm | 15 | Cantilever | 0.25 Ám | 10 Áin | Single | 15 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Gold | Female | Copper Alloy | Through Hole |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | -65 ░C | 125 °C | 1 | Non Specified - Single Edge | Solder Eyelet(s) | 4-40 Flush Mount Threaded Insert Top Opening | 15 | Cantilever | 0.25 Ám | 10 Áin | Single | 15 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Gold | Female | Copper Alloy | Through Hole | ||
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | -65 ░C | 125 °C | 1 | Non Specified - Single Edge | Solder | 4-40 Flush Mount Threaded Insert Top Opening | 15 | Cantilever | 0.25 Ám | 10 Áin | Single | 15 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Gold | Female | Copper Alloy | Through Hole | ||
EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Green | -65 ░C | 125 °C | 1 | Non Specified - Single Edge | Solder | Flush Mount M3 Threaded Insert Top Opening | 15 | Cantilever | 0.25 Ám | 10 Áin | Single | 15 | 0.1 " | 2.54 mm | 3.18 mm | 0.125 in | Gold | Female | Copper Alloy | Through Hole |
