NPTC271 Series
Manufacturer: Sullins Connector Solutions
Beta
⌘K

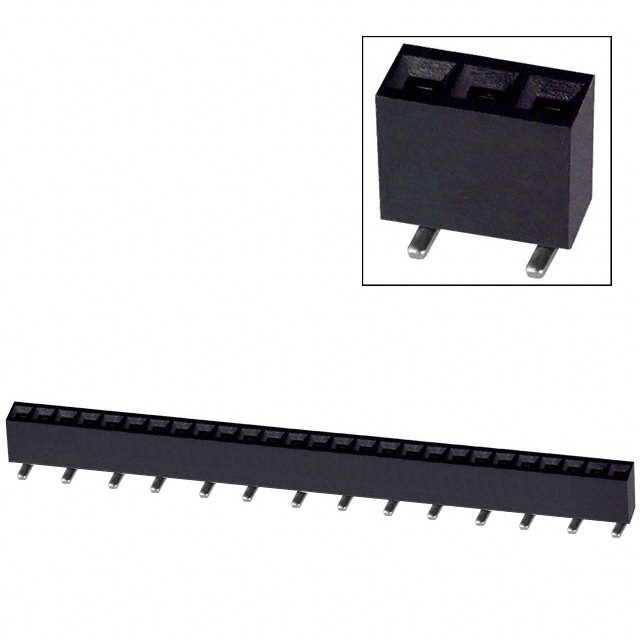

CONN HDR 27POS 0.1 TIN SMD
| Part | Contact Shape | Contact Material | Insulation Material | Insulation Color | Material Flammability Rating | Contact Type | Number of Rows | Mounting Type | Pitch - Mating | Pitch - Mating | Connector Type | Fastening Type | Insulation Height | Insulation Height | Termination | Current Rating (Amps) | Voltage Rating | Number of Positions Loaded | Contact Finish - Post | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sullins Connector Solutions | Square | Phosphor Bronze | Nylon 6T Polyamide (PA6T) | Black | UL94 V-0 | Female Socket | 1 | Surface Mount | 0.1 " | 2.54 mm | Header Top or Bottom Entry | Push-Pull | 0.28 in | 7.1 mm | Solder | 3 A | 250 V | All | Tin | 27 | -40 C | 105 ░C |
