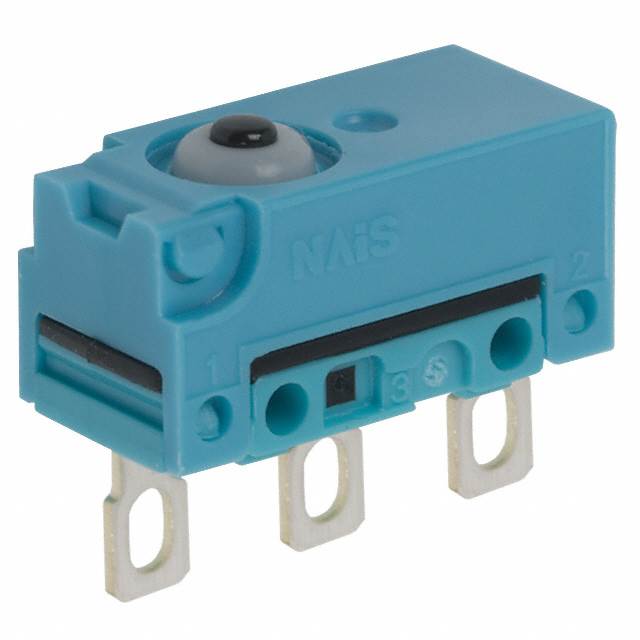

ABJ141 Series

Manufacturer: Panasonic Electronic Components

Catalog

SWITCH SNAP ACTION SPDT 1A 125V

Part	Release Force	Mechanical Life	Ingress Protection	Actuator Type	Voltage Rating - AC	Mounting Type	Operating Force	Circuit	Differential Travel	Differential Travel	Voltage Rating - DC	Pretravel	Pretravel	Termination Style	Operating Temperature [Max]	Operating Temperature [Min]	Operating Position	Operating Position	Electrical Life	Current Rating (Amps)	Overtravel [custom]	Overtravel [custom]	Switch Function	Differential Travel

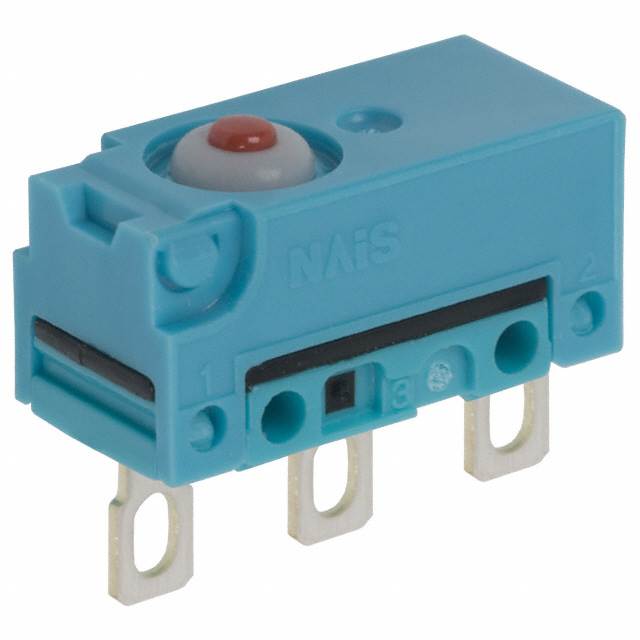

Panasonic Electronic Components ABJ1410409	15 gf	1000000 Cycles	IP50 - Dust Protected	Round (Pin Plunger)	125 V	Chassis Mount	125 gf	SPDT	0.005 in	0.13 mm	30 V	0.6 mm	0.024 in	Solder Lug	85 °C	-40 C	0.217 in	5.5 mm	6000 Cycles	1 A	0.01 "	0.25 mm	On-Mom
Panasonic Electronic Components ABJ1410619	25 gf	1000000 Cycles	IP50 - Dust Protected	Round (Pin Plunger)	125 V	Chassis Mount	0.2 kgf	SPDT	0.005 in	0.13 mm	30 V	0.6 mm	0.024 in	Solder Lug	85 °C	-40 C	0.217 in	5.5 mm	6000 Cycles	100 mA	0.01 "	0.25 mm	On-Mom
Panasonic Electronic Components ABJ141041	15 gf	1000000 Cycles	IP50 - Dust Protected	Round (Pin Plunger)	125 V	Chassis Mount	125 gf	SPDT	0.005 in	0.13 mm	30 V	0.6 mm	0.024 in	Solder Lug	85 °C	-40 C	0.217 in	5.5 mm	100000 Cycles	100 mA	0.01 "	0.25 mm	On-Mom
Panasonic Electronic Components ABJ141061	25 gf	1000000 Cycles	IP50 - Dust Protected	Round (Pin Plunger)	125 V	Chassis Mount	0.2 kgf	SPDT	0.005 in	0.13 mm	30 V	0.6 mm	0.024 in	Solder Lug	85 °C	-40 C	0.217 in	5.5 mm	100000 Cycles	100 mA	0.01 "	0.25 mm	On-Mom
Panasonic Electronic Components ABJ141461	5.099 gf	1000000 Cycles	IP50 - Dust Protected	Lever Simulated Roller	125 V	Chassis Mount	65 gf	SPDT	0.5 mm		30 V	3 mm	0.12 in	Solder Lug	85 °C	-40 C	0.386 in	9.8 mm	100000 Cycles	100 mA	0.02 "	0.5 mm	On-Mom	0.02 in
Panasonic Electronic Components ABJ1416419	3.059 gf	1000000 Cycles	IP50 - Dust Protected	Lever Roller	125 V	Chassis Mount	40 gf	SPDT	0.5 mm		30 V	3 mm	0.12 in	Solder Lug	85 °C	-40 C	0.516 in	13.1 mm	6000 Cycles	100 mA	0.02 "	0.5 mm	On-Mom	0.02 in
Panasonic Electronic Components ABJ1412419	3.059 gf	1000000 Cycles	IP50 - Dust Protected	Lever Straight	125 V	Chassis Mount	40 gf	SPDT	0.5 mm		30 V	3 mm	0.12 in	Solder Lug	85 °C	-40 C	0.268 in	6.8 mm	6000 Cycles	100 mA	0.02 "	0.5 mm	On-Mom	0.02 in
Panasonic Electronic Components ABJ141241	3.059 gf	1000000 Cycles	IP50 - Dust Protected	Lever Straight	125 V	Chassis Mount	40 gf	SPDT	0.5 mm		30 V	3 mm	0.12 in	Solder Lug	85 °C	-40 C	0.268 in	6.8 mm	100000 Cycles	100 mA	0.02 "	0.5 mm	On-Mom	0.02 in
Panasonic Electronic Components ABJ141441	3.059 gf	1000000 Cycles	IP50 - Dust Protected	Lever Simulated Roller	125 V	Chassis Mount	40 gf	SPDT	0.5 mm		30 V	3 mm	0.12 in	Solder Lug	85 °C	-40 C	0.386 in	9.8 mm	100000 Cycles	100 mA	0.02 "	0.5 mm	On-Mom	0.02 in

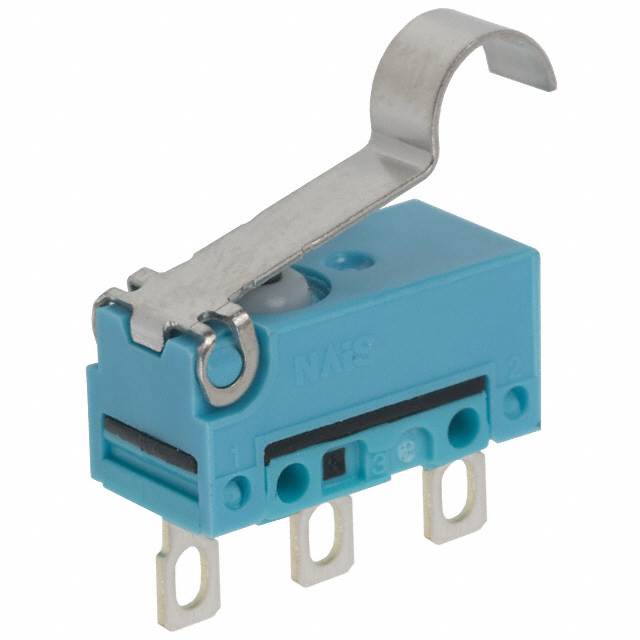

Panasonic Electronic Components ABJ1414419	3.059 gf	1000000 Cycles	IP50 - Dust Protected	Lever Simulated Roller	125 V	Chassis Mount	40 gf	SPDT	0.5 mm		30 V	3 mm	0.12 in	Solder Lug	85 °C	-40 C	0.386 in	9.8 mm	6000 Cycles	100 mA	0.02 "	0.5 mm	On-Mom	0.02 in
