BRD1265 Series
Manufacturer: POWER INTEGRATIONS
Beta
⌘K

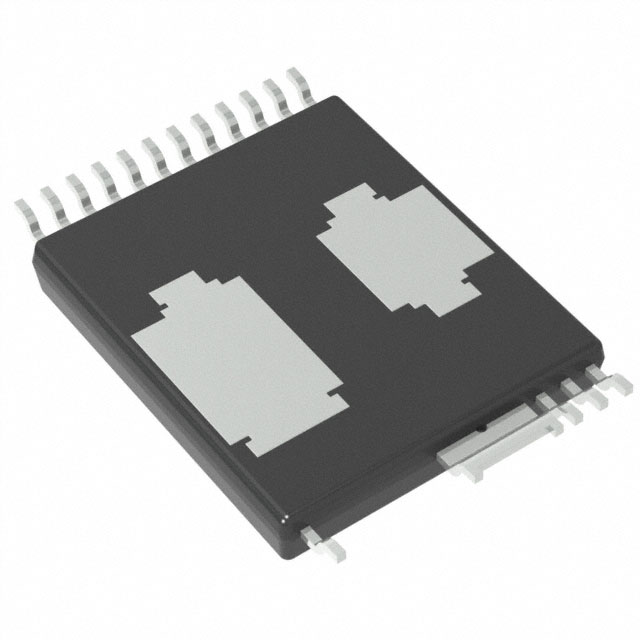

IC HALF BRIDGE DRV 5.5A INSOP24C
| Part | Load Type | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Load | Technology | Interface | Package / Case | Package / Case | Package / Case [y] | Current - Output / Channel | Rds On (Typ) | Supplier Device Package | Features | Mounting Type | Applications | Fault Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 POWER INTEGRATIONS | Capacitive and Resistive | -40 °C | 150 °C | 600 V | Power MOSFET | Analog Logic PWM | 0.425 in 17 Leads | 24-PowerSMD Module | 10.8 mm | 5.5 A | 830 mOhm 830 mOhm | InSOP-24C | Bootstrap Circuit | Surface Mount | DC Motors General Purpose | Current Limiting Over Temperature Over Voltage |
