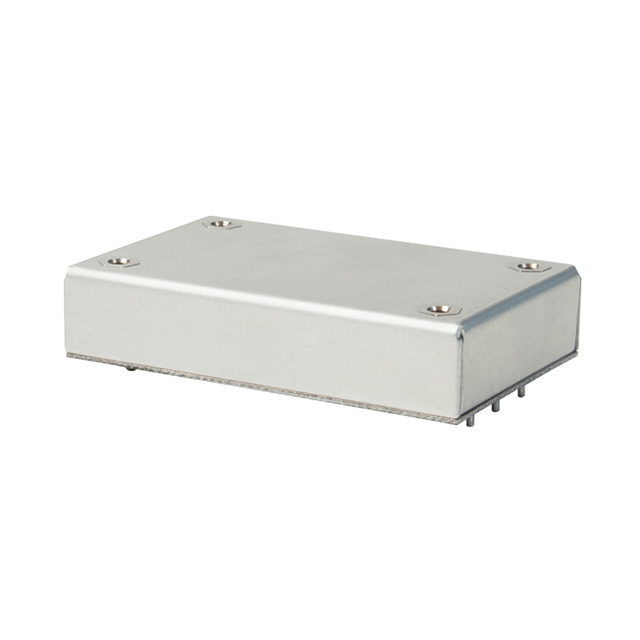

VQB75W Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER 12V 75W

Part	Applications	Current - Output (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Features	Number of Outputs	Power (Watts)	Voltage - Isolation	Voltage - Output 1	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Voltage - Input (Max) [Max]	Supplier Device Package	Voltage - Input (Min) [Min]	Control Features	Type	Approval Agency	Efficiency	Standard Number
CUI Inc. VQB75W-Q24-S12	ITE (Commercial)	6.25 A	Through Hole	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	OCP OTP OVP Remote On/Off SCP UVLO	1	75 W	1.5 kV	12 V	100 °C	-40 °C	1/4 Brick 8-DIP Module	36 V	Quarter Brick	9 V	Active High Enable	Isolated Module	UL	86 %	60950-1
CUI Inc. VQB75W-Q24-S24	ITE (Commercial)	3.12 A	Through Hole	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	OCP OTP OVP Remote On/Off SCP UVLO	1	75 W	1.5 kV	24 V	100 °C	-40 °C	1/4 Brick 8-DIP Module	36 V	Quarter Brick	9 V	Active High Enable	Isolated Module	UL	86 %	60950-1
CUI Inc. VQB75W-Q48-S3R3	ITE (Commercial)	12 A	Through Hole	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	OCP OTP OVP Remote On/Off SCP UVLO	1	40 W	1.5 kV	3.3 V	100 °C	-40 °C	Quarter Brick	75 V	Quarter Brick	18 V	Active High Enable	Isolated Module	UL		60950-1
CUI Inc. VQB75W-Q24-S3R3	ITE (Commercial)	12 A	Through Hole	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	OCP OTP OVP Remote On/Off SCP UVLO	1	75 W	1.5 kV	3.3 V	100 °C	-40 °C	1/4 Brick 8-DIP Module	36 V	Quarter Brick	9 V	Active High Enable	Isolated Module	UL	81 %	60950-1
CUI Inc. VQB75W-Q48-S12	ITE (Commercial)	6.25 A	Through Hole	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	OCP OTP OVP Remote On/Off SCP UVLO	1	75 W	1.5 kV	12 V	100 °C	-40 °C	Quarter Brick	75 V	Quarter Brick	18 V	Active High Enable	Isolated Module	UL	86 %	60950-1
CUI Inc. VQB75W-Q48-S5	ITE (Commercial)	12 A	Through Hole	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	OCP OTP OVP Remote On/Off SCP UVLO	1	60 W	1.5 kV	5 V	100 °C	-40 °C	Quarter Brick	75 V	Quarter Brick	18 V	Active High Enable	Isolated Module	UL	85 %	60950-1
CUI Inc. VQB75W-Q24-S15	ITE (Commercial)	5 A	Through Hole	57.9 mm	2.28 in	1.45 in	12.7 mm	36.8 mm	0.5 in	OCP OTP OVP Remote On/Off SCP UVLO	1	75 W	1.5 kV	15 V	100 °C	-40 °C	1/4 Brick 8-DIP Module	36 V	Quarter Brick	9 V	Active High Enable	Isolated Module		86 %
