EX-L262 Series

Catalog

SENSOR REFLECTIVE 70MM PNP

Part	Connection Method	Response Time	Voltage - Supply [Min]	Voltage - Supply [Max]	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Adjustment Type	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Cable Length	Cable Length	Light Source	Ingress Protection	Sensing Method	Output Configuration

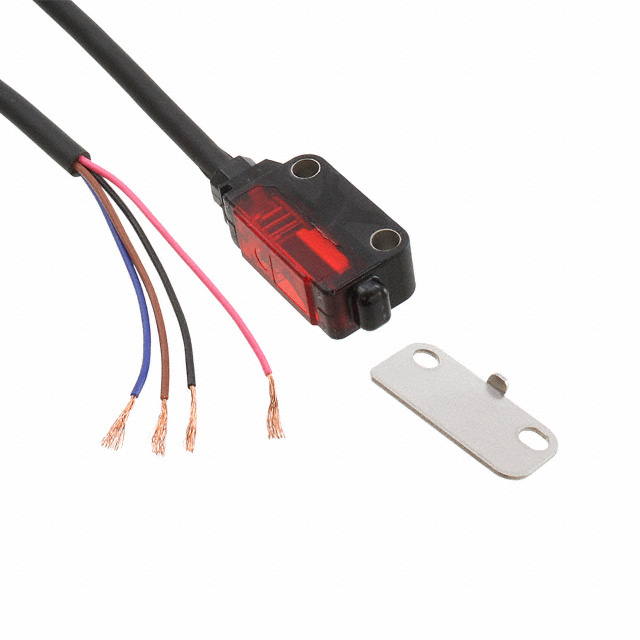

Panasonic Industrial Automation Sales EX-L262-P	Cable	500 µs	12 V	24 V	2.756 in	70 mm	0.787 in	20 mm	Adjustable	55 °C	-10 °C	78.74 in	2 m	Red Laser Diode (650nm)	IP67	Convergent Reflective	PNP - Open Collector
Panasonic Industrial Automation Sales EX-L262-C5	Cable	500 µs	12 V	24 V	2.756 in	70 mm	0.787 in	20 mm	Adjustable	55 °C	-10 °C	78.74 in	2 m	Red Laser Diode (650nm)	IP67	Convergent Reflective	NPN - Open Collector
Panasonic Industrial Automation Sales EX-L262-P-J	Cable	500 µs	12 V	24 V	2.756 in	70 mm	0.787 in	20 mm	Adjustable	55 °C	-10 °C	9.13 in	232 mm	Red Laser Diode (650nm)	IP67	Convergent Reflective	PNP - Open Collector
