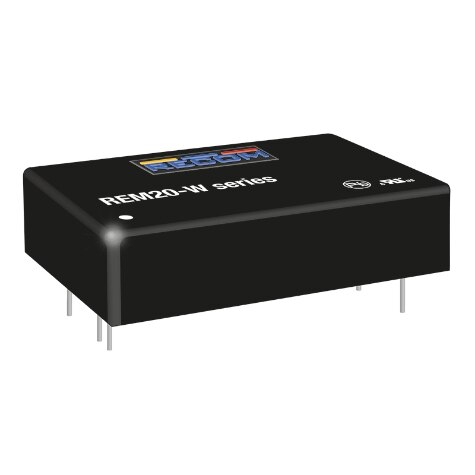

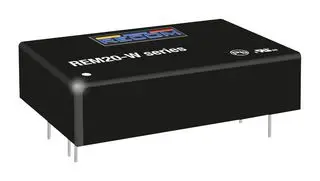

REM20-W Series
Manufacturer: Recom Power
Beta
⌘K
ISOLATED DC/DC CONVERTERS - SMD 20W 18-75VIN +/-12VOUT 833MA
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output 1 | Package / Case | Type | Applications | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Features | Voltage - Input (Min) [Min] | Efficiency | Number of Outputs | Voltage - Input (Max) [Max] | Mounting Type | Power (Watts) | Voltage - Output 2 | Current - Output (Max) | Current - Output (Max) | Voltage - Isolation | Current - Output (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Recom Power | 105 C | -40 °C | 12 V | 6-DIP Module 5 Leads | Isolated Module | ITE (Commercial) Medical | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | OCP OTP OVP SCP UVLO | 18 V | 88.5 % | 2 | 75 V | Through Hole | 20 W | -12 V | 833 mA | 833 mA | 5000 V | |
 Recom Power | 105 C | -40 °C | 12 V | 6-DIP Module | Isolated Module | ITE (Commercial) Medical | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | OCP OTP OVP Remote On/Off SCP UVLO | 18 V | 88.5 % | 2 | 75 V | Through Hole | 20 W | -12 V | 833 mA | 833 mA | 5000 V | |
 Recom Power | 105 C | -40 °C | 15 V | 6-DIP Module | Isolated Module | ITE (Commercial) Medical | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | OCP OTP OVP Remote On/Off SCP UVLO | 9 V | 88 % | 1 | 36 V | Through Hole | 20 W | 5000 V | 1.333 A | |||
Recom Power | 105 C | -40 °C | 5 V | 6-DIP Module | Isolated Module | ITE (Commercial) Medical | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | OCP OTP OVP Remote On/Off SCP UVLO | 9 V | 87 % | 1 | 36 V | Through Hole | 20 W | 5000 V | 4 A | |||
Recom Power | 105 C | -40 °C | 5 V | 6-DIP Module 5 Leads | Isolated Module | ITE (Commercial) Medical | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | OCP OTP OVP SCP UVLO | 18 V | 1 | 75 V | Through Hole | 20 W | 5000 V | 4 A | ||||
Recom Power | 105 C | -40 °C | 12 V | 6-DIP Module | Isolated Module | ITE (Commercial) Medical | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | OCP OTP OVP Remote On/Off SCP UVLO | 9 V | 88.5 % | 1 | 36 V | Through Hole | 20 W | 5000 V | 1.667 A | |||
Recom Power | 105 C | -40 °C | 15 V | 6-DIP Module | Isolated Module | ITE (Commercial) Medical | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | OCP OTP OVP Remote On/Off SCP UVLO | 18 V | 88 % | 2 | 75 V | Through Hole | 20 W | -15 V | 667 mA | 667 mA | 5000 V | |
Recom Power | 105 C | -40 °C | 24 V | 6-DIP Module | Isolated Module | ITE (Commercial) Medical | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | OCP OTP OVP Remote On/Off SCP UVLO | 18 V | 88.5 % | 1 | 75 V | Through Hole | 20 W | 5000 V | 833 mA | |||
Recom Power | 105 C | -40 °C | 24 V | 6-DIP Module | Isolated Module | ITE (Commercial) Medical | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | OCP OTP OVP Remote On/Off SCP UVLO | 9 V | 88 % | 1 | 36 V | Through Hole | 20 W | 5000 V | 833 mA | |||
Recom Power | 105 C | -40 °C | 5 V | 6-DIP Module 5 Leads | Isolated Module | ITE (Commercial) Medical | 25.4 mm | 10.2 mm | 1.6 " | 40.6 mm | 0.4 " | 1 " | OCP OTP OVP SCP UVLO | 9 V | 86 % | 2 | 36 V | Through Hole | 20 W | -5 V | 5000 V | 2 A |
