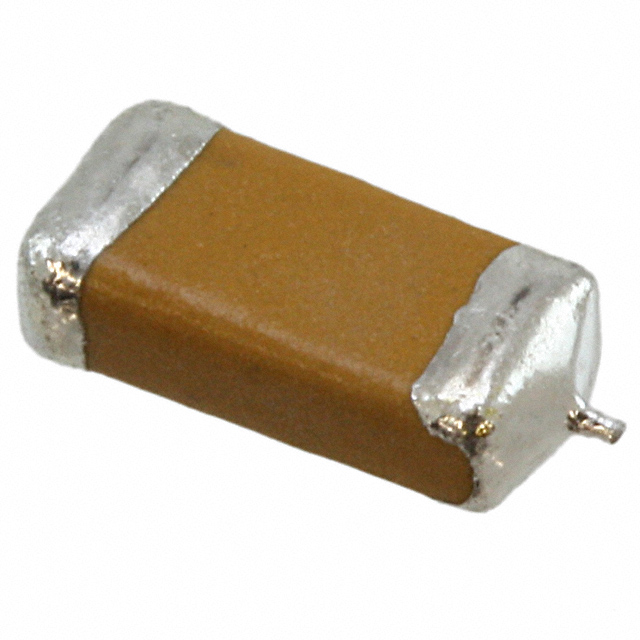

F75 Series
Manufacturer: KYOCERA AVX
Beta
⌘K
SURFACE MOUNT TANTALUM CAPACITOR, 1500 ΜF, 4 V, 2824 [7260 METRIC], ± 20%, 0.12 OHM, R
| Part | Voltage - Rated | Package / Case | Package / Case | ESR (Equivalent Series Resistance) | Type | Manufacturer Size Code | Tolerance | Operating Temperature [Min] | Operating Temperature [Max] | Features | Capacitance | Mounting Type | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Lifetime @ Temp. | Size / Dimension [y] | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 KYOCERA AVX | 4 V | 2824 | 7260 Metric | 120 mOhm | Conformal Coated | R | 20 % | -55 C | 125 °C | General Purpose | 1.5 mF | Surface Mount | 0.283 " | 0.236 " | 7.2 mm | 6 mm | ||||
 KYOCERA AVX | 6.3 VDC | 2824 | 7260 Metric | 80 mOhm | Conformal Coated | M | 20 % | -55 C | 125 °C | General Purpose | 2200 µF | Surface Mount | 0.283 " | 0.236 " | 7.2 mm | 6 mm | 2000 Hrs | |||
 KYOCERA AVX | 10 V | 2812 (7132 Metric) | 200 mOhm | Conformal Coated | 10 % | -55 C | 125 °C | General Purpose | 220 µF | Surface Mount | 0.28 in | 0.126 in | 7.1 mm | 3.2 mm | ||||||
 KYOCERA AVX | 10 V | 2812 (7132 Metric) | 200 mOhm | Conformal Coated | 20 % | -55 C | 125 °C | General Purpose | 220 µF | Surface Mount | 0.28 in | 0.126 in | 7.1 mm | 3.2 mm | ||||||
KYOCERA AVX | 4 V | 2824 | 7260 Metric | 120 mOhm | Conformal Coated | R | 20 % | -55 C | 125 °C | General Purpose | 1000 µF | Surface Mount | 0.283 " | 0.236 " | 7.2 mm | 6 mm | ||||
 KYOCERA AVX | 10 V | 2812 (7132 Metric) | 150 mOhm | Conformal Coated | U | 10 % | -55 C | 125 °C | General Purpose | 470 µF | Surface Mount | 0.28 in | 0.126 in | 7.1 mm | 2000 Hrs | 3.2 mm | 0.079 in | 2 mm |
