302-S34 Series

Catalog

CONN HEADER VERT 34POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Mounting Type	Features	Contact Finish Thickness - Mating	Contact Material	Contact Finish - Mating	Contact Type	Number of Positions [custom]	Number of Rows [custom]	Fastening Type	Contact Finish - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Length - Post [x]	Contact Length - Post [x]	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height	Insulation Height	Style	Number of Positions Loaded	Voltage Rating	Contact Shape	Termination	Pitch - Mating	Pitch - Mating	Shrouding	Insulation Material	Insulation Color	Connector Type	Current Rating (Amps)

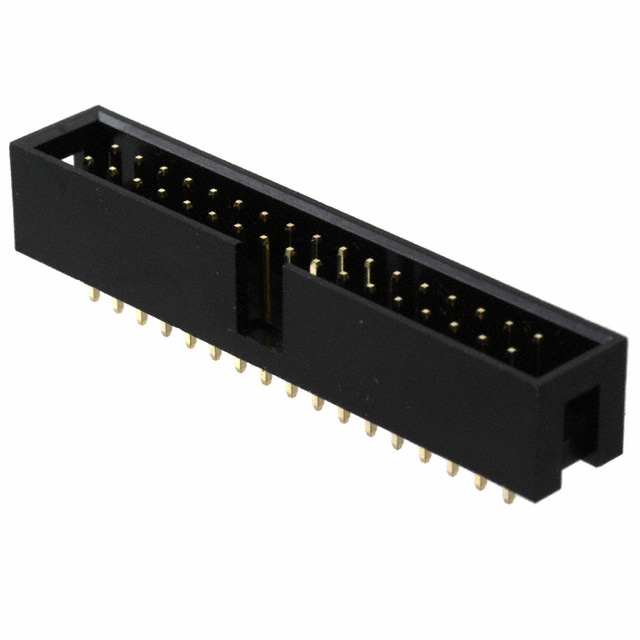

On Shore Technology Inc. 302-S341	1.25 µin	0.032 µm	Through Hole	Keying Slot	Flash	Brass	Gold	Male Pin	34	2	Push-Pull	Gold	0.1 in	2.54 mm	0.122 in	3.1 mm	UL94 V-0	-40 C	105 ░C	0.358 "	9.1 mm	Board to Cable/Wire	All	250 V	Square	Solder	0.1 "	2.54 mm	Shrouded - 4 Wall	Polyester Glass Filled	Black	Header	3 A
