WR9QA1200 Series

Catalog

AC/DC WALL MOUNT ADAPTER 5V 6W

Part	Standard Number	Efficiency	Voltage - Input [Max]	Voltage - Input [Min]	Current - Output (Max) [Max]	Region Utilized	Approval Agency	Input Connector	Power (Watts)	Input Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Cord Length	Cord Length	Output Connector	Form	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Output	Applications	No Load Power Consumption	Output Connector [x]	Output Connector [diameter]	Size / Dimension [z]	Size / Dimension [y]	Polarization	Output Connector [custom]	Output Connector [custom]

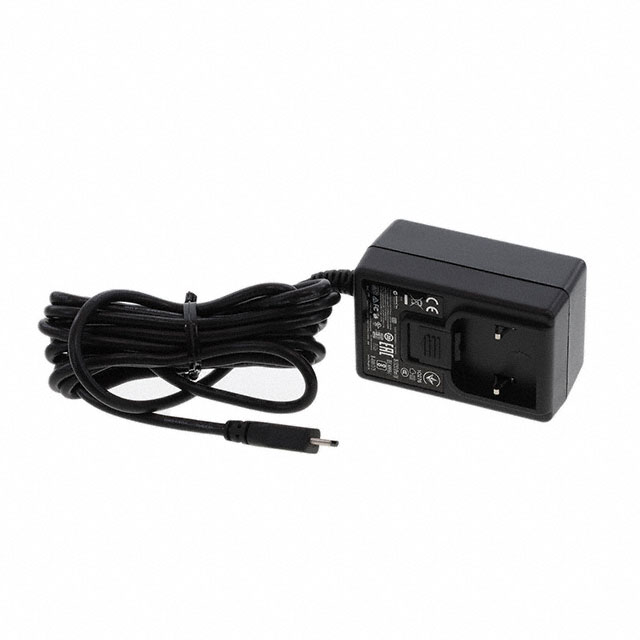

GlobTek, Inc. WR9QA1200MICB-N(R6B)	60950-1	CoC Tier 2 Level VI	264 VAC	90 VAC	1.2 A	International	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI	Multi-Blade (Sold Separately)	6 W	Multi-Blade (Sold Separately)	1.24 "	62 mm	2.44 "	1.59 "	40.5 mm	31.5 mm	1.83 m	72 in	USB Micro	Wall Mount	40 °C	0 °C	5 V	ITE (Commercial)	75 mW
GlobTek, Inc. WR9QA1200CCPNAIMR6B	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	264 VAC	90 VAC	1.2 A	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	Multi-Blade (Sold Separately)	6 W	Multi-Blade (Sold Separately)	1.45 in	43.5 mm	1.71 "	2.91 in			1.2 m	47.2 in	Barrel Plug	Wall Mount	50 °C	-20 ░C	5 V	Household Appliances ITE (Commercial) Medical	75 mW	11 mm	2.1 mm 5.5 mm	36.8 mm	74 mm	Positive Center
GlobTek, Inc. WR9QA1200T00NAIMR6B	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	264 VAC	90 VAC	1.2 A	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	Multi-Blade (Sold Separately)	6 W	Multi-Blade (Sold Separately)	1.45 in	43.5 mm	1.71 "	2.91 in			1.5 m	59 in	Barrel Plug Kit (1.3mm x 3.5mm	Wall Mount	50 °C	-20 ░C	5 V	Household Appliances ITE (Commercial) Medical	75 mW			36.8 mm	74 mm
GlobTek, Inc. WR9QA1200MICB-IMR6W		CoC Tier 2 Level VI	264 VAC	90 VAC	1.2 A	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	Multi-Blade	6 W	Multi-Blade (Sold Separately)	1.45 in	74 mm	2.91 in	1.71 in	43.5 mm	36.8 mm	1.5 m	59 in	USB Micro	Wall Mount	50 °C	-10 °C	5 V	Household Appliances ITE (Commercial) Medical	75 mW

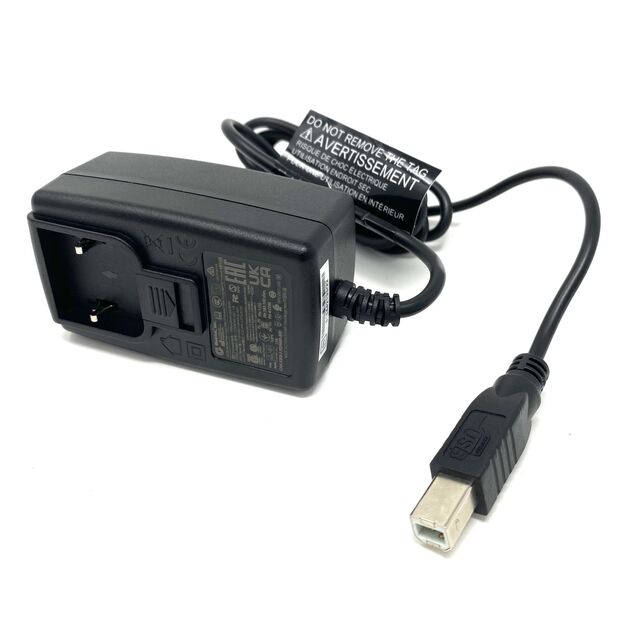

GlobTek, Inc. WR9QA1200USBBCMEDR6B	60335-1 60601-1 60950-1 62368-1	CoC Tier 2 Level VI	264 VAC	90 VAC	1.2 A	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	Multi-Blade	6 W	Multi-Blade (Sold Separately)	1.45 in	74 mm	2.91 in	1.71 in	43.5 mm	36.8 mm	1.5 m	59 in	USB B Plug	Wall Mount	50 °C	-10 °C	5 V	Household Appliances ITE (Commercial) Medical	75 mW

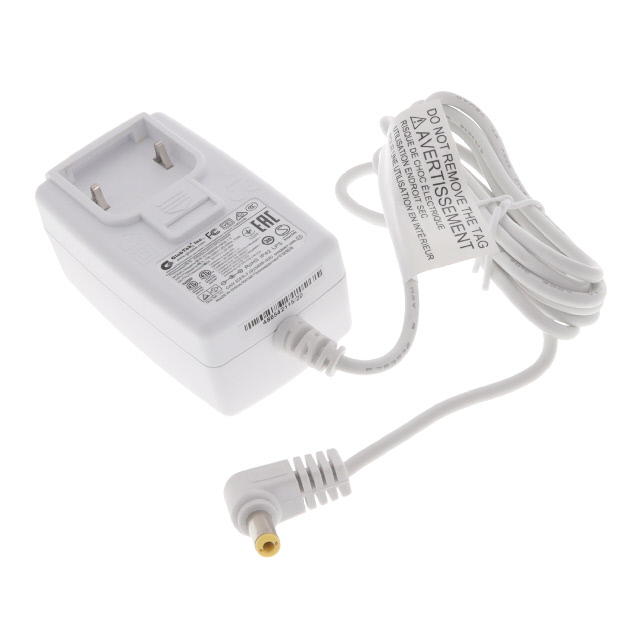

GlobTek, Inc. WR9QA1200CRPCIMR6W		CoC Tier 2 Level VI	264 VAC	90 VAC	1.2 A	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	Multi-Blade	6 W	Multi-Blade (Sold Separately)	1.45 in	74 mm	2.91 in	1.71 in	43.5 mm	36.8 mm	1.5 m	59 in	Barrel Plug R/A	Wall Mount	50 °C	-10 °C	5 V	Household Appliances ITE (Commercial) Medical	75 mW	11 mm				Positive Center	5.5 mm	2.1 mm
GlobTek, Inc. WR9QA1200T00-IMR6B	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	Level VI	264 VAC	90 VAC	1.2 A	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	Multi-Blade (Sold Separately)	6 W	Multi-Blade (Sold Separately)	1.45 in	43.5 mm	1.71 "	2.91 in			1.5 m	59 in	Barrel Plug Kit (1.3mm x 3.5mm	Wall Mount	50 °C	-20 ░C	5 V	Household Appliances ITE (Commercial) Medical	75 mW			36.8 mm	74 mm
GlobTek, Inc. WR9QA1200MICBIMEUR6B		CoC Tier 2 Level VI	264 VAC	90 VAC	1.2 A	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	Multi-Blade	6 W	Multi-Blade (Sold Separately)	1.45 in	74 mm	2.91 in	1.71 in	43.5 mm	36.8 mm	1.5 m	59 in	USB Micro	Wall Mount	50 °C	-10 °C	5 V	Household Appliances ITE (Commercial) Medical	75 mW

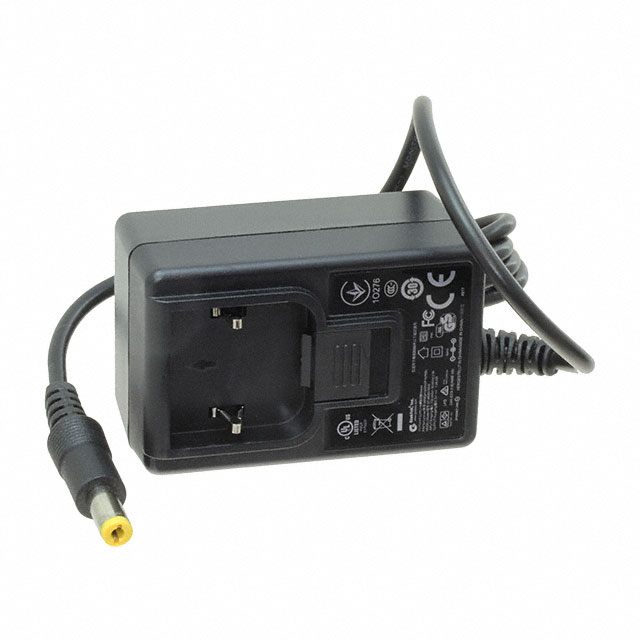

GlobTek, Inc. WR9QA1200CCP-N(R6B)	60950-1	Level VI	264 VAC	90 VAC	1.2 A	International	BSI CB CCC CE cULus EAC FCC GS LPS PSE RCM UkrSEPRO VCCI	Multi-Blade (Sold Separately)	6 W	Multi-Blade (Sold Separately)	1.18 in	40.5 mm	1.59 in	2.52 in	64 mm	30 mm	1.23 m	48.4 in	Barrel Plug	Wall Mount	40 °C	0 °C	5 V	ITE (Commercial)	75 mW	11 mm	2.1 mm 5.5 mm			Positive Center

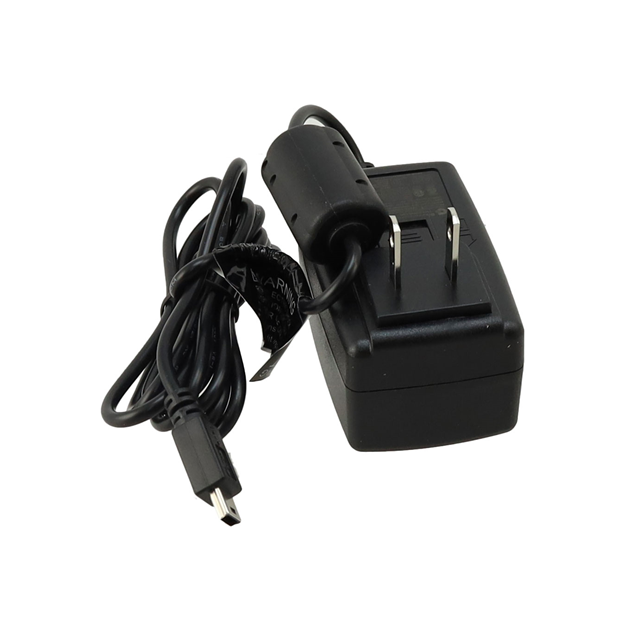

GlobTek, Inc. WR9QA1200MSBNAMEDR6B	1310 60335-1 60601-1-11 60601-1-2 60950-1 62368-1	CoC Tier 2 Level VI	264 VAC	90 VAC	1.2 A	International	BSI CB CCC CE cETLus EAC ETL FCC LPS PSE S-Mark UkrSEPRO UL VCCI	Multi-Blade (Sold Separately)	6 W	Multi-Blade (Sold Separately)	1.45 in	74 mm	2.91 in	1.71 in	43.5 mm	36.8 mm	1.5 m	59 in	USB Mini	Wall Mount	50 °C	-10 °C	5 V	Household Appliances ITE (Commercial) Medical	75 mW
