ANT-B5 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

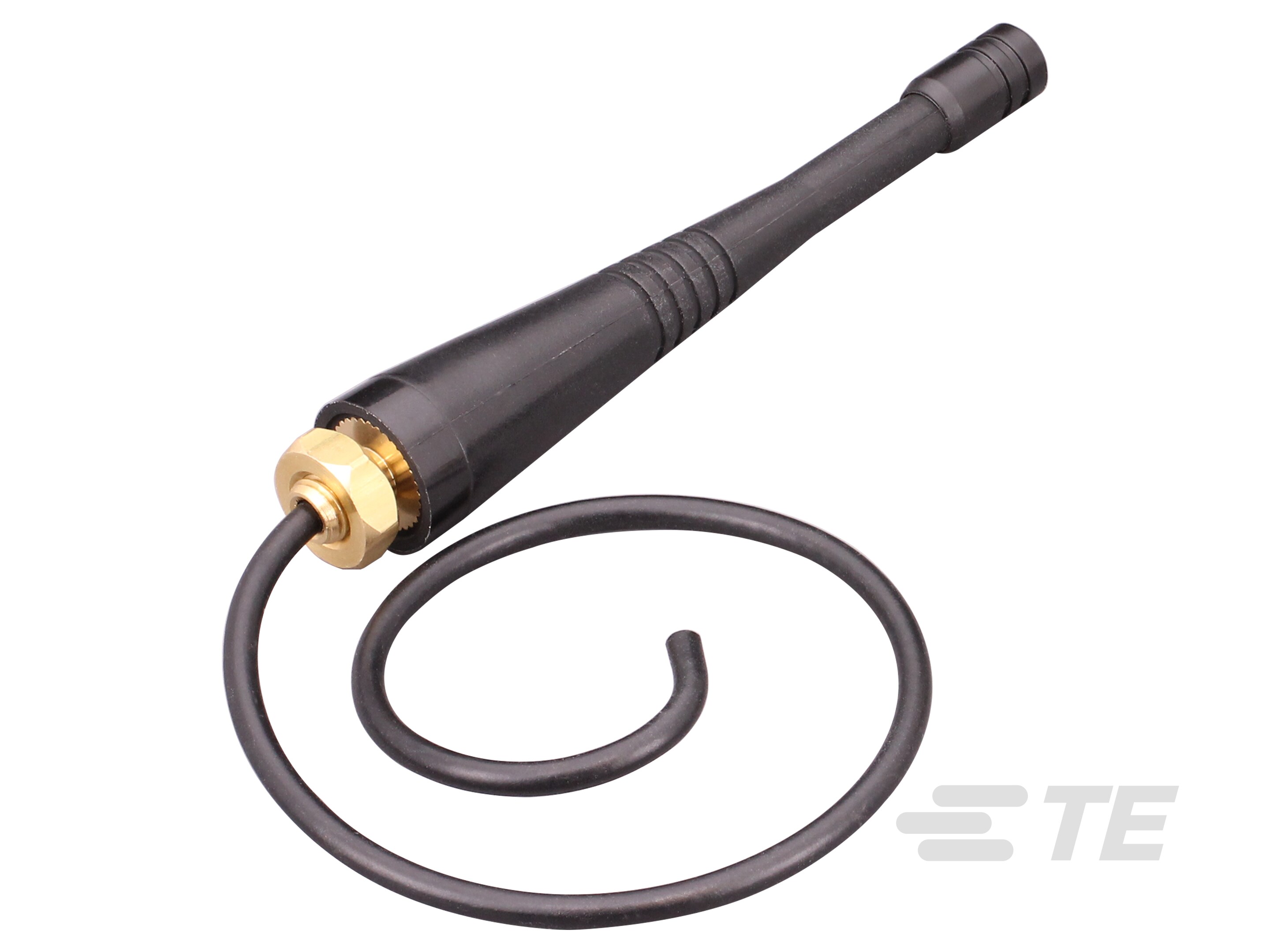

ANTENNA 1/4 WAVE WHIP LTE B5 RG174
| Part | Features | Applications | Gain | Antenna Type | RF Family/Standard | Frequency (Center/Band) | VSWR | Frequency Group [Max] | Frequency Group | Frequency Group [Min] | Number of Bands | Height (Max) [z] | Height (Max) [z] | Frequency Range [Max] | Frequency Range [Min] | Power - Max [Max] | Termination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Cable - 216mm O-Ring Compatible | Cellular GSM LTE NB-IoT UMTS | 1.2 dBi | Whip Straight | Cellular | 854 MHz | 2 | 1 GHz | UHF | 300 MHz | 1 | 3.287 in | 83.5 mm | 900 MHz | 800 MHz | 10 W | Solder | Panel Mount |

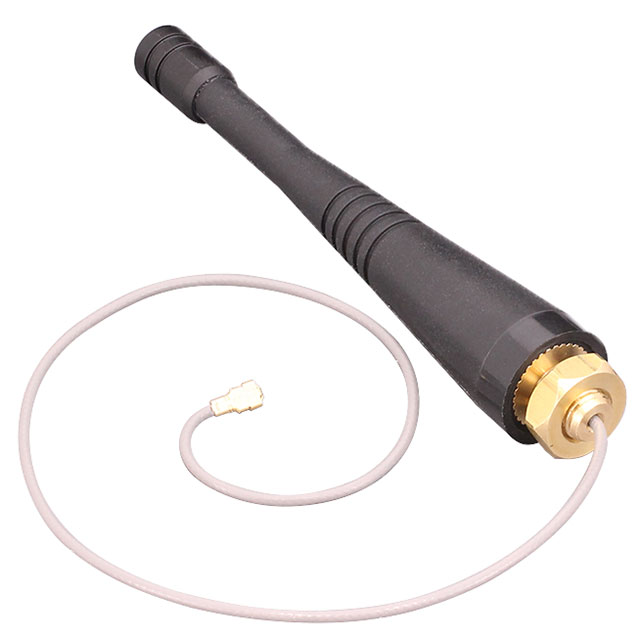

 TE Connectivity AMP Connectors | Cable - 216mm O-Ring Compatible | Cellular GSM LTE NB-IoT UMTS | 1.2 dBi | Whip Straight | Cellular | 854 MHz | 2 | 1 GHz | UHF | 300 MHz | 1 | 3.287 in | 83.5 mm | 900 MHz | 800 MHz | 10 W | I-PEX MHF1 U.FL (UMCC) | Panel Mount |
