AX Series
Manufacturer: Rubycon
Beta
⌘K
ALUMINUM ELECTROLYTIC CAPACITORS - RADIAL LEADED GENERAL PURPOSE ELECTROLYTIC CAPACITORS
| Part | Lifetime @ Temp. | Mounting Type | Tolerance | Applications | Lead Spacing | Lead Spacing | Capacitance | Package / Case | Ripple Current @ Low Frequency | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Rated | Height - Seated (Max) [Max] | Height - Seated (Max) [Max] | Polarization | Size / Dimension [diameter] | Size / Dimension [diameter] | Ripple Current @ High Frequency | Impedance | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Rubycon | 1000 Hrs | Through Hole | 20 % | General Purpose | 0.138 in | 3.5 mm | 470 µF | Can Radial | 594 mA | -40 C | 105 ░C | 6.3 VDC | 0.335 " | 8.5 mm | Polar | 0.315 in | 8 mm | 1.08 A | ||

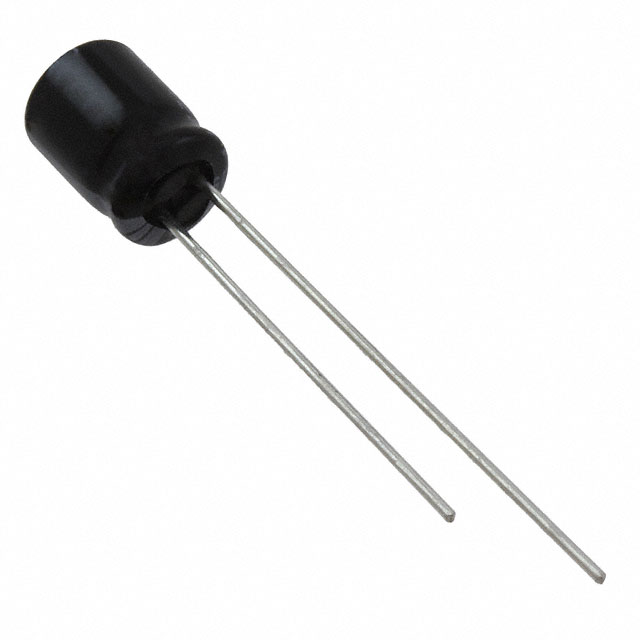

 Rubycon | 1000 Hrs | Through Hole | 20 % | General Purpose | 0.098 in | 2.5 mm | 0.082 mF | Can Radial | -40 C | 105 ░C | 6.3 VDC | 0.335 " | 8.5 mm | Polar | 0.197 in | 5 mm | 250 mOhms | |||

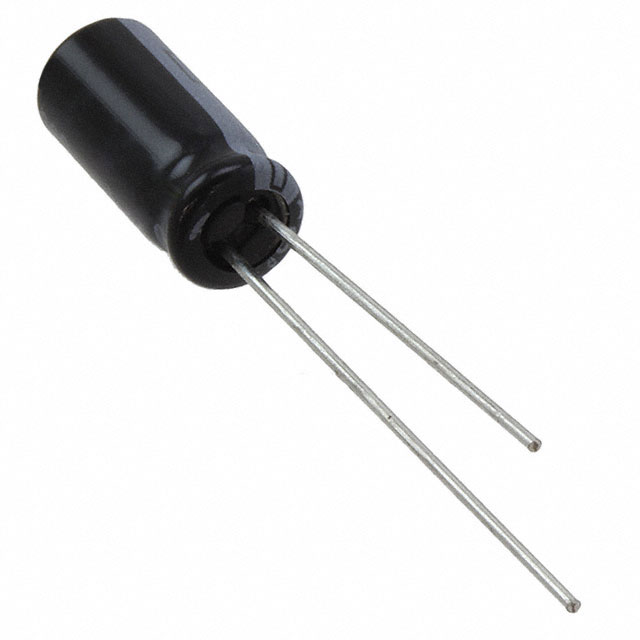

 Rubycon | 2000 Hrs | Through Hole | 20 % | General Purpose | 0.079 in | 2 mm | Can Radial | -40 C | 105 ░C | 8 V | 0.492 in | Polar | 0.197 in | 5 mm | 140 mOhms | 12.5 mm |
