747043 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

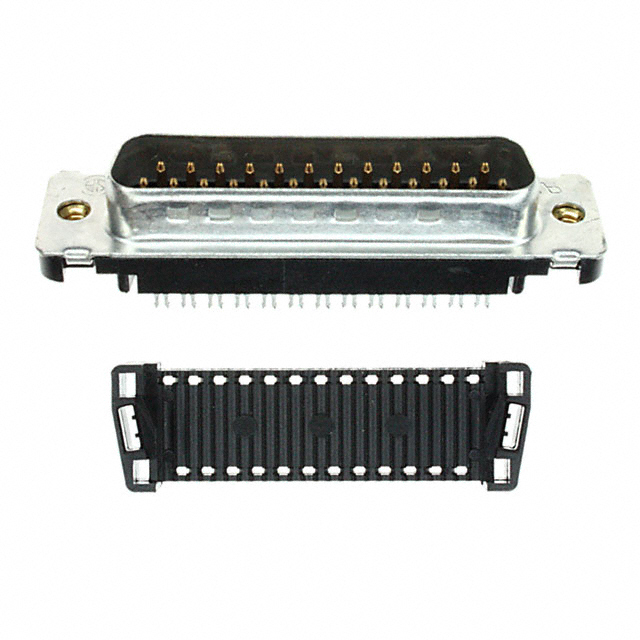

CONN D-SUB PLUG 25POS IDC
| Part | Dielectric Material | Contact Material | Color | Operating Temperature [Min] | Operating Temperature [Max] | Current Rating (Amps) | Mounting Type | Contact Finish Thickness | Contact Finish Thickness | Features | Connector Type | Connector Style | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Number of Rows [custom] | Material Flammability Rating | Number of Positions | Flange Feature | Flange Feature | Contact Type | Termination | Contact Finish | Shell Size, Connector Layout |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Thermoplastic | Phosphor Bronze | Black | -55 C | 105 ░C | 1.25 A | Free Hanging (In-Line) | 30 Áin | 0.76 Ám | Feed Through Grounding Indents | Plug Male Pins | D-Sub | B DB | 3 | 2 | UL94 V-0 | 25 | Housing/Shell | 4-40 | Signal | IDC Ribbon Cable | Gold | |

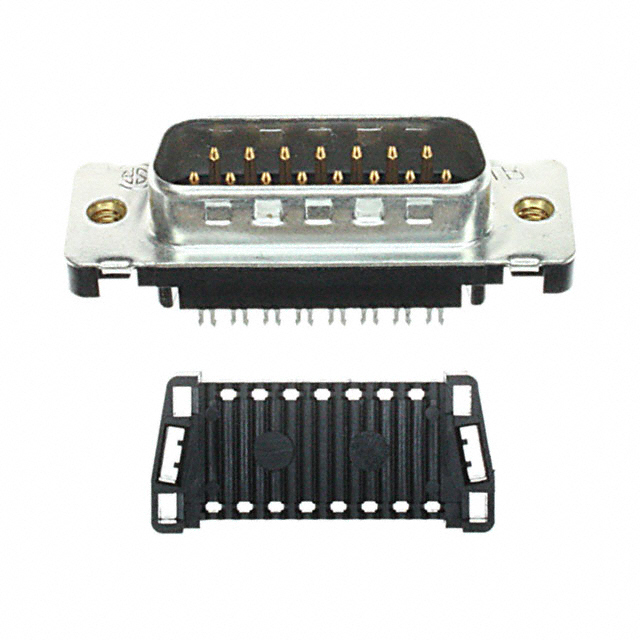

 TE Connectivity AMP Connectors | Thermoplastic | Phosphor Bronze | Black | -55 C | 105 ░C | 1.25 A | Free Hanging (In-Line) | 30 Áin | 0.76 Ám | Feed Through Grounding Indents | Plug Male Pins | D-Sub | 2 | UL94 V-0 | 15 | Housing/Shell | 4-40 | Signal | IDC Ribbon Cable | Gold | 2 |
