TPS62912 Series
Manufacturer: Texas Instruments
Beta
⌘K
17-VIN, 2-A LOW-NOISE AND LOW-RIPPLE BUCK CONVERTER WITH INTEGRATED FERRITE BEAD FILTER COMPENSATION
| Part | Topology | Function | Output Type | Output Configuration | Operating Temperature [Min] | Operating Temperature [Max] | Voltage - Input (Min) [Min] | Voltage - Input (Max) [Max] | Frequency - Switching | Supplier Device Package | Supplier Device Package [y] | Supplier Device Package [x] | Number of Outputs | Voltage - Output (Max) [Max] | Package / Case | Current - Output | Synchronous Rectifier | Voltage - Output (Min/Fixed) | Mounting Type | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Main Purpose | Voltage - Input | Contents | Voltage - Output | Regulator Topology | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

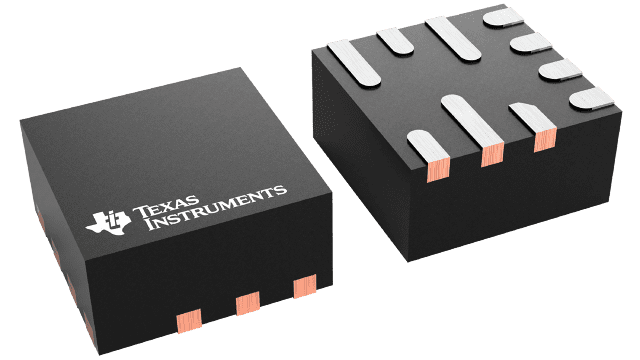

 Texas Instruments | Buck | Step-Down | Adjustable | Positive | -40 °C | 150 °C | 3 V | 17 V | 1 MHz 2.2 MHz | 10-VQFN-HR | 2 | 2 | 1 | 5.5 V | 10-PowerVFQFN | 2 A | 0.8 V | Surface Mount | |||||||||||

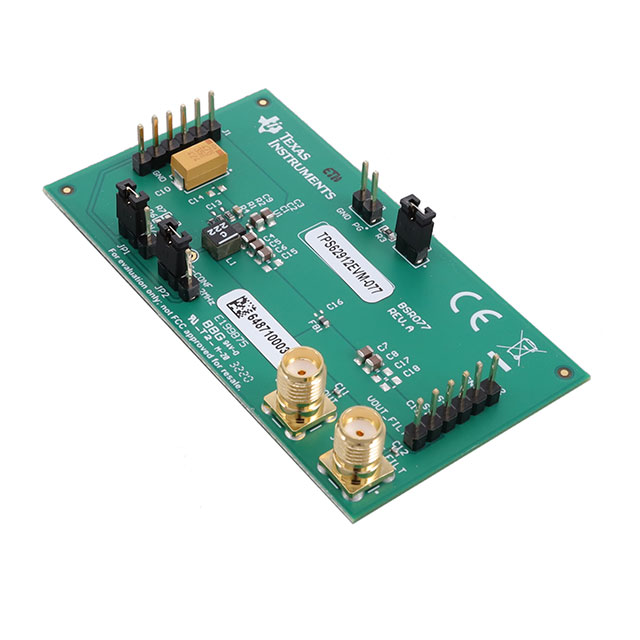

 Texas Instruments | 2.2 MHz | 2 A | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | DC/DC Step Down | 17 V | Board(s) | 3.3 V | Buck | TPS6291 |
