C878AF Series

Manufacturer: KEMET

Catalog

CAP FILM 8UF 470VAC PP 5%( 30 X 78MM) ALUMINUM CYLINDRICAL CAN 85°C

Part	Capacitance	Termination	Termination	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Tolerance	Dielectric Material	Package / Case	Size / Dimension	Size / Dimension [diameter]	Mounting Type	Lead Spacing	Lead Spacing	Applications	Voltage Rating - AC	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Size / Dimension [diameter]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max)
KEMET C878AF24800AA0J	8 µF	6.3 mm	Quick Connect	0.25 "	85 °C	-25 °C	5 %	Polypropylene (PP) Metallized	Can Radial	30 mm	1.181 "	Chassis Stud Mount	0.394 in	10 mm	Motor Run	470 V	3.15 "	80 mm
KEMET C878AF24600AA1J	6 µF	6.3 mm	Quick Connect	0.25 "	85 °C	-25 °C	5 %	Polypropylene (PP) Metallized	Can Radial	30 mm	1.181 "	Chassis Stud Mount	0.394 in	10 mm	Motor Run	470 V	3.15 "	80 mm
KEMET C878AF14400ZA4J	4 µF	2.8 mm	Quick Connect	0.11 "	85 °C	-25 °C	5 %	Polypropylene (PP) Metallized	Can Radial			Chassis Stud Mount			Motor Run	470 V
KEMET C878AF25100AA0J	10 µF	6.3 mm	Quick Connect	0.25 "	85 °C	-25 °C	5 %	Polypropylene (PP) Metallized	Can Radial		1.378 "	Chassis Stud Mount	0.394 in	10 mm	Motor Run	470 V	3.15 "	80 mm	35 mm

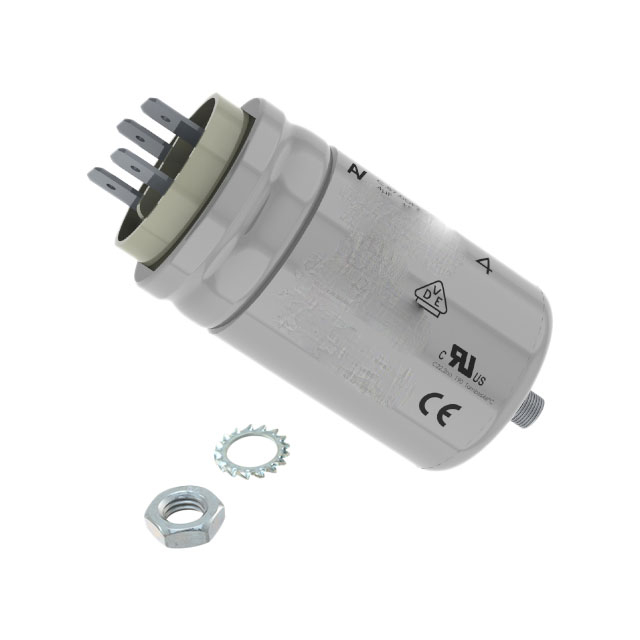

KEMET C878AF35120AA0J	12 µF		Disconnect Quick Connect		85 °C	-25 °C	5 %	Polypropylene (PP) Metallized	Can Radial	30 mm	1.181 " 1.378 "	Chassis Mount	0.528 in	13.4 mm	Motor Run	470 V	3.15 "	80 mm	35 mm
KEMET C878AF24400TF1J	4 µF		Disconnect Quick Connect		85 °C	-25 °C	5 %	Polypropylene (PP) Metallized	Can Radial		1.378 "	Chassis Mount	0.394 in	10 mm	Motor Run	470 V			35 mm	1.969 in	50 mm
KEMET C878AF45160AA1J	16 µF	2.8 mm	Quick Connect	0.11 "	85 °C	-25 °C	5 %	Polypropylene (PP) Metallized	Can Radial			Chassis Stud Mount			Motor Run	470 V
KEMET C878AF34350AA4J	3.5 µF	6.3 mm	Quick Connect	0.25 "	85 °C	-25 °C	5 %	Polypropylene (PP) Metallized	Can Radial		1.378 "	Chassis Stud Mount	0.528 in	13.4 mm	Motor Run	470 V			35 mm	1.969 in	50 mm
KEMET C878AF24500AA1J	5 µF	6.3 mm	Quick Connect	0.25 "	85 °C	-25 °C	5 %	Polypropylene (PP) Metallized	Can Radial		0.984 "	Chassis Stud Mount	0.394 in	10 mm	Motor Run	470 V	2.303 in		25 mm			58.5 mm
KEMET C878AF25120AA0J	12 µF	6.3 mm	Quick Connect	0.25 "	85 °C	-25 °C	5 %	Polypropylene (PP) Metallized	Can Radial		1.378 "	Chassis Stud Mount	0.394 in	10 mm	Motor Run	470 V	3.15 "	80 mm	35 mm
