4SX1 Series

Catalog

SWITCH SNAP ACTION SPDT 7A 250V

Part	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating - AC	Operating Force	Release Force	Switch Function	Termination Style	Pretravel	Pretravel	Operating Position	Operating Position	Differential Travel	Differential Travel	Mounting Type	Overtravel [custom]	Overtravel [custom]	Mechanical Life	Voltage Rating - DC	Actuator Type
Honeywell Sensing and Productivity Solutions 4SX1-T2	SPDT	204 °C	-55 C	7 A	250 V	141 gf	28 gf	On-Mom	Solder Turret	0.02 in	0.5 mm	8.13 mm	0.32 "	0.005 in	0.13 mm	Chassis Mount	0.004 in	0.1 mm	1000000 Cycles	28 V	Round (Pin Plunger)

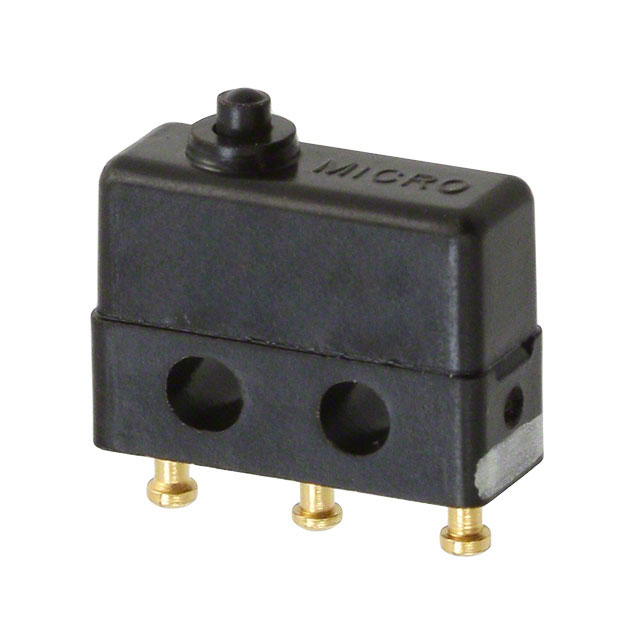

Honeywell Sensing and Productivity Solutions 4SX1-T	SPDT	204 °C	-55 C	7 A	250 V	141 gf	28 gf	On-Mom	Solder Turret	0.02 in	0.5 mm	8.13 mm	0.32 "	0.005 in	0.13 mm	Chassis Mount	0.004 in	0.1 mm	1000000 Cycles	28 V	Round (Pin Plunger)
