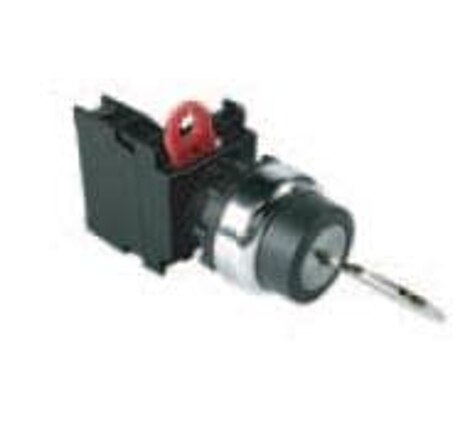

A22RK Series
Keylock Switches Key Selector, Left SPST-NO, 2-Position
Manufacturer: Omron Automation and Safety
Catalog
Keylock Switches Key Selector, Left SPST-NO, 2-Position
Beta
⌘K
Keylock Switches Key Selector, Left SPST-NO, 2-Position
Keylock Switches Key Selector, Left SPST-NO, 2-Position
Keylock Switches Key Selector, Left SPST-NO, 2-Position
| Part | Mechanical Life | Electrical Life | Actuator Type | Switch Function | Key Removable Positions [custom] | Termination Style | Contact Timing | Angle of Throw | Panel Cutout Dimensions [diameter] | Mounting Type | Current Rating (Amps) | Number of Positions | Operating Temperature [Min] | Operating Temperature [Max] | Features | Circuit | Voltage Rating - AC |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Automation and Safety | 300000 Cycles | 500000 Cycles | Flat Key | Off-On | Left | Screw Terminal | Not Specified | 90 ° | 22.3 mm | Panel Mount | 10 A | 2 | -20 ░C | 60 °C | IP65 | SPST-NO | 120 V |
