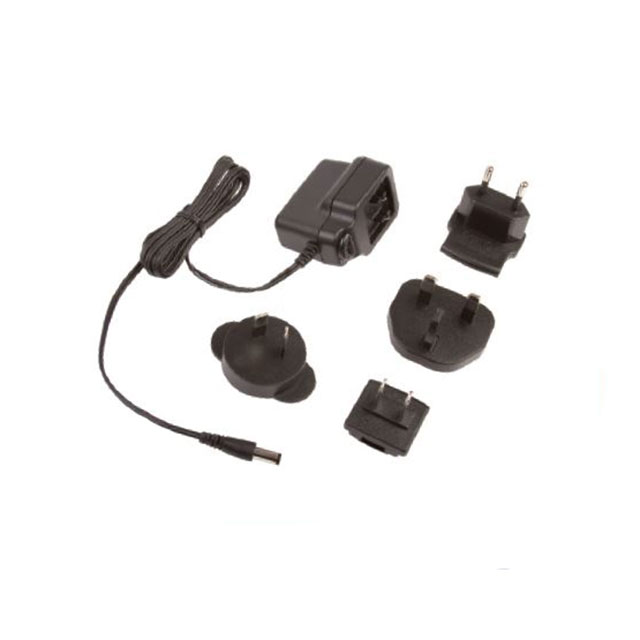

VER18 Series

Manufacturer: XP Power

Catalog

AC/DC POWER SUPPLY, 1 OUTPUT, 18 W, 9 V, 2 A

Part	Weight [custom]	Weight [custom]	Region Utilized	Output Connector [custom]	Output Connector [custom]	Output Connector	Output Connector [x]	Applications	Polarization	Input Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Input Connector	Voltage - Input [Max]	Voltage - Input [Min]	Form	Cord Length	Cord Length	Standard Number	Current - Output (Max) [Max]	Efficiency	No Load Power Consumption	Operating Temperature [Max]	Power (Watts)	Approval Agency	Voltage - Output
XP Power VER18US090-JA	0.177 lb	80.29 g	International	2.1 mm	5.5 mm	Barrel Plug	12 mm	ITE (Commercial)	Positive Center	Multi-Blade (Included)	43 mm	42.7 mm	3.54 in	1.69 "	90 mm	1.68 "	Multi-Blade	264 VAC	90 VAC	Wall Mount	1.5 m	59 in	62368-1	2 A	Level VI	100 mW	60 °C	18 W	CB	9 V
XP Power VER18US150-JA	0.177 lb	80.29 g	International	2.1 mm	5.5 mm	Barrel Plug	12 mm	ITE (Commercial)	Positive Center	Multi-Blade (Included)	43 mm	42.7 mm	3.54 in	1.69 "	90 mm	1.68 "	Multi-Blade	264 VAC	90 VAC	Wall Mount	1.5 m	59 in	62368-1	1.25 A	Level VI	100 mW	60 °C	19 W	CB	15 V

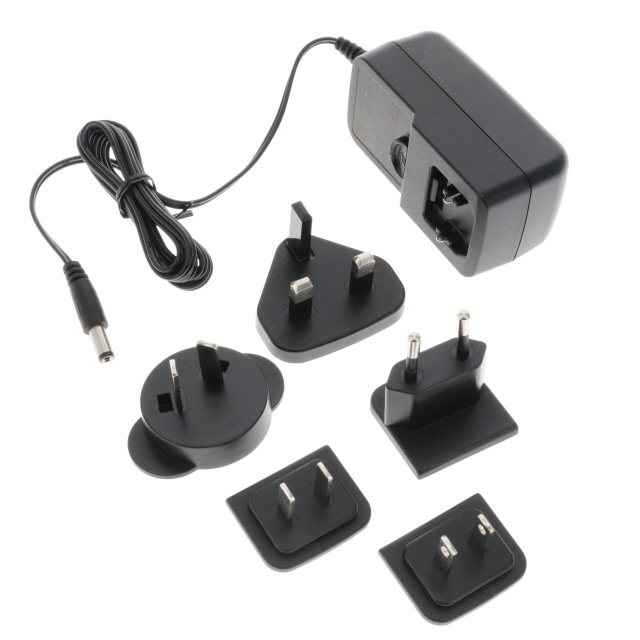

XP Power VER18US120-JA	0.177 lb	80.29 g	International	2.1 mm	5.5 mm	Barrel Plug	12 mm	ITE (Commercial)	Positive Center	Multi-Blade (Included)	43 mm	42.7 mm	3.54 in	1.69 "	90 mm	1.68 "	Multi-Blade	264 VAC	90 VAC	Wall Mount	1.5 m	59 in	62368-1	1.5 A	Level VI	100 mW	60 °C	18 W	CB	12 V
XP Power VER18US240-JA	0.177 lb	80.29 g	International	2.1 mm	5.5 mm	Barrel Plug	12 mm	ITE (Commercial)	Positive Center	Multi-Blade (Included)	43 mm	42.7 mm	3.54 in	1.69 "	90 mm	1.68 "	Multi-Blade	264 VAC	90 VAC	Wall Mount	1.5 m	59 in	62368-1	750 mA	Level VI	100 mW	60 °C	18 W	CB	24 V
