M18 Series

Catalog

CONN SPLICE 18-22 AWG CRIMP

Part	Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Terminal Type	Termination	Number of Wire Entries	Length - Termination [x]	Length - Termination [x]	Length - Ring Center to Termination [x]	Length - Ring Center to Termination [x]	Features	Width - Outer Edges [y]	Width - Outer Edges [y]	Mounting Type	Contact Finish	Stud/Tab Size	Length - Overall [x]	Length - Overall [x]	Contact Material	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness	Width - Outer Edges	Width - Outer Edges	Length - Ring Center to Termination [custom]	Length - Ring Center to Termination [custom]
3M Electronic Specialty M18BCK	Non-Insulated	22 AWG	17.5 AWG	Butt Splice Individual Openings Inline	Crimp	2
3M Electronic Specialty M18-8FX-BOTTLE	Non-Insulated	22 AWG	17.5 AWG	Standard	Crimp		0.25 in	6.35 mm	7.37 mm	0.29 in	Brazed Seam	0.34 in	8.64 mm	Free Hanging (In-Line)	Tin	8 Stud	0.7 in	17.78 mm	Copper ETP
3M Electronic Specialty M18-6R/SK	Non-Insulated	22 AWG	17.5 AWG	Circular	Crimp						Brazed Seam			Free Hanging (In-Line)		6 Stud	0.6 in	15.24 mm		6.35 mm	0.25 "	0.76 mm	0.03 in

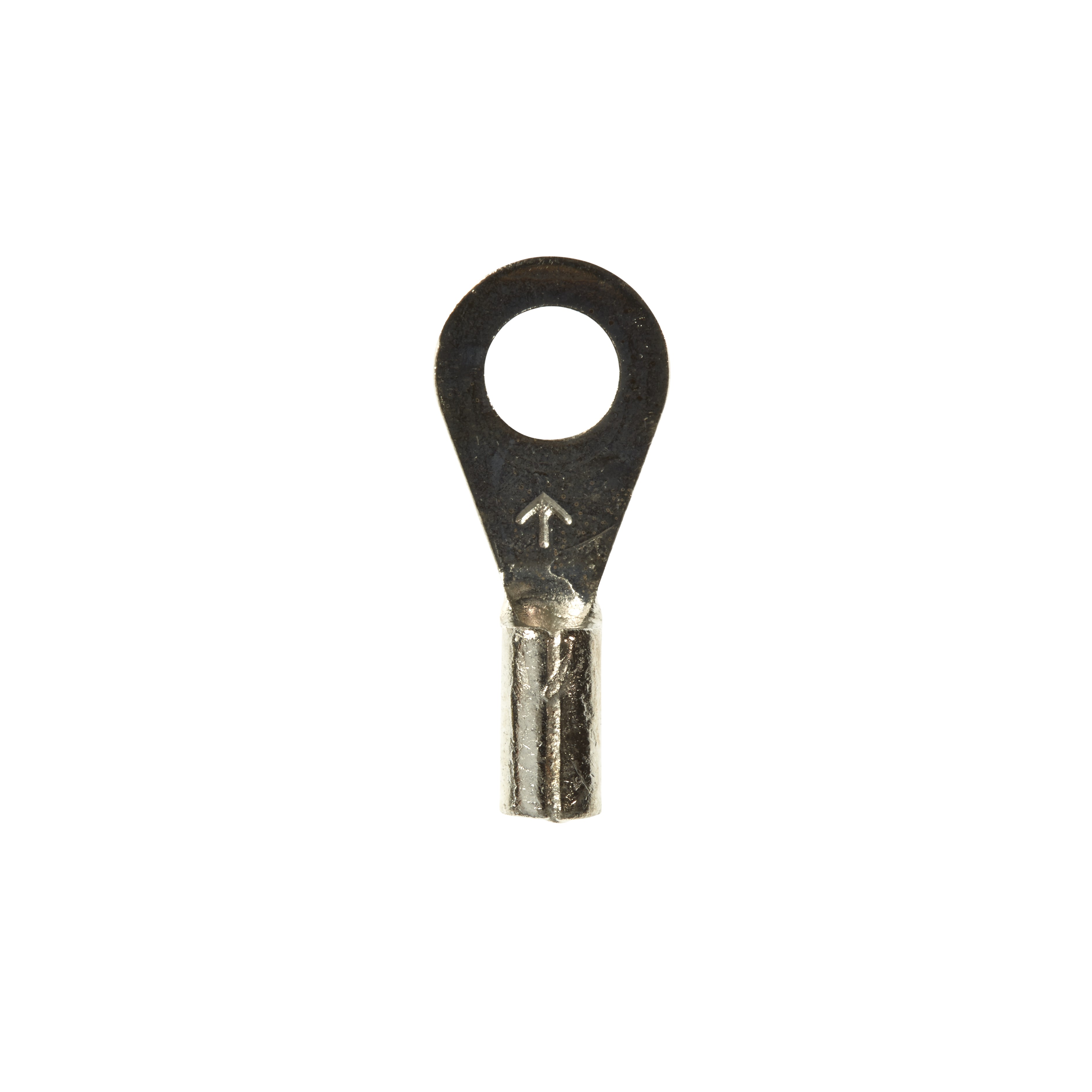

3M Electronic Specialty M18-8R/LK	Non-Insulated	22 AWG	17.5 AWG	Circular	Crimp						Brazed Seam			Free Hanging (In-Line)		8 Stud	0.74 in	18.8 mm				0.76 mm	0.03 in	7.87 mm	0.31 in
3M Electronic Specialty M18-8R/LX-BOTTLE	Non-Insulated	22 AWG	17.5 AWG	Circular	Crimp						Brazed Seam			Free Hanging (In-Line)	Tin	8 Stud	0.74 in	18.8 mm	Copper ETP			0.76 mm	0.03 in	7.87 mm	0.31 in
3M Electronic Specialty M18-6FBX	Non-Insulated	22 AWG	17.5 AWG	Standard	Crimp						Brazed Seam			Free Hanging (In-Line)	Tin	6 Stud	0.65 in	16.5 mm	Copper ETP							6.35 mm	0.25 "
3M Electronic Specialty M18-38RX-BOTTLE	Non-Insulated	22 AWG	17.5 AWG	Circular	Crimp						Brazed Seam			Free Hanging (In-Line)	Tin	0.375 Stud	0.93 in	23.62 mm	Copper ETP			0.76 mm	0.03 in	14.22 mm	0.56 in
3M Electronic Specialty M18-10FBX-BOTTLE	Non-Insulated	22 AWG	17.5 AWG	Standard	Crimp						Brazed Seam			Free Hanging (In-Line)	Tin	10 Stud	0.65 in	16.5 mm	Copper ETP							6.35 mm	0.25 "
3M Electronic Specialty M18BCX-BOTTLE	Non-Insulated	22 AWG	17.5 AWG	Butt Splice Individual Openings Inline	Crimp	2
