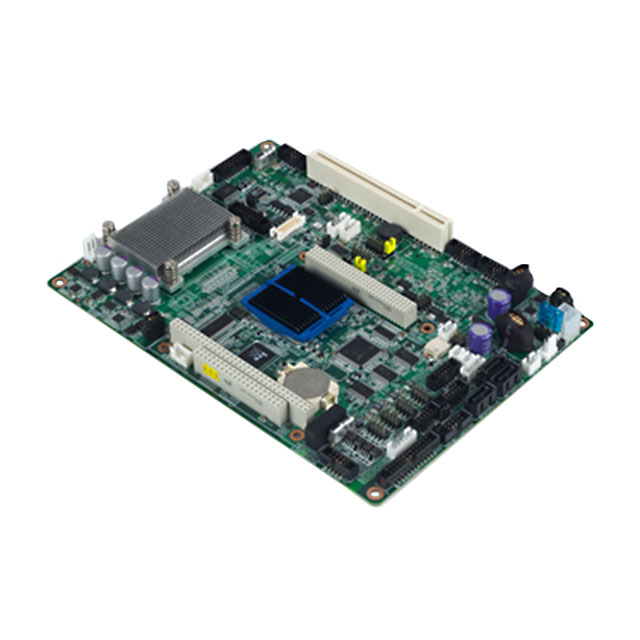

PCM-9562 Series
Manufacturer: Advantech Corporation
Beta
⌘K
SBC 1.66GHZ 1 CORE 2GB/0GB RAM
| Part | RS-232 (422, 485) [custom] | RS-232 (422, 485) [custom] | RS-232 (422, 485) [custom] | Digital I/O Lines | USB | Operating Temperature [Min] | Operating Temperature [Max] | Core Processor | Watchdog Timer | Storage Interface | Video Outputs | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [y] | Speed | Expansion Site/Bus | Power (Watts) | Ethernet | Number of Cores [custom] | Cooling Type | RAM Capacity/Installed | Form Factor |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Advantech Corporation | 6 | 6 | 6 | 16 | USB 2.0 (8) | 0 °C | 60 °C | Intel Atom N450 | CompactFlash Floppy SATA2 SPI Flash | LVDS VGA | 203.2 mm | 146.05 mm | 8 in | 5.75 " | 1.66 GHz | mPCIe PC/104-Plus PCI | 10.8 W | GbE | 1 | Heat Sink | 0 GB 2 GB | EBX | |
 Advantech Corporation | 6 | 6 | 6 | 16 | USB 2.0 (8) | 0 °C | 60 °C | Intel Atom N450 | CompactFlash Floppy SATA2 SPI Flash | LVDS VGA | 203.2 mm | 146.05 mm | 8 in | 5.75 " | 1.66 GHz | mPCIe PC/104-Plus PCI | 10.8 W | GbE | 1 | Heat Sink | 0 GB 2 GB | EBX | |
Advantech Corporation | 6 | 6 | 6 | 16 | USB 2.0 (8) | 0 °C | 60 °C | Intel Atom N450 | CompactFlash Floppy SATA2 SPI Flash | LVDS VGA | 203.2 mm | 146.05 mm | 8 in | 5.75 " | 1.66 GHz | mPCIe PC/104-Plus PCI | 10.8 W | GbE | 1 | Heat Sink | 0 GB 2 GB | EBX | |
 Advantech Corporation | 6 | 6 | 6 | 16 | USB 2.0 (8) | -20 ░C | 80 °C | Intel Atom N450 | CompactFlash Floppy SATA2 SPI Flash | LVDS VGA | 203.2 mm | 146.05 mm | 8 in | 5.75 " | 1.66 GHz | mPCIe PC/104-Plus PCI | 10.8 W | GbE | 1 | Heat Sink | 0 GB 2 GB | EBX | |
Advantech Corporation | 6 | 6 | 6 | 16 | USB 2.0 (8) | 0 °C | 60 °C | Intel Atom N450 | CompactFlash Floppy SATA2 SPI Flash | LVDS VGA | 203.2 mm | 146.05 mm | 8 in | 5.75 " | 1.66 GHz | mPCIe PC/104-Plus PCI | 10.8 W | GbE | 1 | Heat Sink | 0 GB 2 GB | EBX | |
Advantech Corporation | 6 | 6 | 6 | 16 | USB 2.0 (8) | -20 ░C | 80 °C | Intel Atom N450 | CompactFlash Floppy SATA2 SPI Flash | LVDS VGA | 203.2 mm | 146.05 mm | 8 in | 5.75 " | 1.66 GHz | mPCIe PC/104-Plus PCI | 10.8 W | GbE | 1 | Heat Sink | 0 GB 2 GB | EBX |
