LP2951_XFCS Series

LDO Regulator, 100 mA, with Error Flag Outputs

Catalog

LDO Regulator, 100 mA, with Error Flag Outputs

Part	Number of Regulators	Output Type	Current - Output	Current - Quiescent (Iq)	Output Configuration	Voltage - Input (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Voltage Dropout (Max) [Max]	Protection Features	Package / Case	Package / Case [custom]	Package / Case	Supplier Device Package	Current - Supply (Max) [Max]	Voltage - Output (Min/Fixed)	Package / Case	Package / Case [y]	Package / Case [x]	Output Type	Voltage - Output (Min/Fixed) [Min]	Voltage - Output (Min/Fixed)	Voltage - Output (Max) [Max]

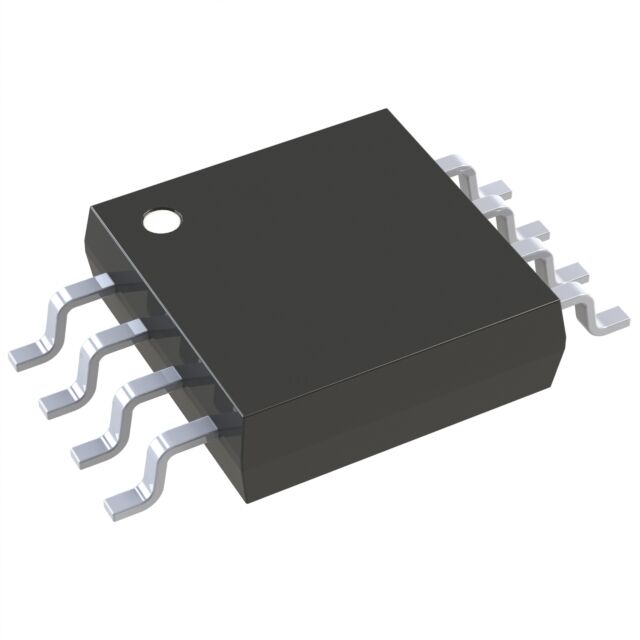

ON Semiconductor LP2951ACDM-3.0R2	1	1.81 mOhm	100 mA	120 µA	Positive	30 V	Surface Mount	125 °C	-40 °C	0.45 V	Over Current Over Temperature	8-MSOP 8-TSSOP	0.118 in	3 mm	8-MSOP	12 mA
ON Semiconductor LP2951CN-3.3G	1	1.81 mOhm	100 mA	120 µA	Positive	30 V	Through Hole	125 °C	-40 °C	0.45 V	Over Current Over Temperature	8-DIP		0.3 in	8-PDIP	12 mA	3.3 V	7.62 mm
ON Semiconductor LP2951ACD-3.3R2	1	1.81 mOhm	100 mA	120 µA	Positive	30 V	Surface Mount	125 °C	-40 °C	0.45 V	Over Current Over Temperature	8-SOIC			8-SOIC	12 mA	3.3 V		3.9 mm	0.154 in
ON Semiconductor LP2951ACD-3.0G	1	1.81 mOhm	100 mA	120 µA	Positive	30 V	Surface Mount	125 °C	-40 °C	0.45 V	Over Current Over Temperature	8-SOIC			8-SOIC	12 mA			3.9 mm	0.154 in
ON Semiconductor LP2951ACDM-3.3RG	1	1.81 mOhm	100 mA	120 µA	Positive	30 V	Surface Mount	125 °C	-40 °C	0.45 V	Over Current Over Temperature	8-MSOP 8-TSSOP	0.118 in	3 mm	8-MSOP	12 mA	3.3 V
ON Semiconductor LP2951CDR2G	1		100 mA	120 µA	Positive	30 V	Surface Mount	125 °C	-40 °C	0.45 V	Over Current Over Temperature	8-SOIC			8-SOIC	12 mA			3.9 mm	0.154 in	Adjustable (Fixed)	1.235 V	5 V	30 V
ON Semiconductor LP2951CD-3.0	1	1.81 mOhm	100 mA	120 µA	Positive	30 V	Surface Mount	125 °C	-40 °C	0.45 V	Over Current Over Temperature	8-SOIC			8-SOIC	12 mA			3.9 mm	0.154 in
ON Semiconductor LP2951CDM-3.3R2	1	1.81 mOhm	100 mA	120 µA	Positive	30 V	Surface Mount	125 °C	-40 °C	0.45 V	Over Current Over Temperature	8-MSOP 8-TSSOP	0.118 in	3 mm	8-MSOP	12 mA	3.3 V
ON Semiconductor LP2951ACDMR2	1		100 mA	120 µA	Positive	30 V	Surface Mount	125 °C	-40 °C	0.45 V	Over Current Over Temperature	8-MSOP 8-TSSOP	0.118 in	3 mm	8-MSOP	12 mA					Adjustable (Fixed)	1.235 V	5 V	30 V
ON Semiconductor LP2951CN-3.0	1	1.81 mOhm	100 mA	120 µA	Positive	30 V	Through Hole	125 °C	-40 °C	0.45 V	Over Current Over Temperature	8-DIP		0.3 in	8-PDIP	12 mA		7.62 mm
