DNF18 Series

Catalog

QUICK DISCONNECT TERMINAL 18-22AWG BRASS RED F 17.5MM TIN BOTTLE

Part	Length - Overall	Length - Overall [x]	Wire Gauge [Max]	Wire Gauge [Min]	Contact Finish	Terminal Type	Insulation	Contact Material	Tab Width	Tab Width	Tab Thickness	Tab Thickness	Color	Gender	Mounting Type	Features	Termination	Length - Overall [x]	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Length - Overall	Tab Width
Panduit Corp DNF18-111-C	17.53 mm	0.69 in	22 AWG	17.5 AWG	Tin	Standard	Non-Mating End Insulated	Brass	2.79 mm	0.11 "	0.02 "	0.51 mm	Red	Female	Free Hanging (In-Line)	Serrated Termination	Crimp

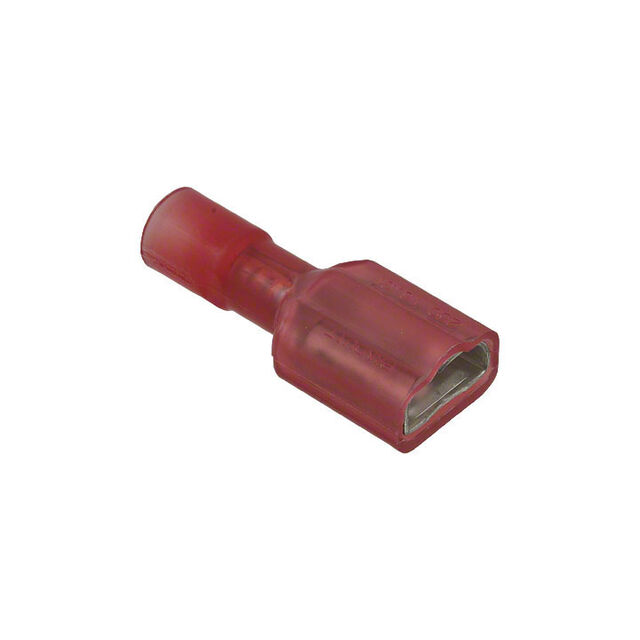

Panduit Corp DNF18-188FIB-C		0.78 in	22 AWG	17.5 AWG	Tin	Standard	Fully Insulated	Brass	4.75 mm	0.187 in	0.02 "	0.51 mm	Red	Female	Free Hanging (In-Line)	Serrated Termination	Crimp	19.81 mm	3.45 mm	0.136 in

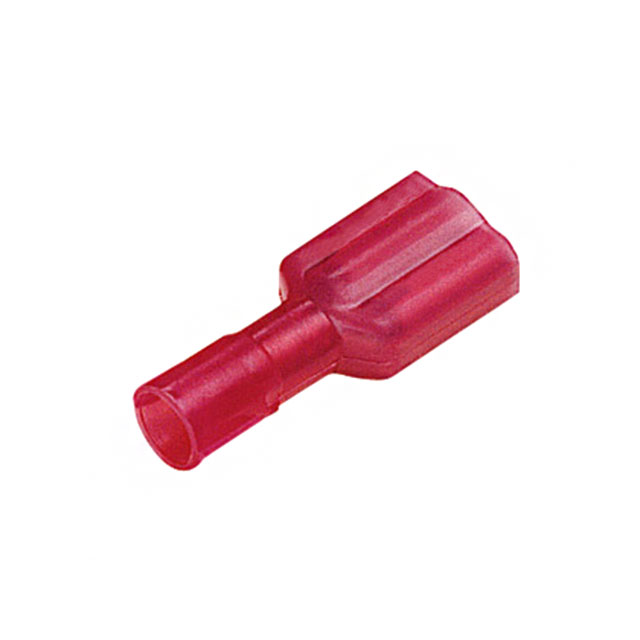

Panduit Corp DNF18-188FIB-3K		0.78 in	22 AWG	17.5 AWG	Tin	Standard	Fully Insulated	Brass	4.75 mm	0.187 in	0.02 "	0.51 mm	Red	Female	Free Hanging (In-Line)	Butted Seam	Crimp	19.81 mm	3.45 mm	0.136 in

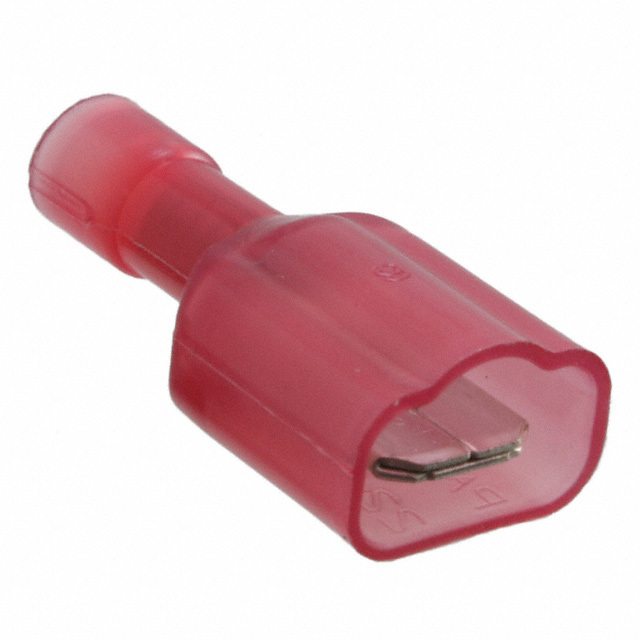

Panduit Corp DNF18-250FIMB-L		0.91 "	22 AWG	17.5 AWG	Nickel	Standard	Fully Insulated	Brass	6.35 mm	0.25 in	0.032 in	0.81 mm	Red	Male	Free Hanging (In-Line)	Serrated Termination	Crimp	23.11 mm	3.45 mm	0.136 in
Panduit Corp DNF18-111FIB-M	18.03 mm		22 AWG	17.5 AWG	Tin	Standard	Fully Insulated	Brass	2.79 mm	0.11 "	0.02 "	0.51 mm	Red	Female	Free Hanging (In-Line)	Serrated Termination	Crimp		3.05 mm	0.12 in	0.71 "

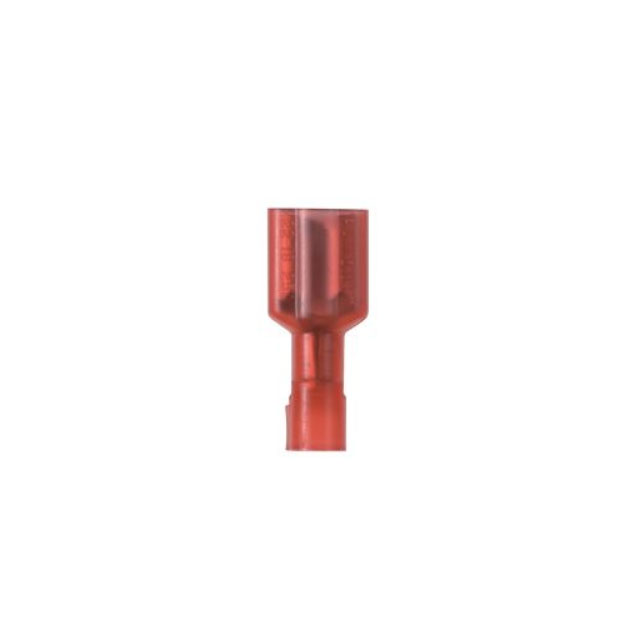

Panduit Corp DNF18-250FI-L		0.94 in	22 AWG	17.5 AWG	Tin	Standard	Fully Insulated	Brass	6.35 mm	0.25 in	0.032 in	0.81 mm	Red	Female	Free Hanging (In-Line)		Crimp	23.88 mm	3.56 mm	0.14 in

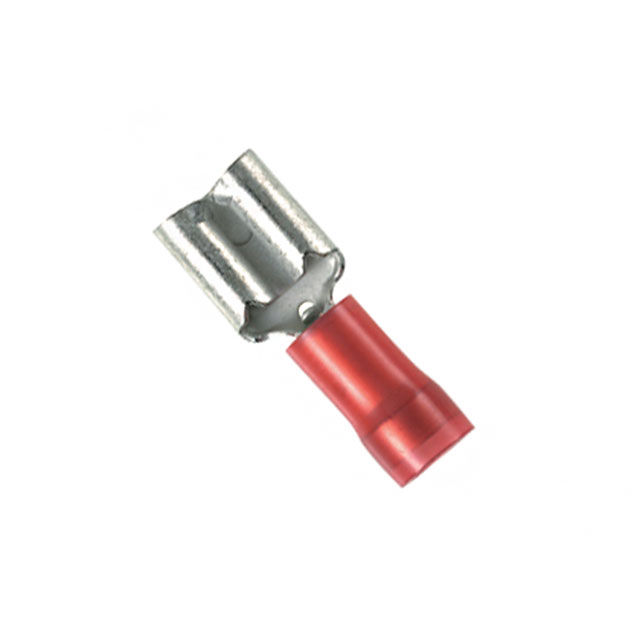

Panduit Corp DNF18-110-M	17.53 mm	0.69 in	22 AWG	17.5 AWG	Tin	Standard	Non-Mating End Insulated	Brass	2.79 mm	0.11 "	0.032 in	0.81 mm	Red	Female	Free Hanging (In-Line)	Serrated Termination	Crimp

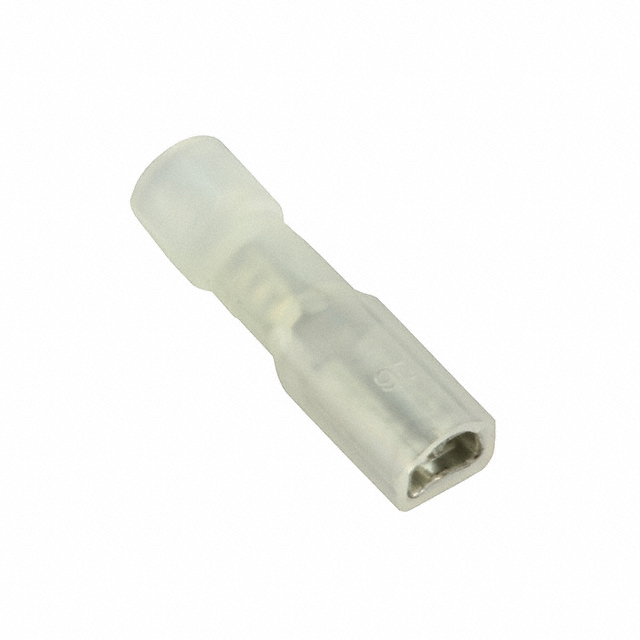

Panduit Corp DNF18-112FIB-3K	18.03 mm		22 AWG	17.5 AWG	Tin	Standard	Fully Insulated	Brass	2.79 mm	0.11 "	0.01 in	0.25 mm	Natural	Female	Free Hanging (In-Line)	Butted Seam	Crimp		3.05 mm	0.12 in	0.71 "

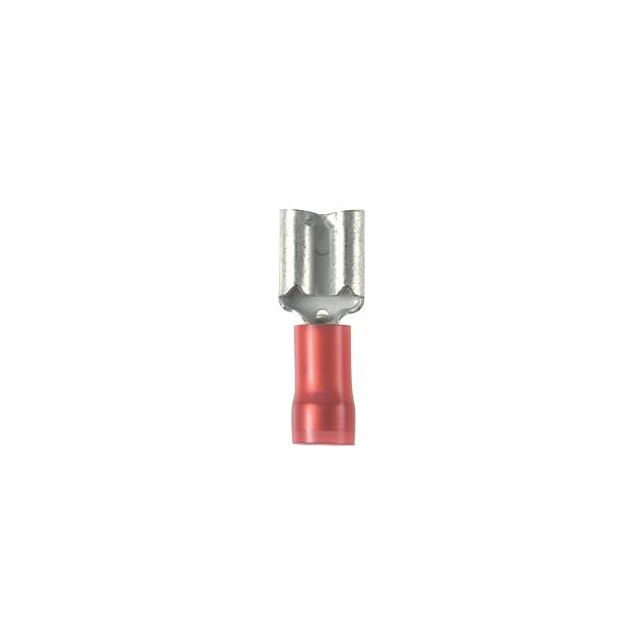

Panduit Corp DNF18-205-M		0.76 in	22 AWG	17.5 AWG	Tin	Standard	Non-Mating End Insulated	Brass	0.187 in 4.75 mm		0.032 in	0.81 mm	Red	Female	Free Hanging (In-Line)	Serrated Termination	Crimp	19.3 mm	3.48 mm	0.137 in		0.205 in 5.21 mm
Panduit Corp DNF18-206FIB-3K		0.78 in	22 AWG	17.5 AWG	Tin	Standard	Fully Insulated	Brass	0.187 in 4.75 mm		0.02 "	0.51 mm	Red	Female	Free Hanging (In-Line)	Butted Seam	Crimp	19.81 mm	3.45 mm	0.136 in		0.205 in 5.21 mm
